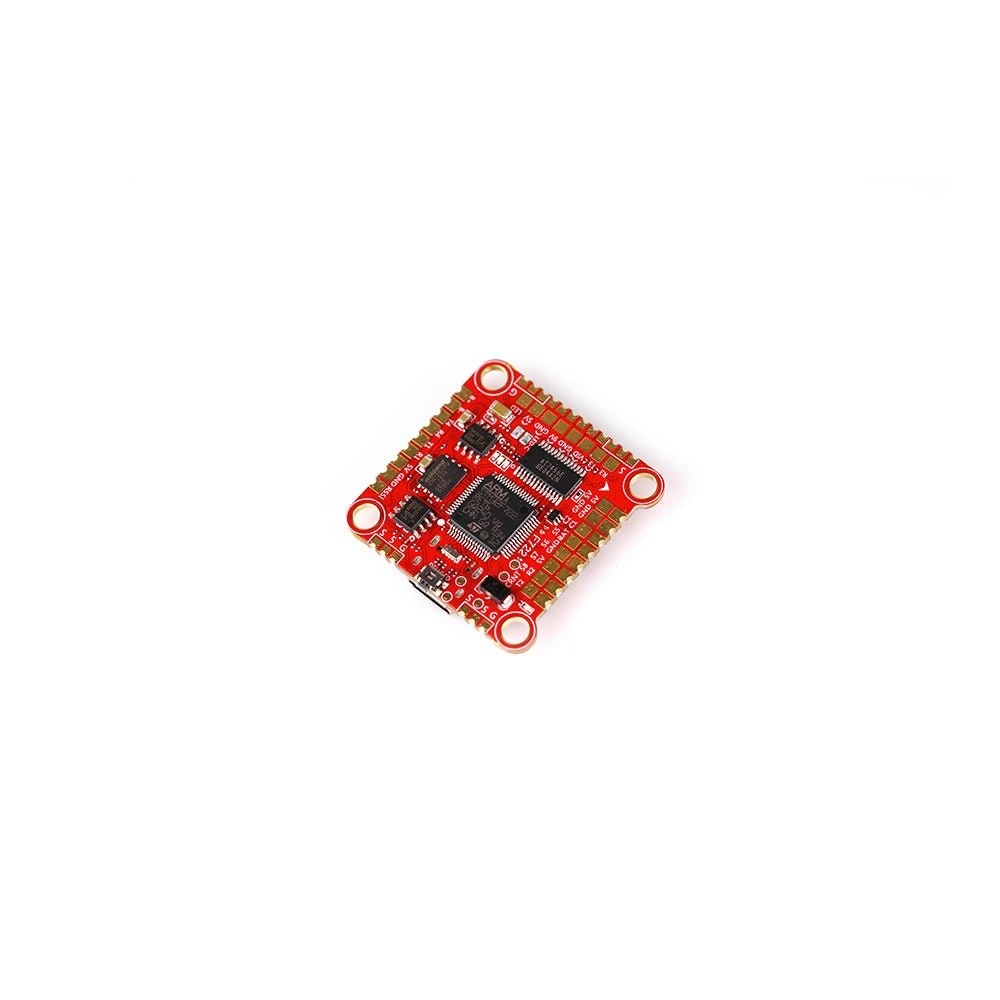

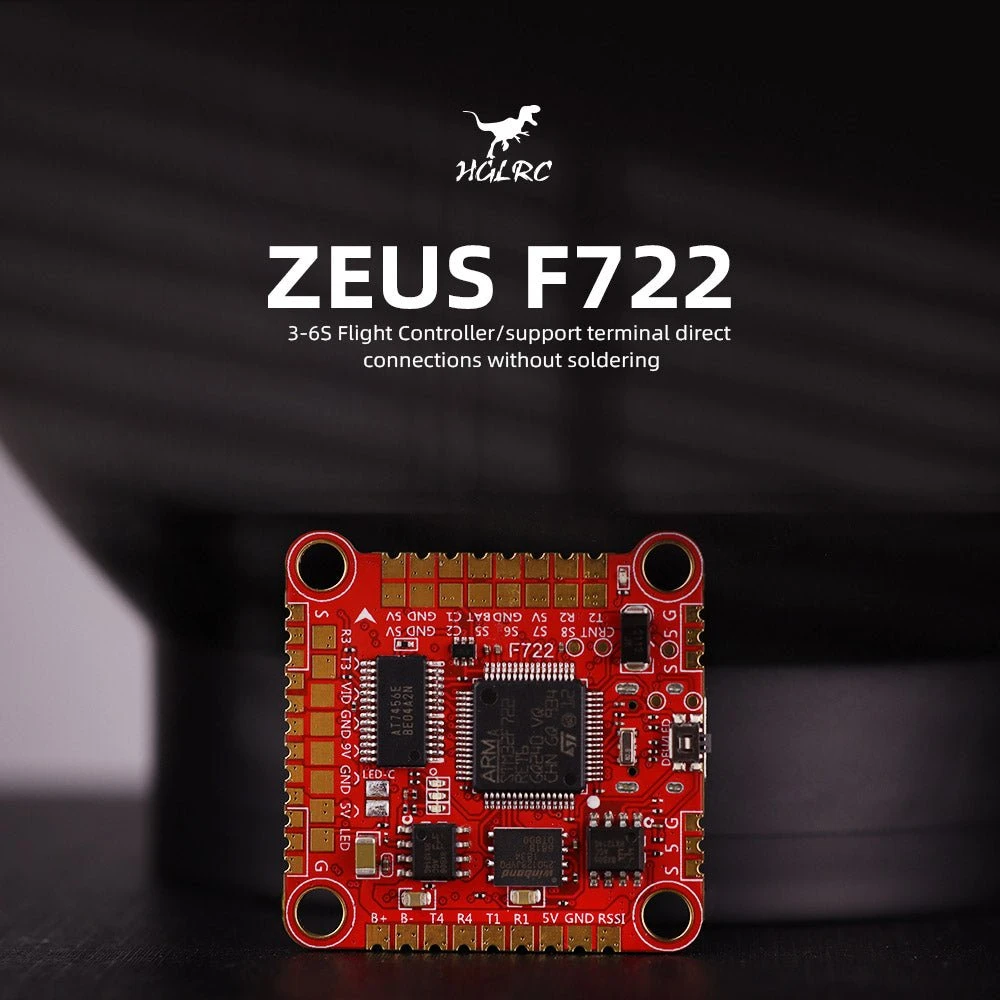

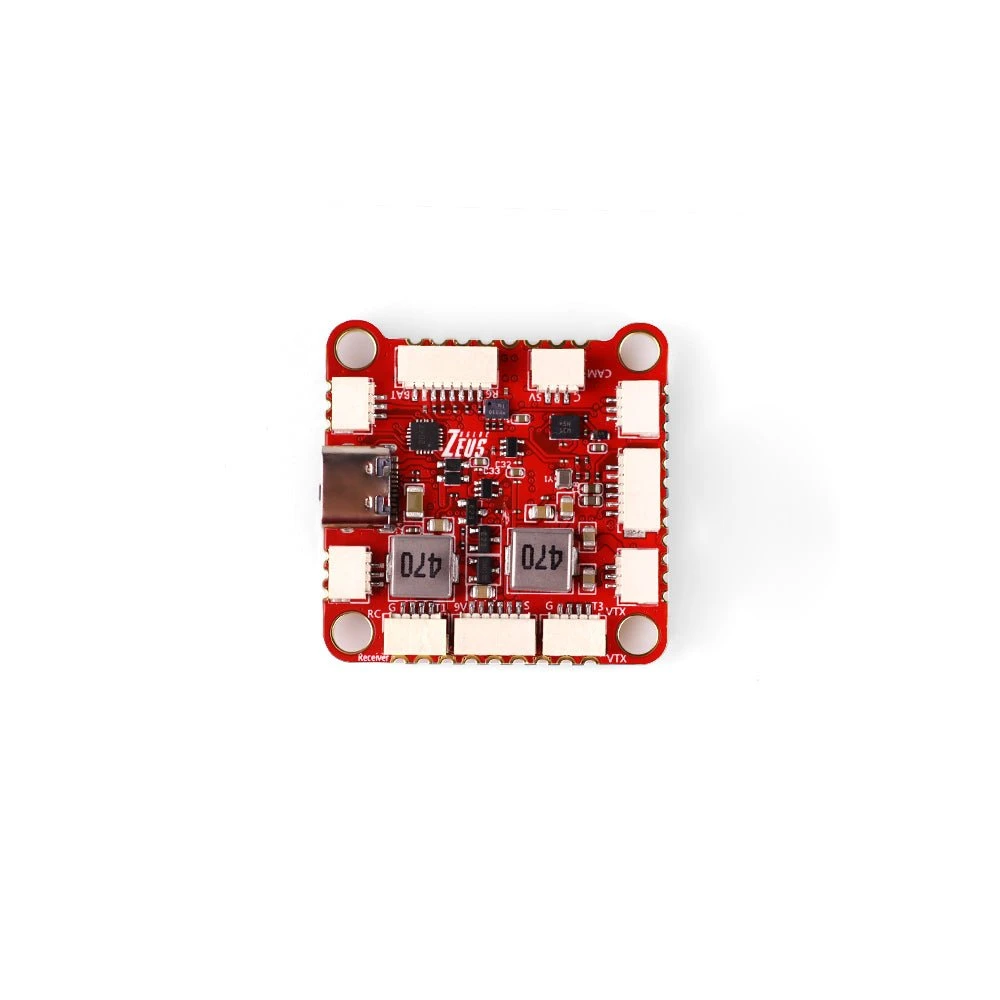

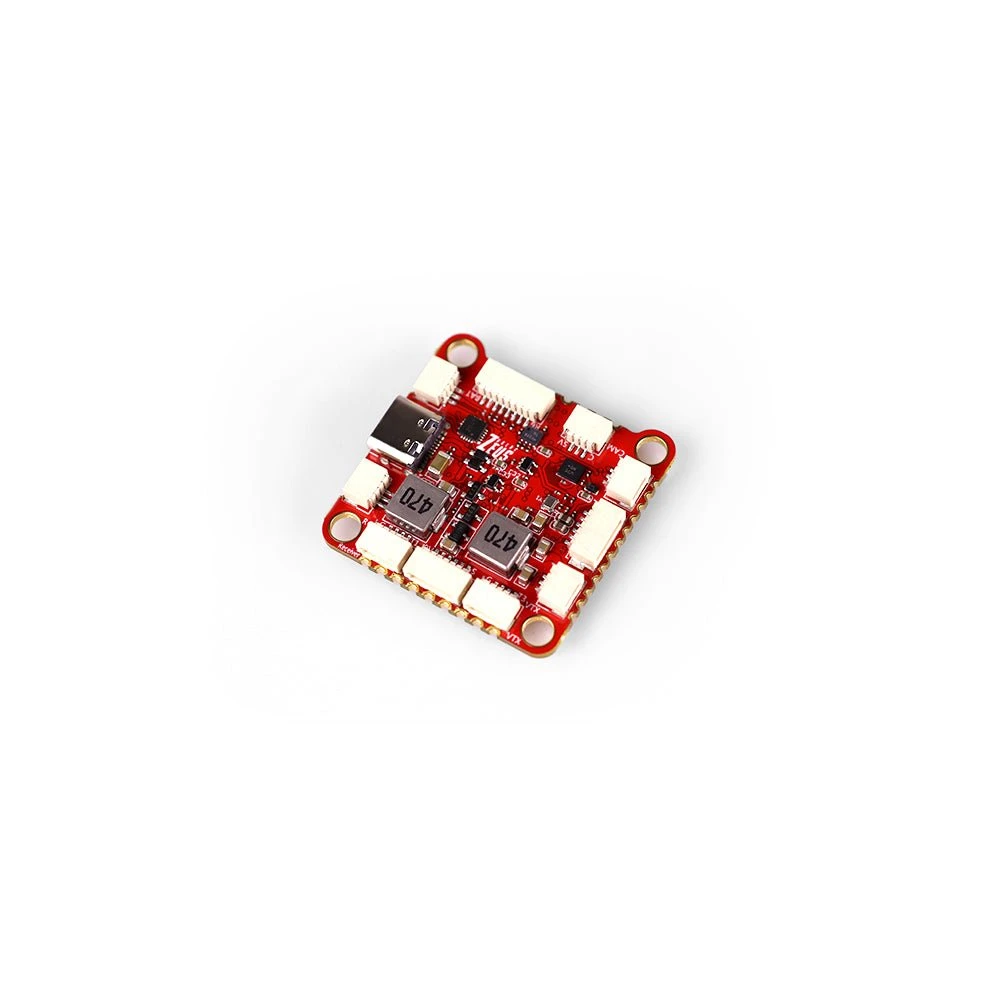

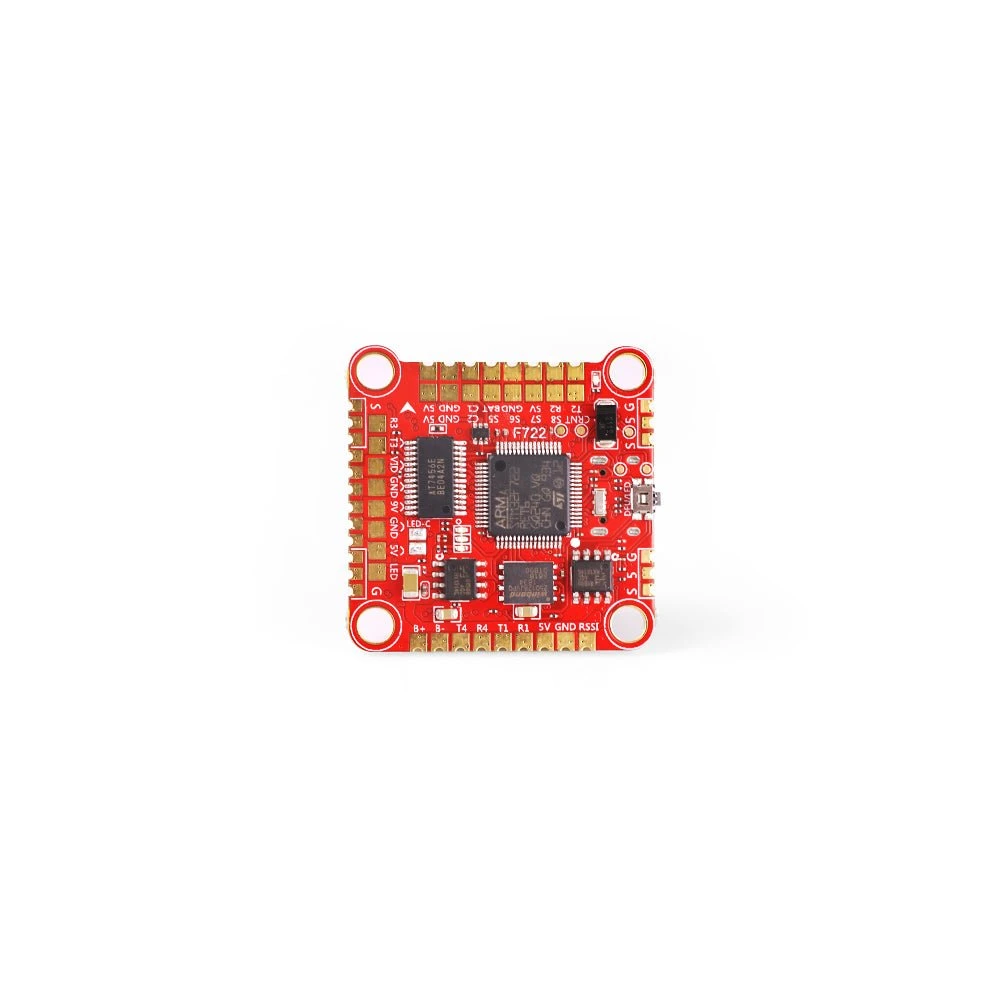

Zeus F722 HD 3-6S 30×30 Flight Controller

The Zeus F722 FC supports Betaflight, Emuflight, and iNav. Plus Plug & Play ports for DJI Air Unit, GPS and LEDs!

Product Features:
1.Direct connections supported for camera, receiver, analog VTX/DJI Air unit/Vista, LED and GPS, no need soldering
2.Built-in switch to control 9V BEC by modes
3.Integrated LED controller for quick programming of LEDs with the button
4.Integrated 16M Blackbox to record flight data
5.Maximum BEC output 9V/1.5A and 5V/2A

• Usage: 100mm-450mm Frame Kit
• FC Firmware: BF HGLRCF722(HGLR)
• Installing Hole: 30.5X30.5mm.M3

• Brand Name: HGLRC
• Product name: Zeus F722
• FC Firmware: HGLRCF722
• CPU: STM32F722 RET6
• MPU: BMI270
• BEC Output: 9V/1.5A,5V/2A
• Input voltage: 3-6S Lipo
• UARTS: 5
• OSD: Support
• BlackBox: 16M
• Built-in Current Sensor
• Installing Hole: 30X30mm.M3(Looking for 20x20mm version? get it

  here

  )

• Size: 37.3×37.3mm

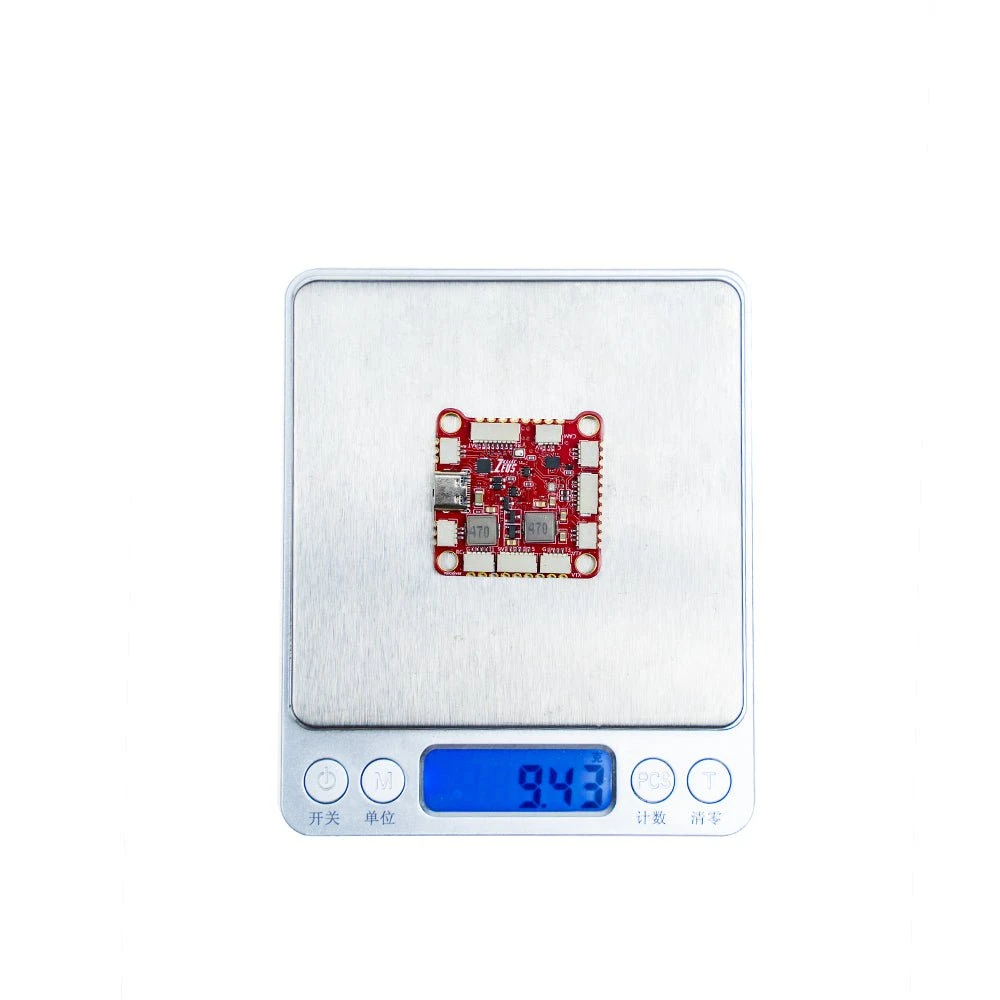

• Weight:9.43g

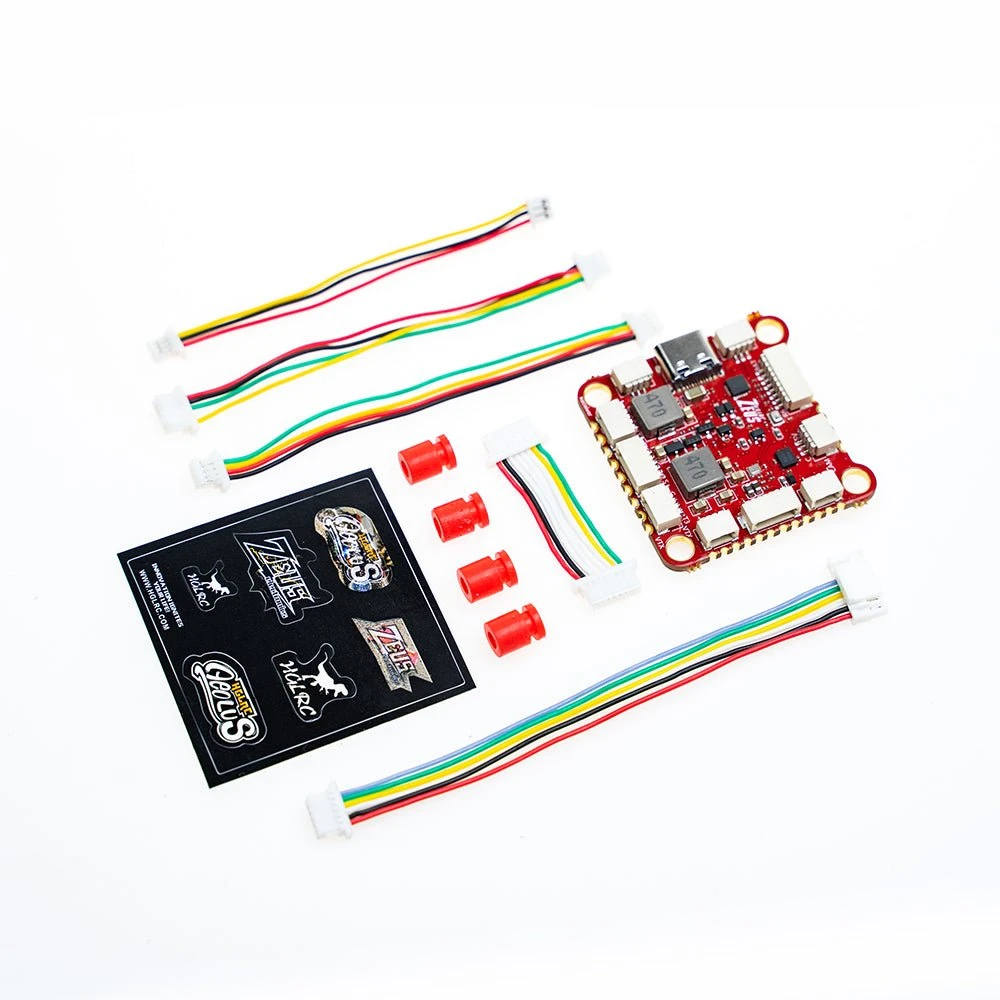

Package Includes:
1x Zeus F722 flight controller
1x Accessory pack

See manual here:

F722 flight controller
