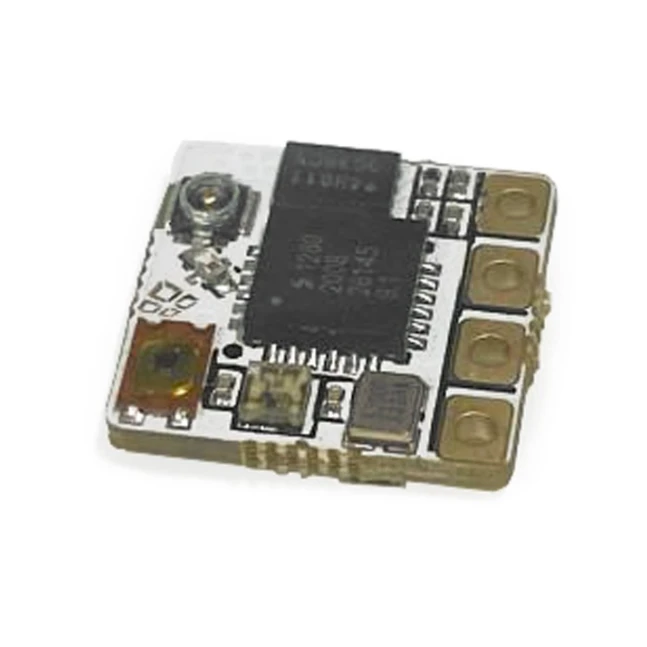

Zepto 2.4GHz Receiver For Ghost Protocol

The ImmersionRC Ghost Zepto is the smallest and lightest 2.4GHz receiver in the market. Comes with an Over-the-air (OTA) upgradeable firmware, SBus, SBus-Fast (200k), SRXL-2 (400k), GHST, SBus Inverted serial formats, and other specs!

Specifications

• Frequency Range: 2406 – 2479MHz
• Modulation: Chirp Spread Spectrum + Adaptive FHSS
• Binding: Bidirectional with confirmation and protocol negotiation
• RF Profiles: Race, Pure Race, ‘Normal’, and Long Range, more to come
• Downlink RF Power: +13dBm
• Sensitivity: -117dBm in Long Range mode
• Serial Formats: SBus, SBus-Fast (200k), SRXL-2 (400k), GHST, SBus Inverted
• Firmware: Over-the-air (OTA) upgradable
• Power Supply: 5V recommended, as low as 3.6V tolerated, no more than 5.5V
• VTX Control: Tramp control from ‘T’ pin on Rx, regardless of the selected serial format
• Antenna Connector: Standard MHF4 (vs. Atto which uses the larger U.FL)
• Dimensions: 10.0mm x 10.0mm, 0.38g (w/o antenna)
• Rx Noise Floor Analysis: Auto on power-up, or on-demand from the T
• Dimensions: 10mm x 10mm, 0.35g (w/o antenna)

Includes

• 1 x ImmersionRC Ghost Zepto 2.4GHz Receiver
• 1 x Micro qTee Antenna w/50mm cable
• Silicone Cables & heat shirnk

For the latest firmware and or manuals please click

here
