Ultimate Hybrid 10mW-1500mW Analog VTX With 2.4GHz Receiver For Ghost Protocol
Original price was: $69.00.$48.30Current price is: $48.30.
- Free 1 year warranty period
- Your happiness, our mission.
- Protect Your Wallet with Safe Payments
- Shop with Zero Worries

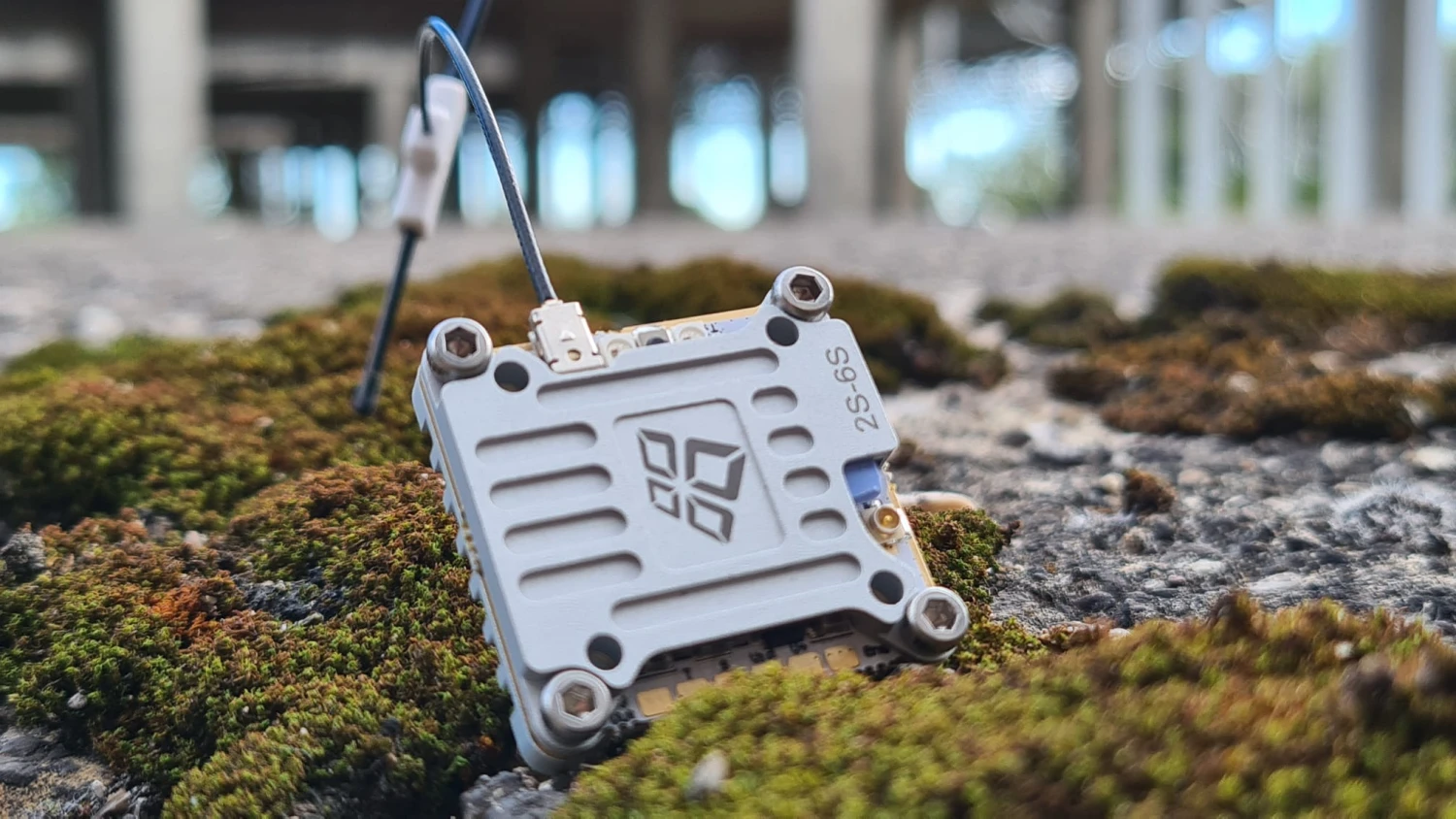

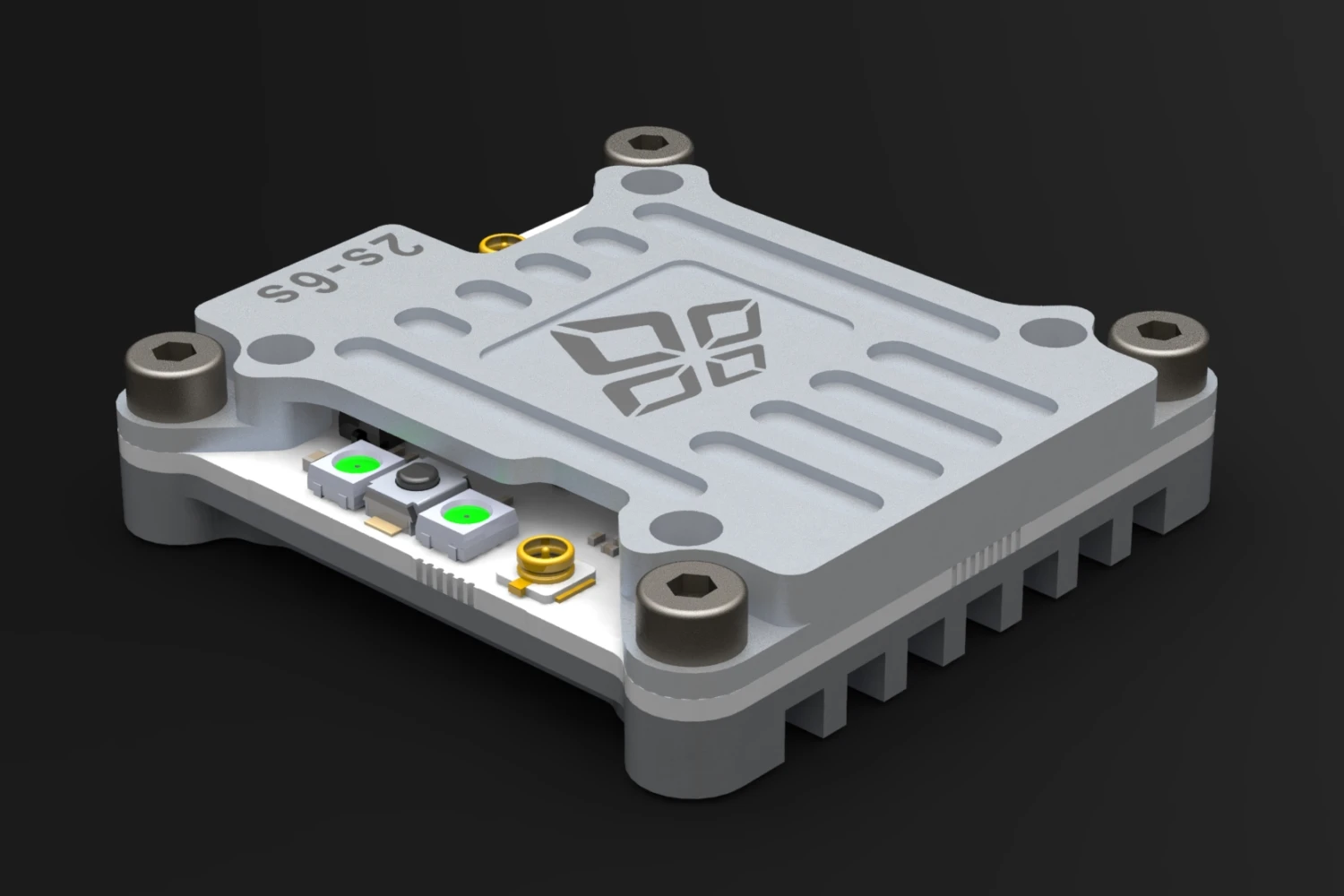

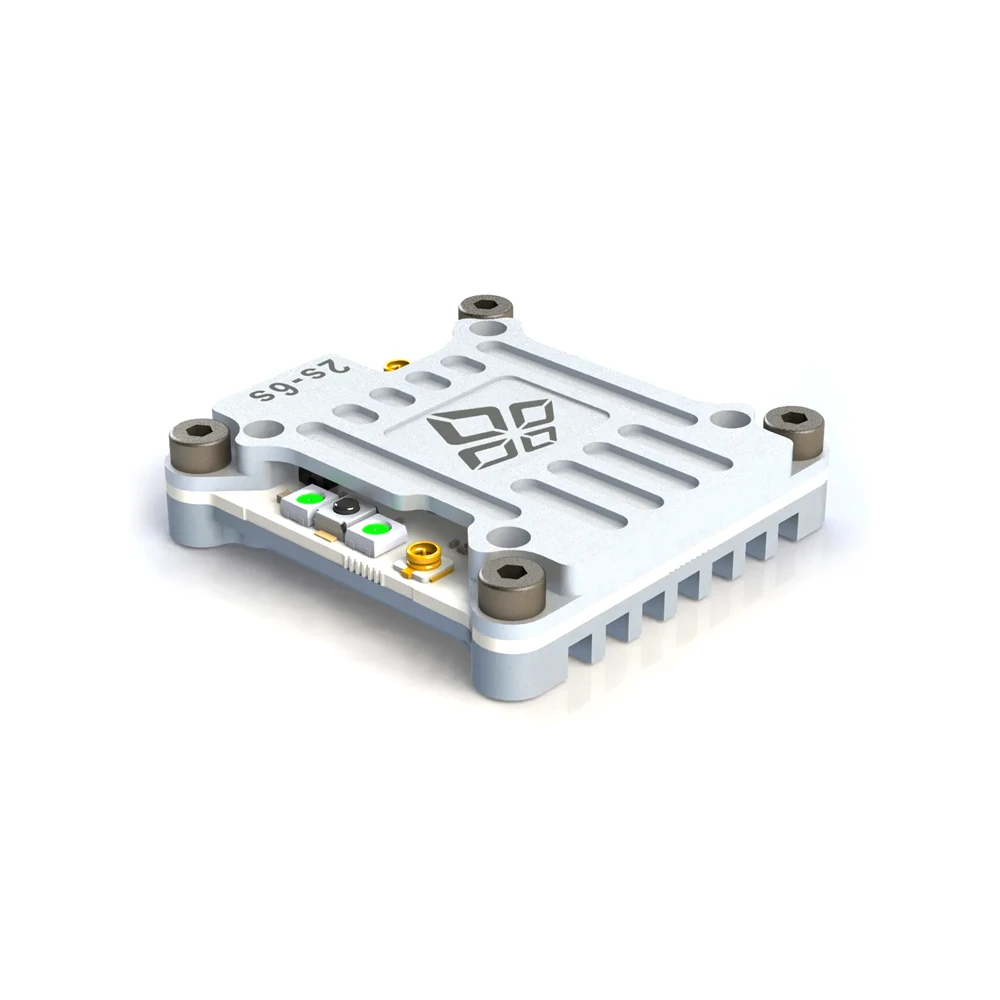

The Ultimate Hybrid takes the innovative Ghost Hybrid concept to a new level, with the traditional long range/low latency Ghost uplink, and a high power Tramp video transmitter, packaged in a beautiful anodized heatsink.
Designed by pilots, built by pilots, supported by pilots.

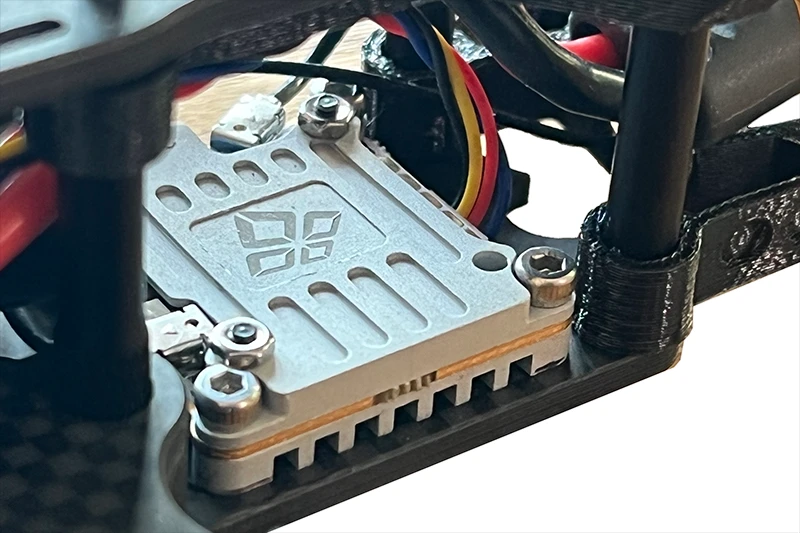

- Standard mounting pattern for digital vTx’s (Caddx Vista™)
- 2s-6s HV operation, no need for a 5V supply
- 5.8GHz 10-1500mW Video Transmitter *
- Onboard Ghost Uno Receiver
- Only 10.3g with heatsink, 3.1g without
- Long range AND low latency
- 500Hz updates *
- 2.4GHz LoRa and FLRC Control
- All 48 Standard Channels
- Thermally regulated, Factory calibrated
* 1kHz ready for when OpenTx can supply quality data at this rate
* Available vTx channels and power may vary from region to region to comply with local regulations
EU units limited to 25mW, US units limited to 1000mW
Specifications
- Downlink RF Power: +13dBm
- vTx Transmit Power: +25mW (EU), 1W (USA), 1.5W (Intl)
- Sensitivity: -117dBm in Long Range mode
- Serial Formats: GHST, SBus, SBus-Fast (200k) , SRXL-2 (400k), SBus Inverted
- Firmware: Over-the-air (OTA) upgradable (Rx and VTx)
- Power Supply: 2s-6s HV
- vTx Control: Automatic, via Ghost
- Antenna Connectors: Standard U.FL with Locking Connectors
- Dimensions: 31mm x 30mm x 7mm
Includes
- 1x Ghost Ultimate Hybrid
- 1x qTee Antenna
- U.FL to SMA, Wire Harness
