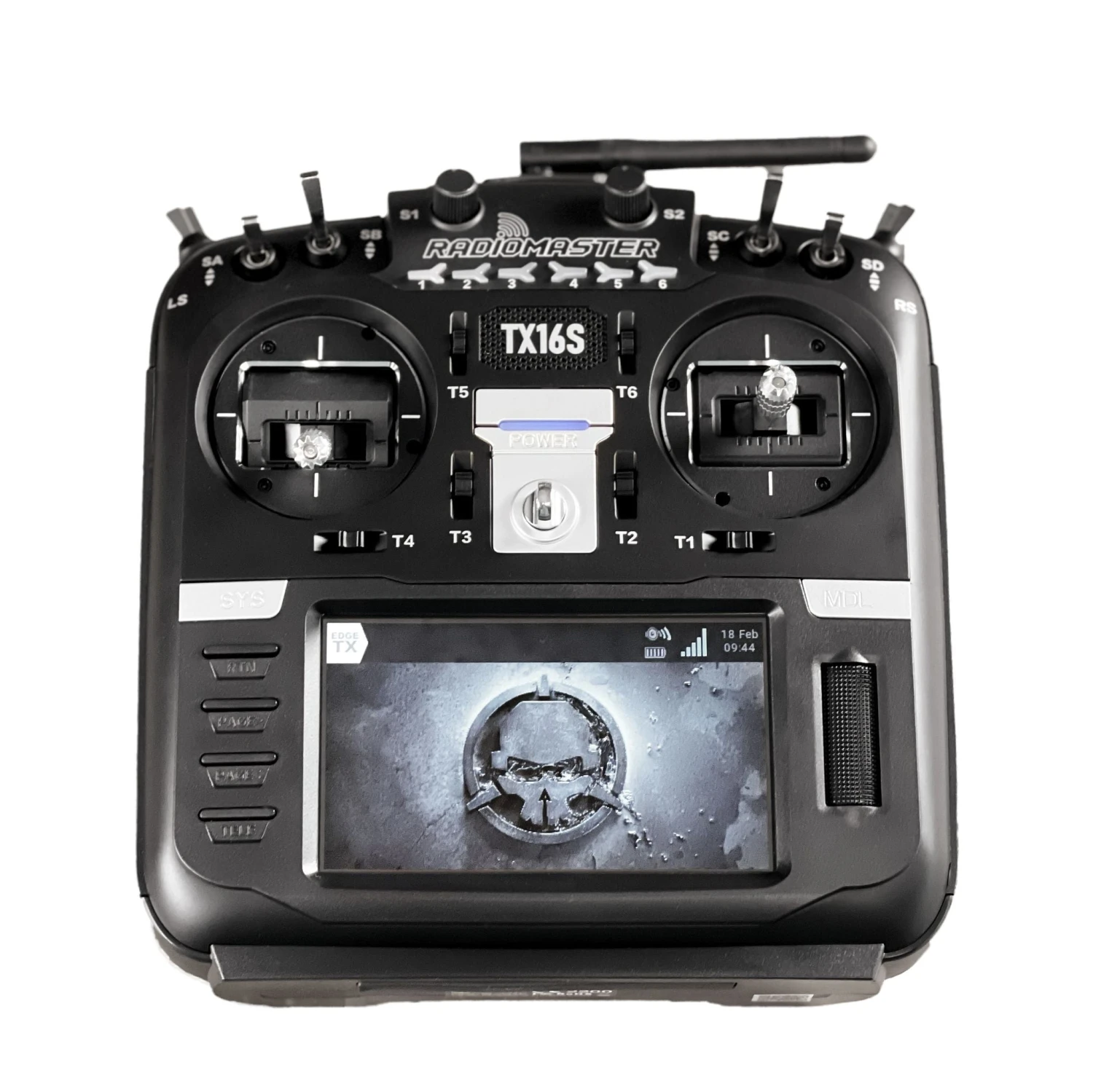

TX16S MKII Radio Controller With 4in1 Module – Rotor Riot Edition

The best just got better! Introducing the TX16S Mark II, the ultimate open-source radio. Coming with EdgeTX by default, this controller also supports OpenTX software.

Need Batteries? Check out the

Panasonic 3350mAh 18650 Batteries

 (requires 2)

Features

• Custom Rotor Riot splash screen
• Built-in USB-C Charging
• USB-C Data/simulator port
• External SD card slot (SD card included)
• Two external UART ports for updates and DIY
• Improved menu navigation with Page back and forward
• Better housing design with improved grip ergonomics
• Better switch quality and placement design
• Better sliders with good center feedback
• Full-Size HALL gimbal with CNC Aluminum plate
• Official OpenTX support
• Built-in Multi-protocol module
• Improved speaker circuit (no buzzing noise)

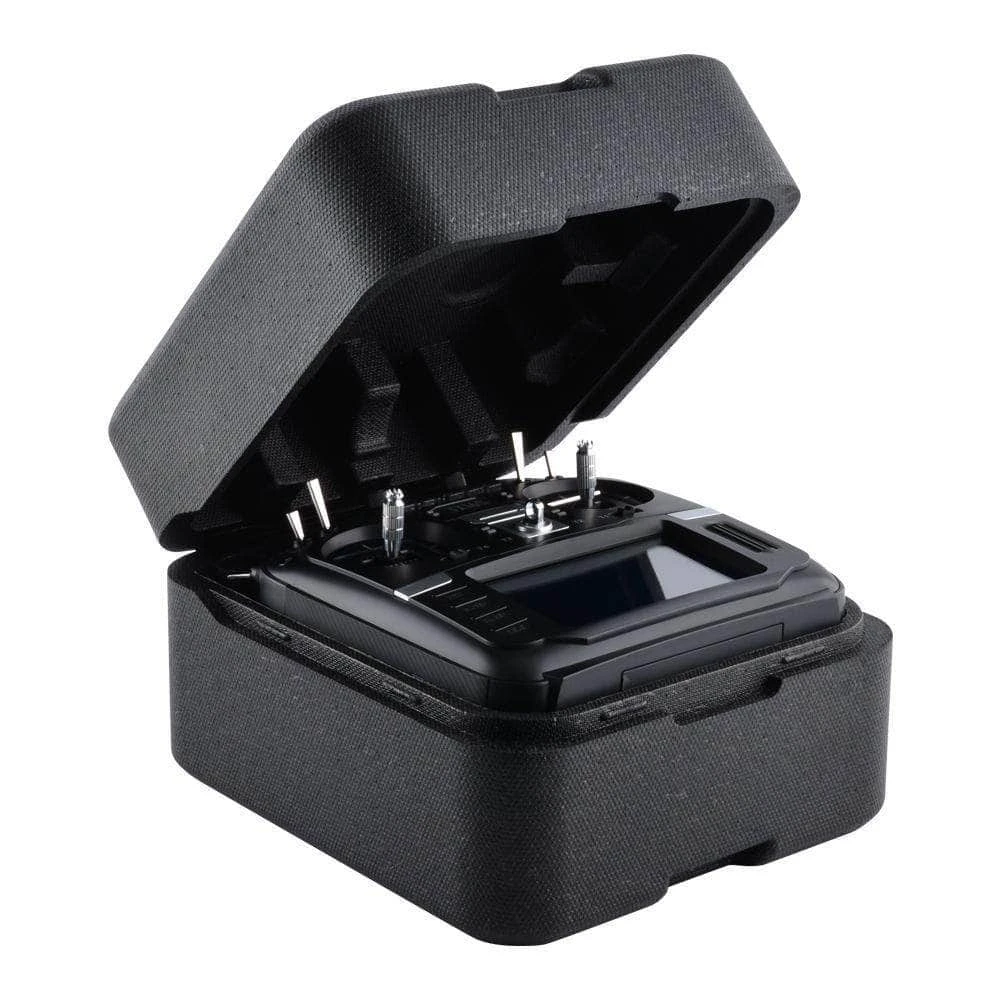

• Included EPP carry box
• Internal Multi-protocol RF System Cypress Semiconductor CYRF6936: DSM/DSMX, Walkera Devo Texas Instruments CC2500: FrSky, Futaba SFHSS Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN and most other Chinese models

Specifications

• Size: 287x129x184mm
• Weight: 750g (without battery)
• Transmission frequency: 2.400GHz-2.480GHz
• Transmitter module:  Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401)
• Transmitting power: Max 100mw (protocol dependent)
• SD card: 256MB by default, 8GB maximum
• Antenna gain: 2db (transmit power adjustable)
• Working current: 400mA
• Working voltage: 6.6-8.4v DC
• Remote control distance:> 2km @ 22dbm
• Radio firmware: EdgeTX
• Module Firmware: Multiprotocol- Module (4IN1)
• Channels: Up to 16 channels (depending on the receiver)
• Display: 4.3-inch TFT full-color touch display with a resolution of 480×272
• Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia;  Option 2: AG01 CNC Hall sensor
• Module Bay: JR compatible module bay
• Upgrade method: Supports USB-C online / SD card offline upgrade

Includes

• 1x TX16S MK2 Radio Controller with 4in1 Module with Rotor Riot Splash Screen
