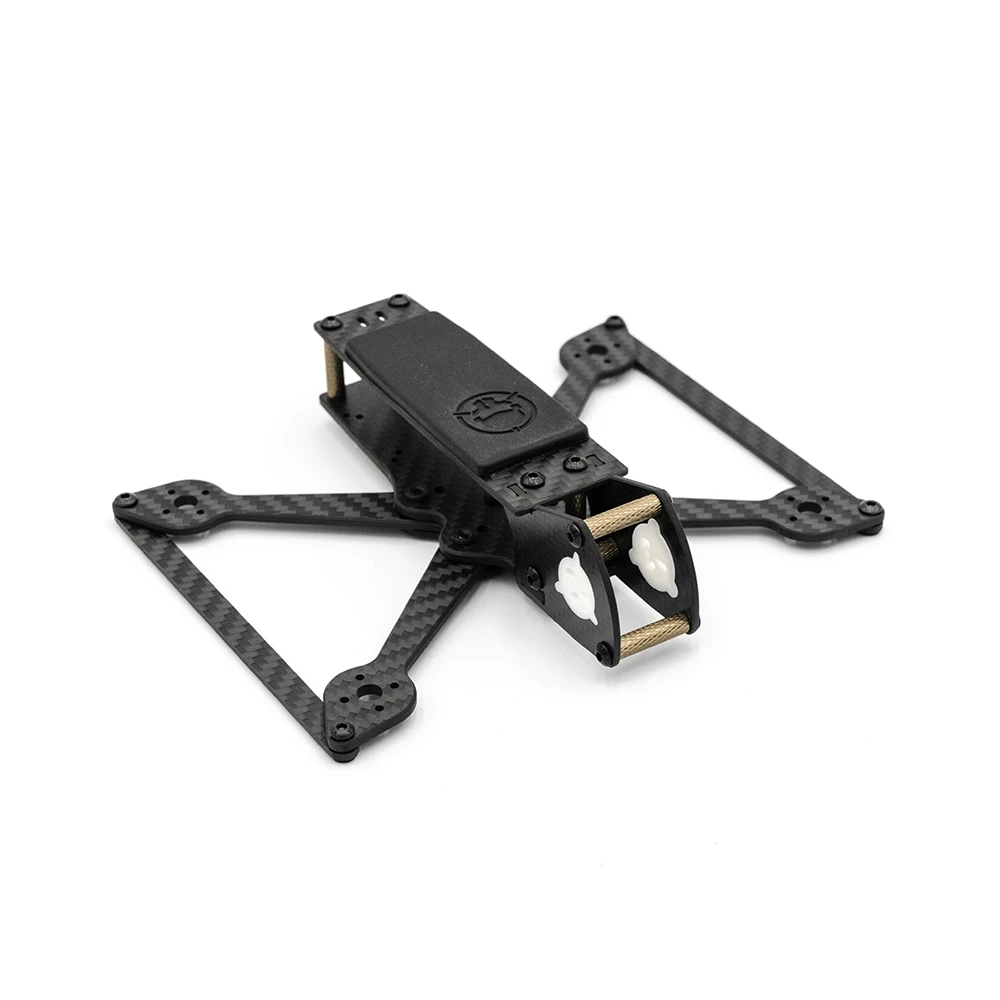

SkyLite 3-3.5″ Frame By Le Drib

The

Skyeliner

‘s little brother!

The SkyLite Frame supports up to 3.5″ props, can be flown with or without ducts, and features individual arms that allow for better resonance, tuning, and easier repairs. It’s easy to install and remove ducts! Fly it outdoors without ducts for an extremely durable freestyle kwad, or fly it indoors with ducts for an agile cinematic drone on par with The Cinewhoop!

Don’t forget to grab some

3D prints.

 We also have this frame fully built both

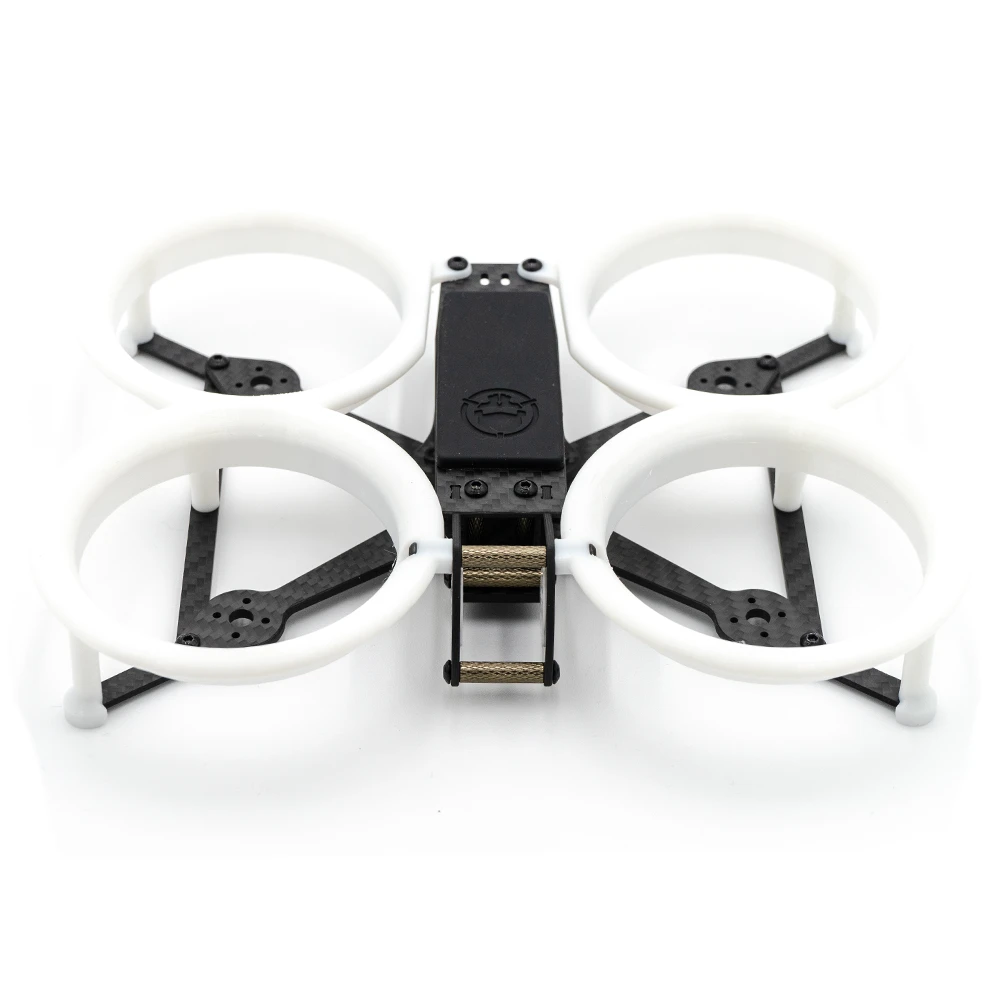

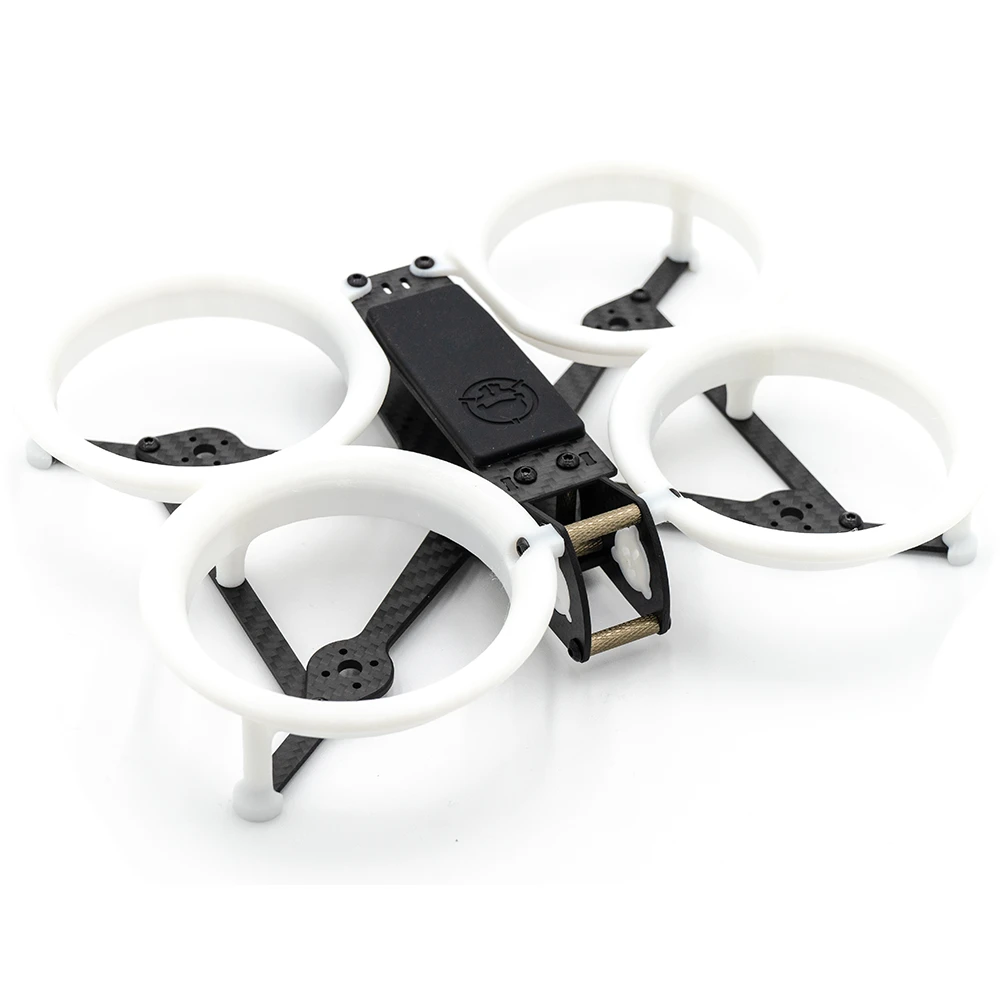

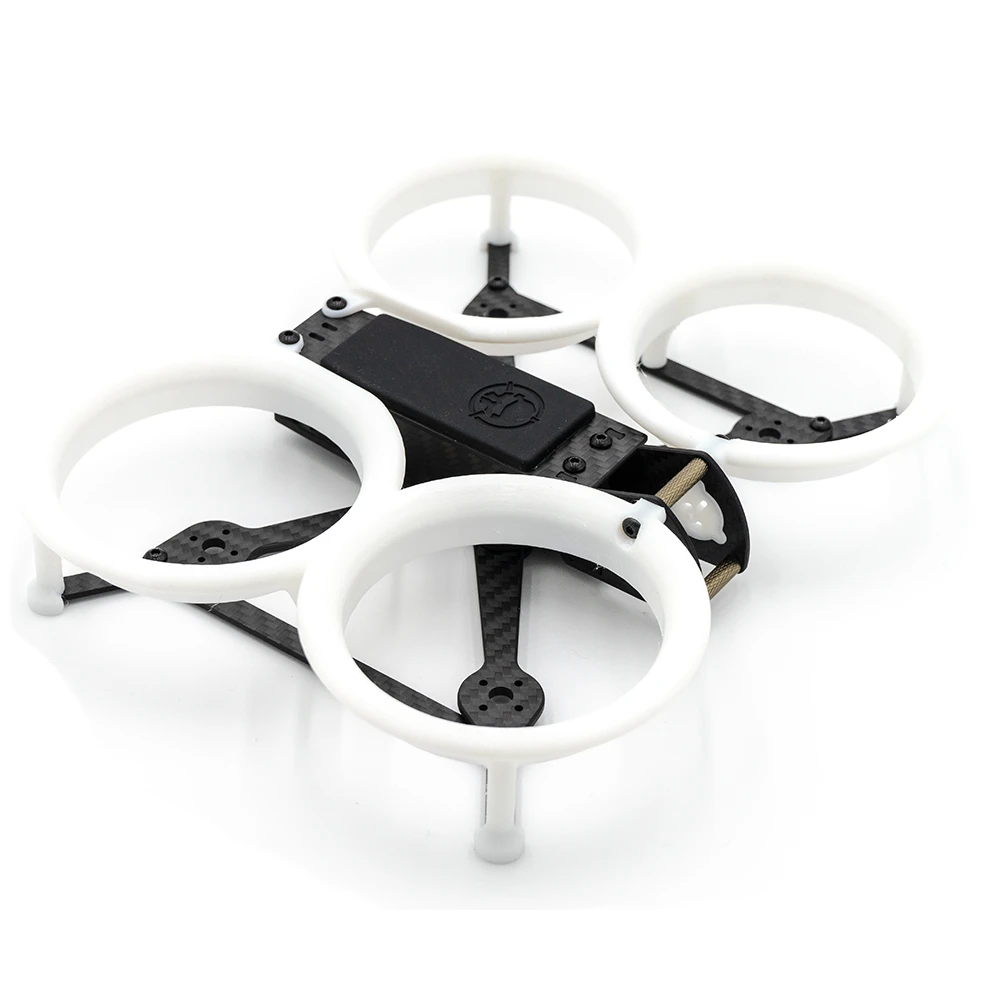

ducted

and

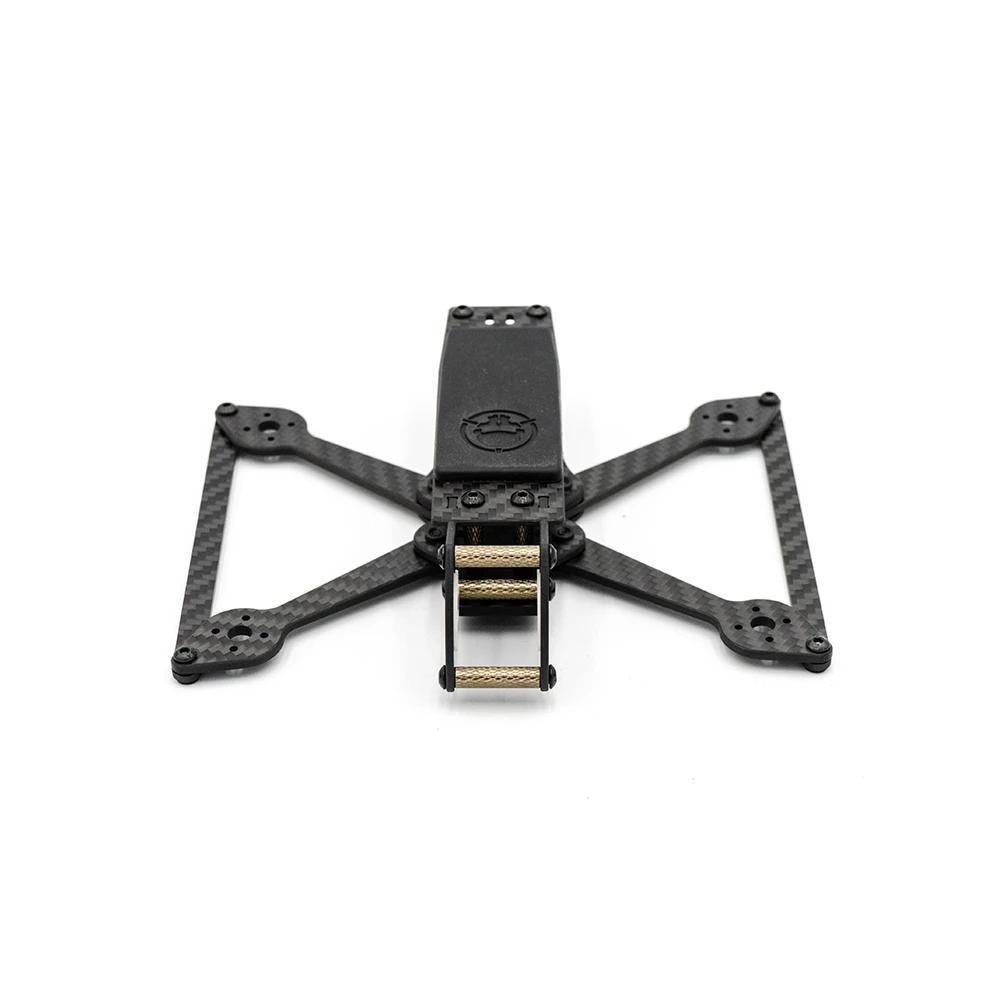

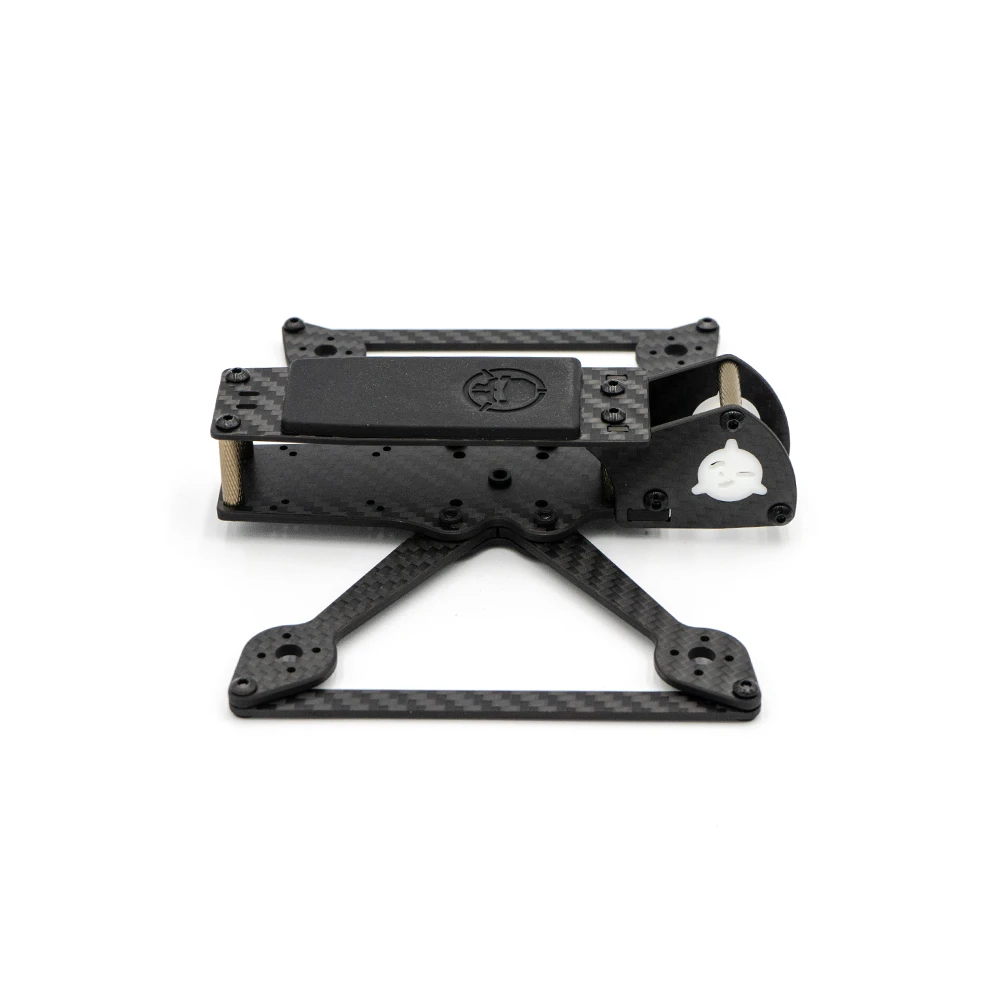

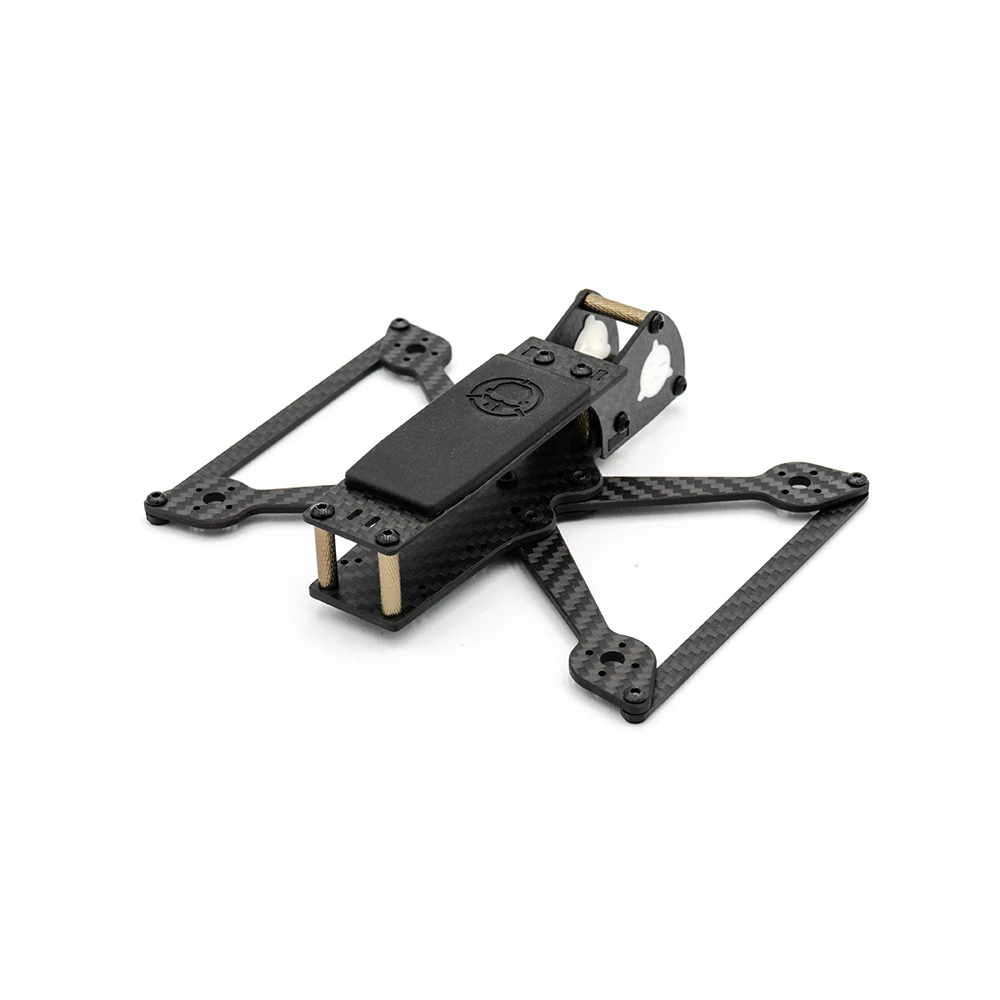

without ducts

.

Features

• Compatible with the Fatshark Dominator HD system
• Compatible with Caddx Vista DJI HD system
• Compatible with analog video systems
• Vertical side plates that allow for camera angles to be locked in place
• Swappable 3D prints to accommodate different camera sizes
• 20×20 stack mounting
• 20×20 / 25×25 rear mounting
• Comes with all the screws we think you’ll need, from cameras to stacks

Specifications

• Wheelbase: 154mm
• Frame Style: Wide X
• Main Plate Thickness: 3mm
• Top Plate Thickness: 2mm
• Arm Thickness: 3mm
• Arm brace Thickness: 2mm
• Camera Plate Thickness: 2mm
• Stack Size: 20x20mm
• Rear Mounting: 20x20mm / 25x25mm
• Stack Height: 20mm
• Motor Mount: Φ12mm
• Camera Mount: Supports Up to 20mm camera
• Dimensions: 155x115mm
• Weight: 86g

Includes

• 1x Main Plate
• 1x Top Plate
• 1x

  Bottom Brace

• 2x Arm Braces
• 2x Duct Braces
• 4x

  Arms

• 2x

  Camera Plates

   (Soft mount version)

• 9x M3 Press Nuts (Installed in carbon fiber)
• 1x Skylite Hardware Kit
• 7x 20mm M3 Standoffs
• 7x 9mm Screws
• 18x 6mm M3 Screws
• 4x 18mm M3 Screws
• 4x 7mm M2 Screws
• 4x 18mm M2 Screws
• 8x M2 Nuts
• 1x

  3D Printed Camera Mount Set

• 1x

  Battery pad

• 1x

  210mm Battery Strap

• 1x

  Skylite Slim Duct Set

  (Only with the ducted option)

• Does not include video or receiver antenna mounts

Recommended Accessories

• Skylite 3D Prints

• Tool Set
