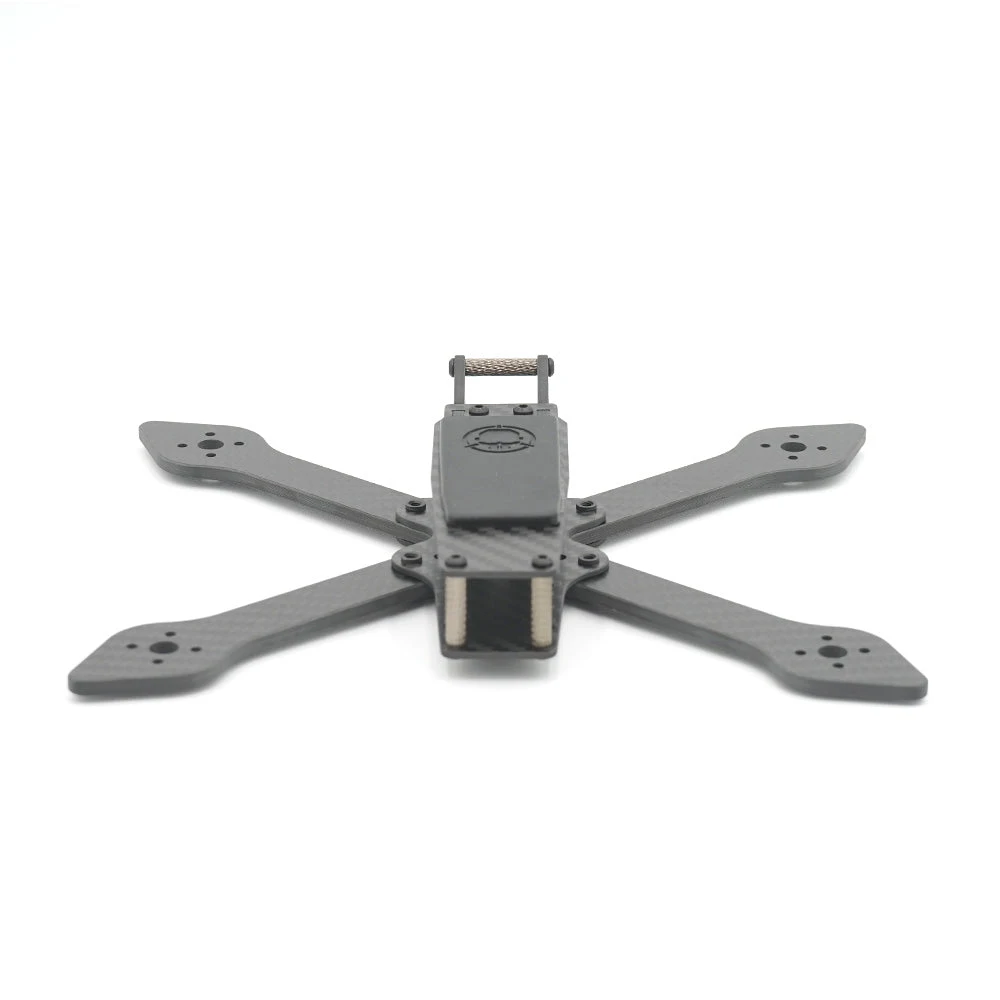

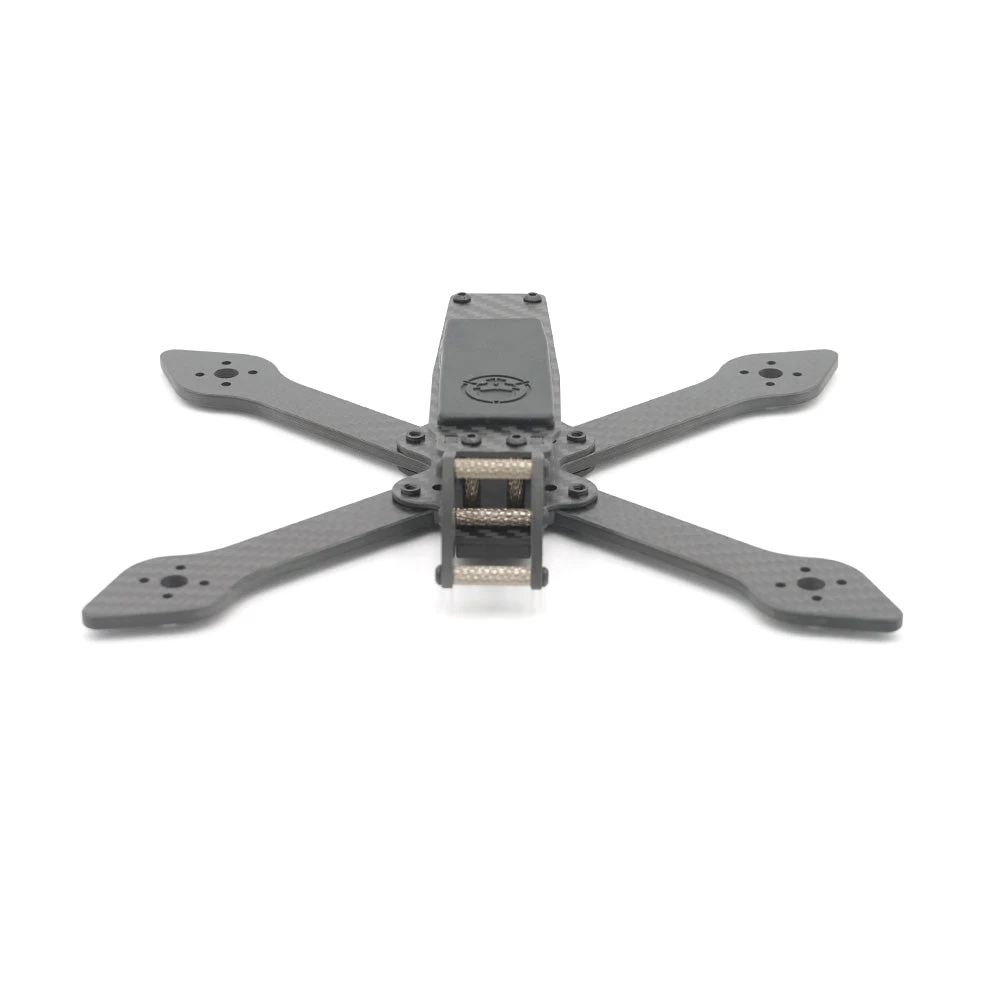

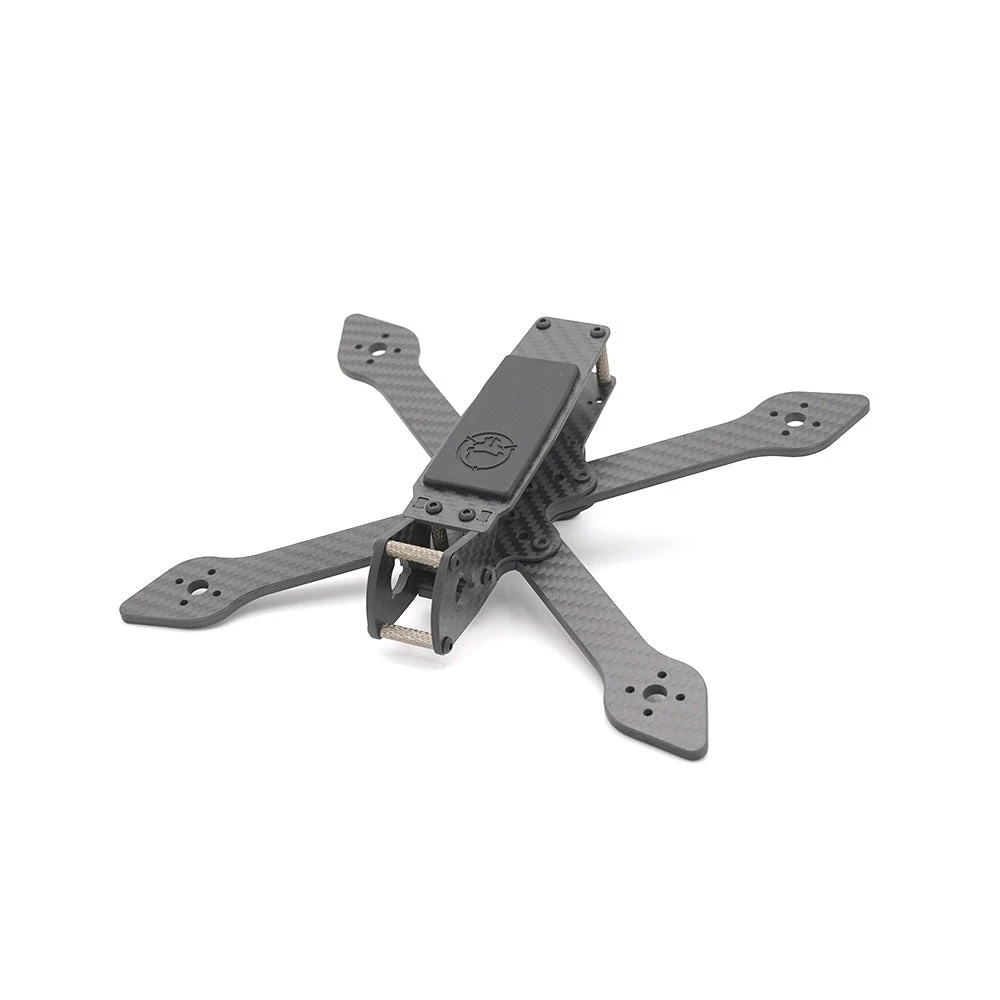

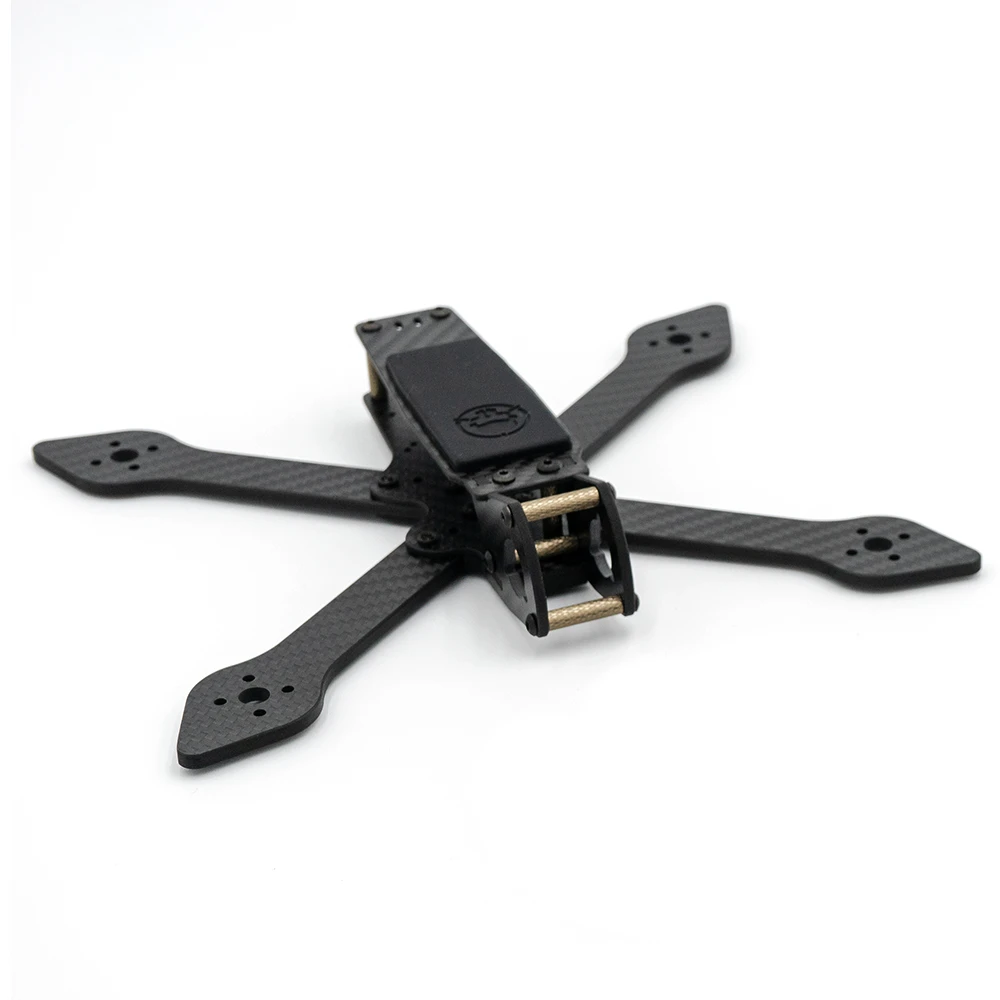

Skyliner MK3 5″ Frame

The Skyliner MK3 is another continuation of Le Drib’s personal frame. This time the focus is on full compatibility with the new FPV ecosystem. This iteration allows for use with analog, DJI, and the new Fatshark HD systems. this allows this to be the perfect frame for any pilot.

Features

• Compatible with the Fatshark Dominator HD system
• Compatible with DJI HD systems
• Compatible with analog video systems
• Vertical side plates that allow for camera angles to be locked in place
• Swappable 3D prints to accommodate different camera sizes
• 30×30 stack mounting
• 20×20 and 25×25 stack mounting in the rear
• Comes with all the screws we think you’ll need, from cameras to stacks

Specifications

• Wheelbase: 213mm
• Frame Style: Wide X
• Main Plate Thickness: 2mm
• Top Plate Thickness: 2mm
• Front Brace Thickness: 4mm
• Arm Thickness: 4mm
• Stack Size: 30x30mm
• Rear Mounting: 20x20mm / 25x25mm
• Stack Height: 20mm
• Motor Mount: Φ16mm
• Camera Mount: Supports up to 20mm cameras
• Dimensions: 210×175mm
• Weight: 144g

Includes

• 1x Main Plate
• 1x Top Plate
• 1x Arm Brace
• 4x Arms
• 2x Camera Plates
• 1x Front Brace
• 1x Hardware Set
• 7x 20mm M3 Standoffs
• 18x 9mm M3 Screws
• 4x 12mm M3 Screws
• 4x 18mm M3 Screws
• 8x M3 Press nuts (installed in the main plate)
• 4x 7mm M2 Screws
• 4x 18mm M2 Screws
• 8x M3 Nuts
• 1x

  3D Printed Camera Mount Set

• 1x

  Kwad Skids Set

• 1x

  Battery Pad

• 1x

  210mm Battery Strap

• Does not include video or receiver antenna mounts

Recommended Accessories

• Skyliner MK3 3D Prints

• Tool Set
