Sixty9 Long Range 25mW-1W Analog VTX And 915MHz Receiver For Crossfire Protocol

The TBS Crossfire Sixty9 sports a race-friendly, long-range capable video transmitter combined with the same on the TBS Crossfire side. Mounting holes are 20×20, but we do include adapters for your 30×30 stacks, and a plastic case for mounting the unit to your frame, without any stacking necessity.

Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).

FEATURES:

• Integrated video transmitter control with long-range and (team-)race functions
• Dedicated low-noise power supply for receiver and video transmitter
• Sleek 20×20 mounting form factor
• Plug&play connection and solder pads connectivity

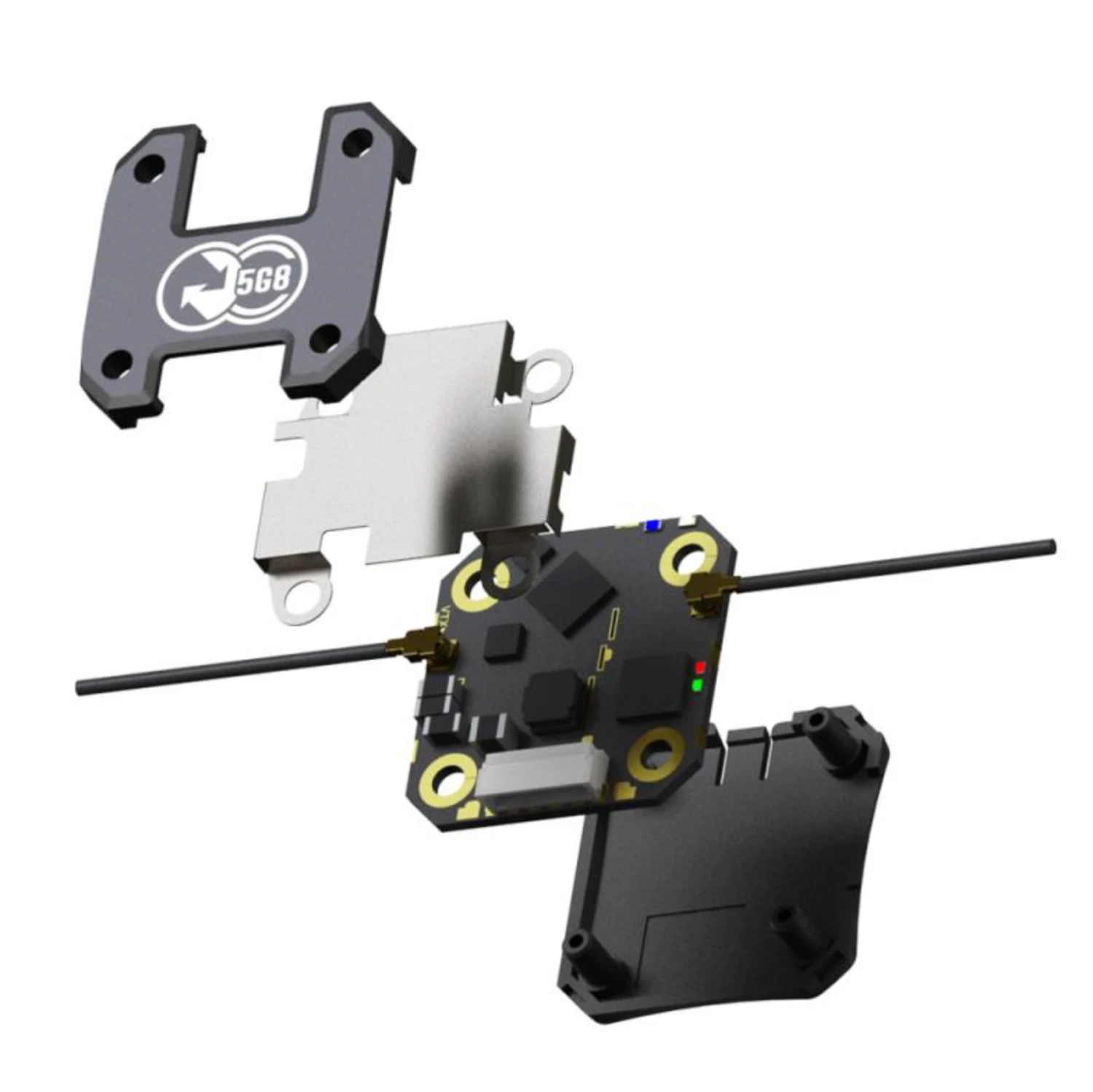

• 3 different mounting flavors, RF tin shields, and other accessories included
• High power analog adjustable video transmitter (up to 1W with perfect cooling)

SPECIFICATIONS

• Weight: 4.1g (board only)
• Antenna ports: 1x video transmitter, 1x R/C receiver
• Size: 24mm x 24mm
• Requires: Firmware V4.62 and above
• CRSF V3 ready

INCLUDES

• 1x TBS Crossfire Sixty9
• 1x TBS Crossfire Immortal-T antenna
• 1x u.FL to SMA mount (for VTx)
• 1x 30×30 heatsink / case
• 1x 20×20 heatsink / case
• 1x optional tin-shield (for added low-noise tolerance)
• 1x JST-SH x 9 connector

Manual Click Here
