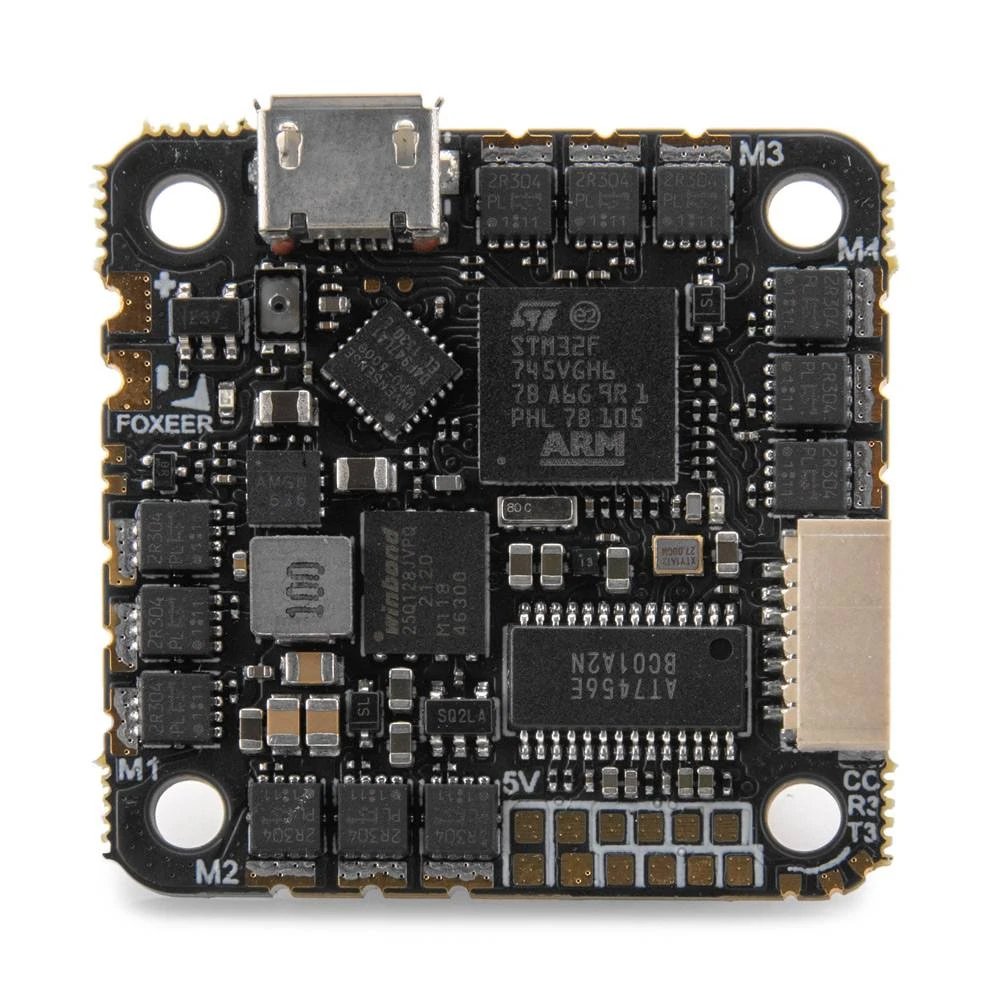

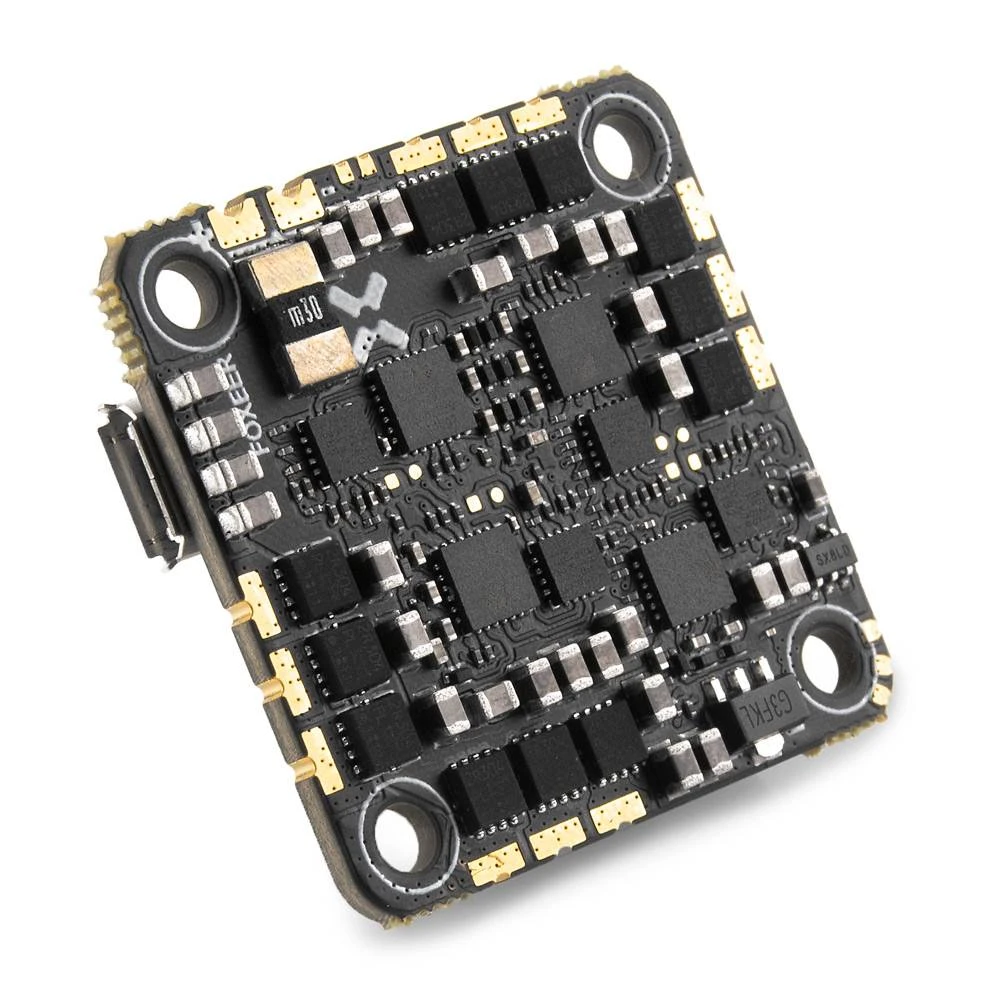

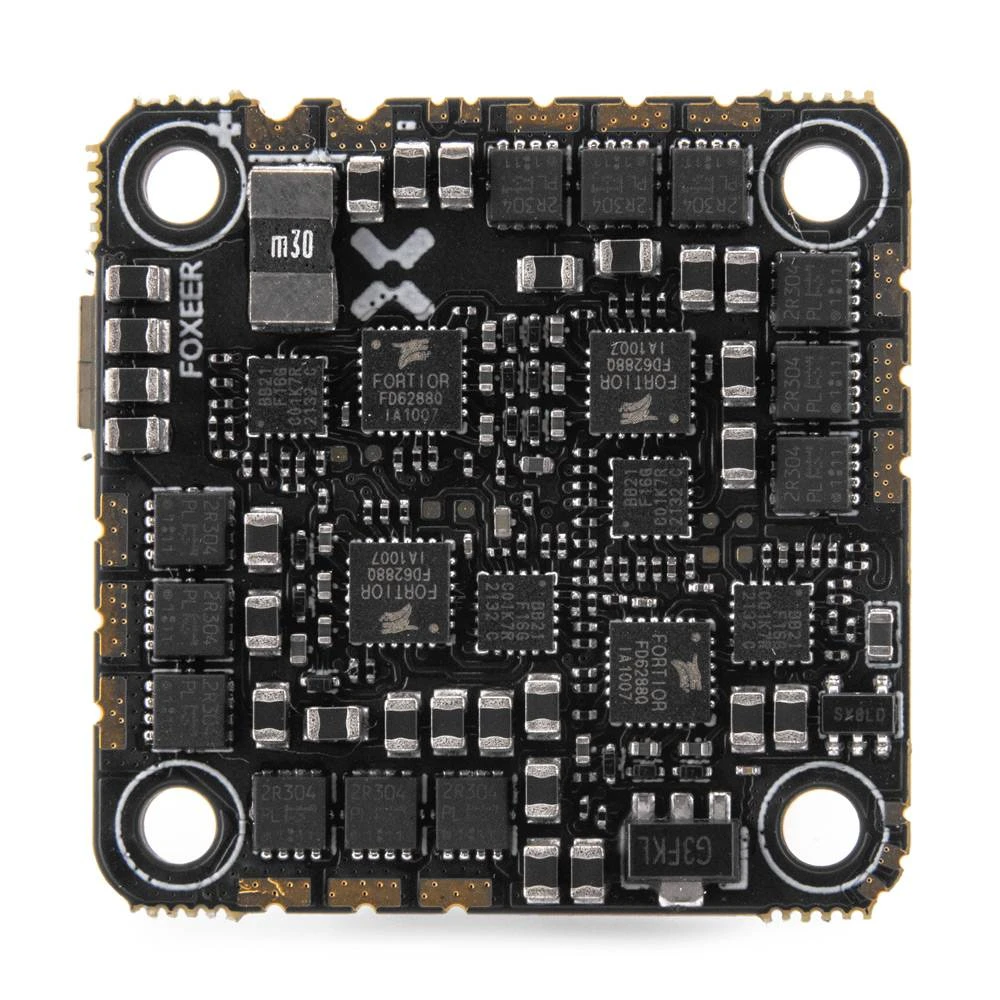

Reaper AIO V2 F745 25×25 Flight Controller With 8Bit 45A ESC
Original price was: $99.99.$69.99Current price is: $69.99.
- Free 1 year warranty period
- Your happiness, our mission.
- Protect Your Wallet with Safe Payments
- Shop with Zero Worries
The Foxeer Reaper F745 AIO V2 is an all-in-one board with an F7 flight controller and 45A ESC flashed with Bluejay firmware, featuring a BMI270 gyro, 5 UARTS, and 16M BlackBox.
Specifications
- Input Voltage: 2-6S LiPo
- MCU: STM32F745
- Gyro: BMI270
- OSD: yes
- UARTs: 5 Sets
- ESC Connections: yes
- BEC: 5V 2A
- Current Sensor: yes
- Buzzer: yes
- Barometer: yes
- Black Box: 16Mb Onboard
- Max. Continuous Current: 45A
- Max Burst Current: 50A (10sec)
- ESC Firmware: Bleujay (default) / BLheli_S
- Stack Size: 25x25mm
- Dimensions: 32.5x32.5xmm
- Weight: 8.6g
Includes
- 1x Reaper F745 25×25 AIO Flight Controller with 45A ESC
Wiring Diagram
