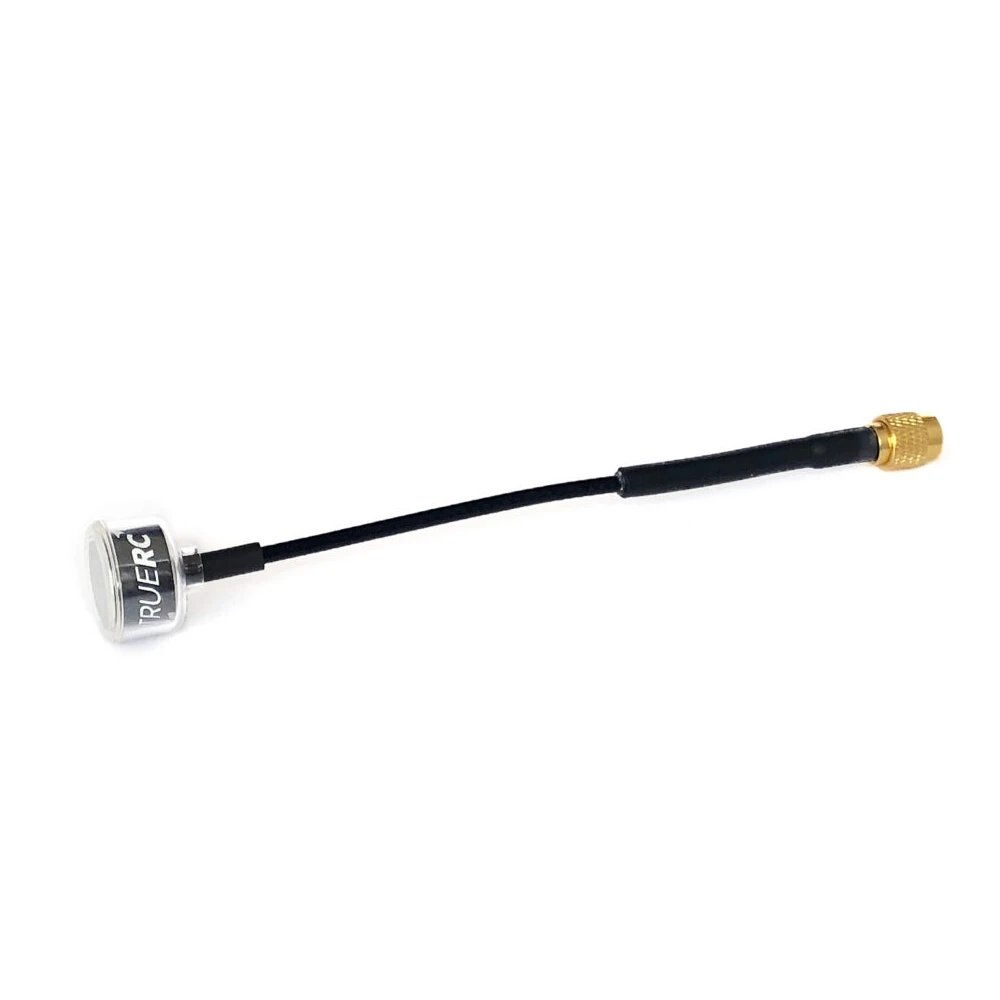

OCP RHCP Long Flex Antenna With SMA Connector

The OCP 5.8 is TrueRC’s new everyday omni antenna. Proven design, great signal, durable and looks amazing. This 115mm long version features flexible coax cable option that deflects impacts.

Features

• Durable poly-carbonate, injection molded, ultra-sonically welded housing
• Clear indication of polarization direction
• Excellent axial ratio and efficiency
• Flexible coax cable option that deflects impacts
• Knurled True-SMA for easy tightening

Specifications

• Gain: 1.6dBic
• Polarization: RHCP
• Cross-Polar Rejection: -10 to -20dB, (3.2%)
• Bandwidth: 5.6GHz-6.0GHz
• Radiation Efficiency: 98%
• SWR: <=1.2:1
• Weight: Vary with connector/cable option
• Dimensions(head): 16.5mm dia. x 10.7mm height.
• Length: 115mm
• Cable: TrueRC flex coaxial
• Connector: Reinforced True-SMA

Includes

• 1x OCP RHCP Long Flex Antenna with SMA Connector
