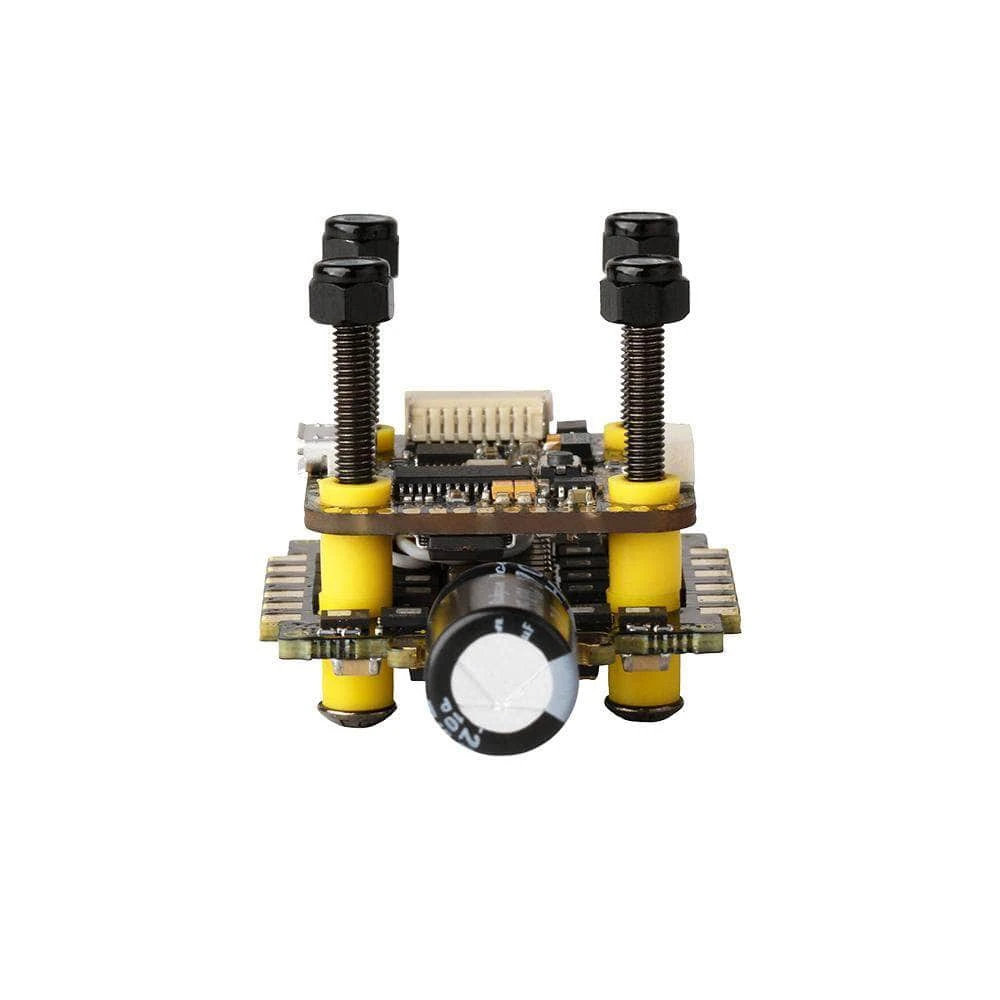

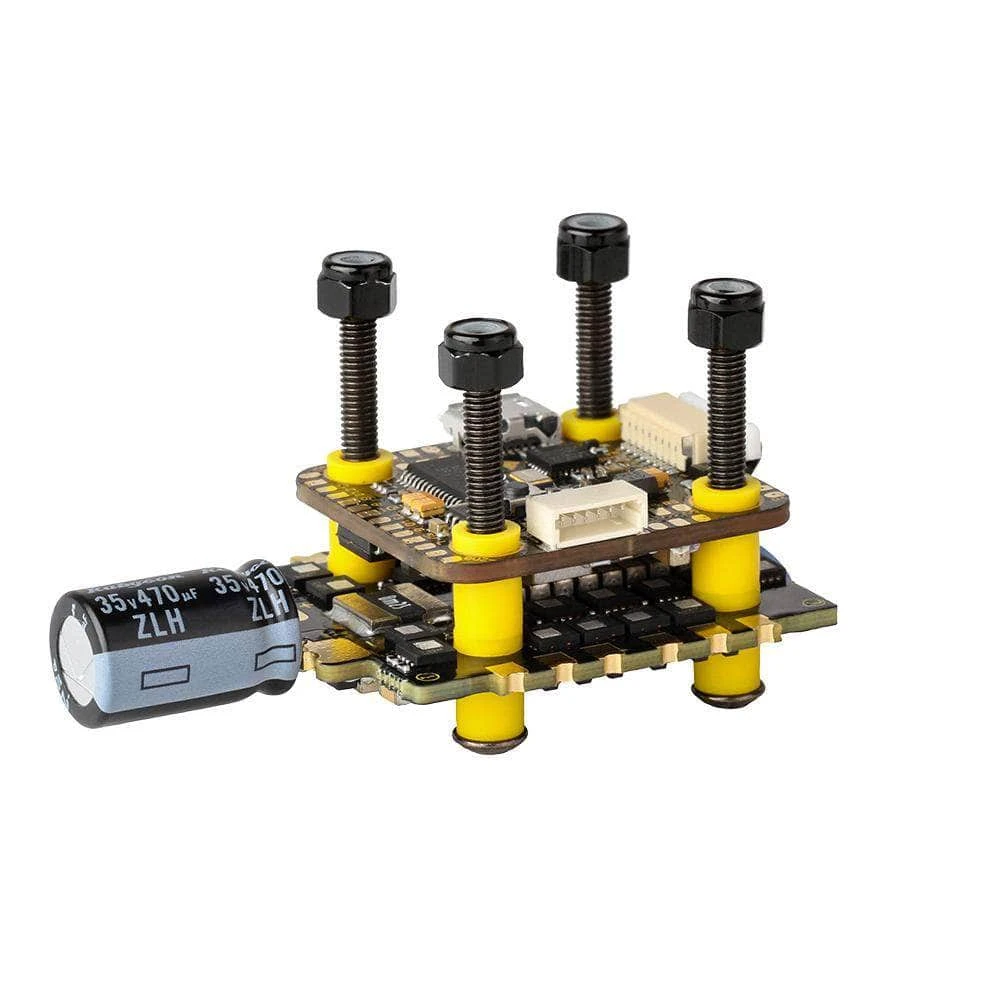

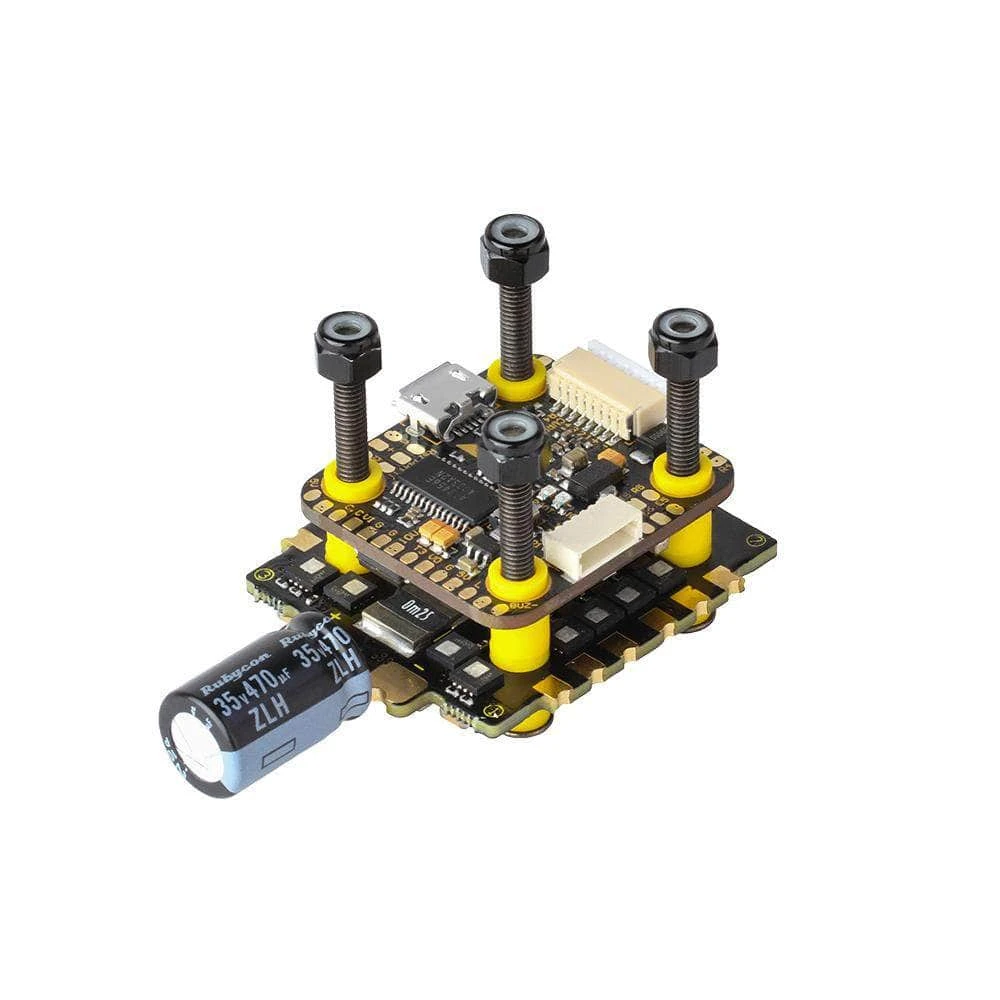

Mini F7 3-6S 20×20 Stack With F7 FC And 32Bit 45A ESC

Lightweight DJI plug and play ready 20×20 stack from T-Motor.

Features

• Dual BEC, DJI Plug and Play Ready
• 45A ESC
• F7 Flight Controller

Specifications

T-Motor F7 Mini Flight Controller

• Input Voltage: 3-6S
• Firmware: TMOTORF7 (STM32FX2)
• BEC: 5V/2A, 10V/2A (For DJI HD VTX)
• Main Control: STM32F722
• Gyroscope: MPU6000
• RAM: Onboard 16M
• OSD: Support
• Barometer: No
• Mounting Pitch: 20*20mm
• Weight: 5.1g

T-Motor Mini 45A ESC

• Input Voltage: 3-6S
• ESC Firmware: BLHeli32
• Telemetry: Supported
• Galvanometer: Supported
• DSHOT 150/DSHOT 300/DSHOT 600/PROSHOT 1000
• Backwards Compatible with Oneshot125/Oneshot42/Multishot
• Betaflight Galvanometer Ratio: 200
• Mounting Pitch: 20*20mm
• Weight: 9.2g

Includes

• 1x T-Motor Mini F7 3-6S 20×20 Stack Combo (F7 FC / 45A ESC)

Wiring Diagram
