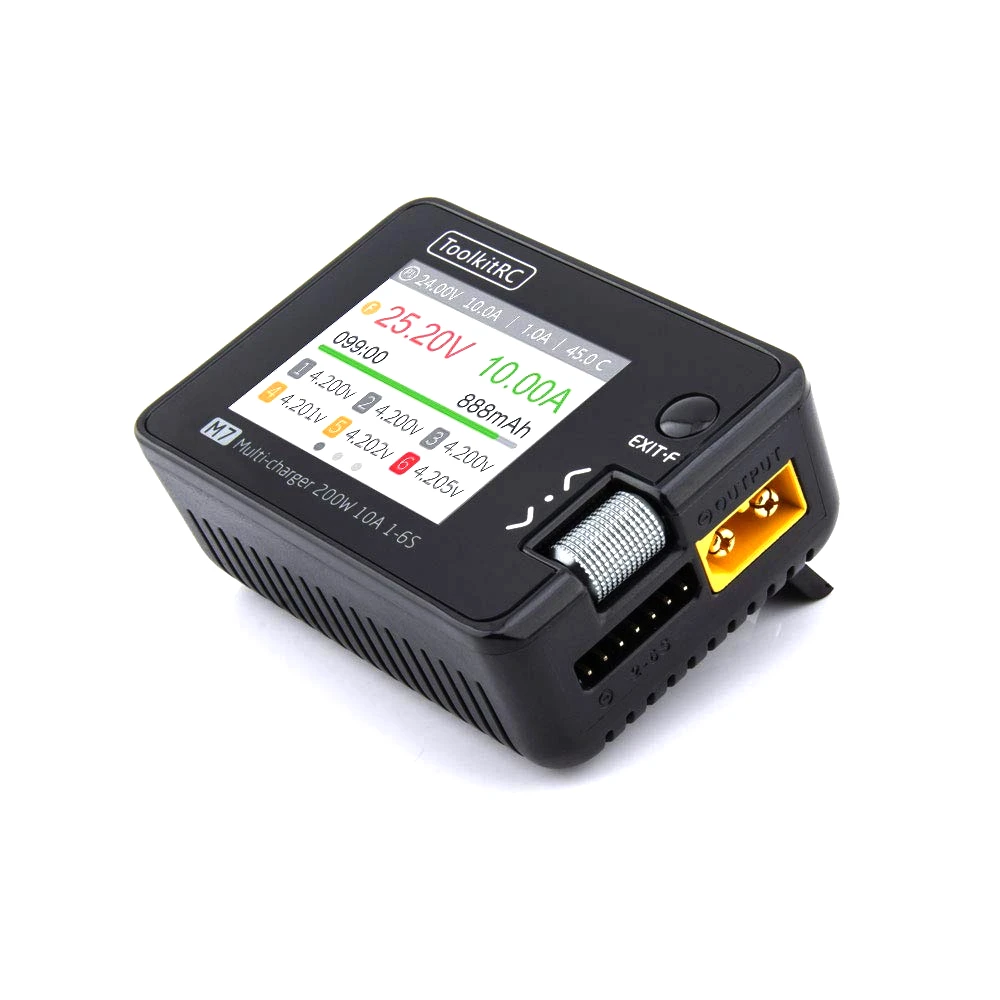

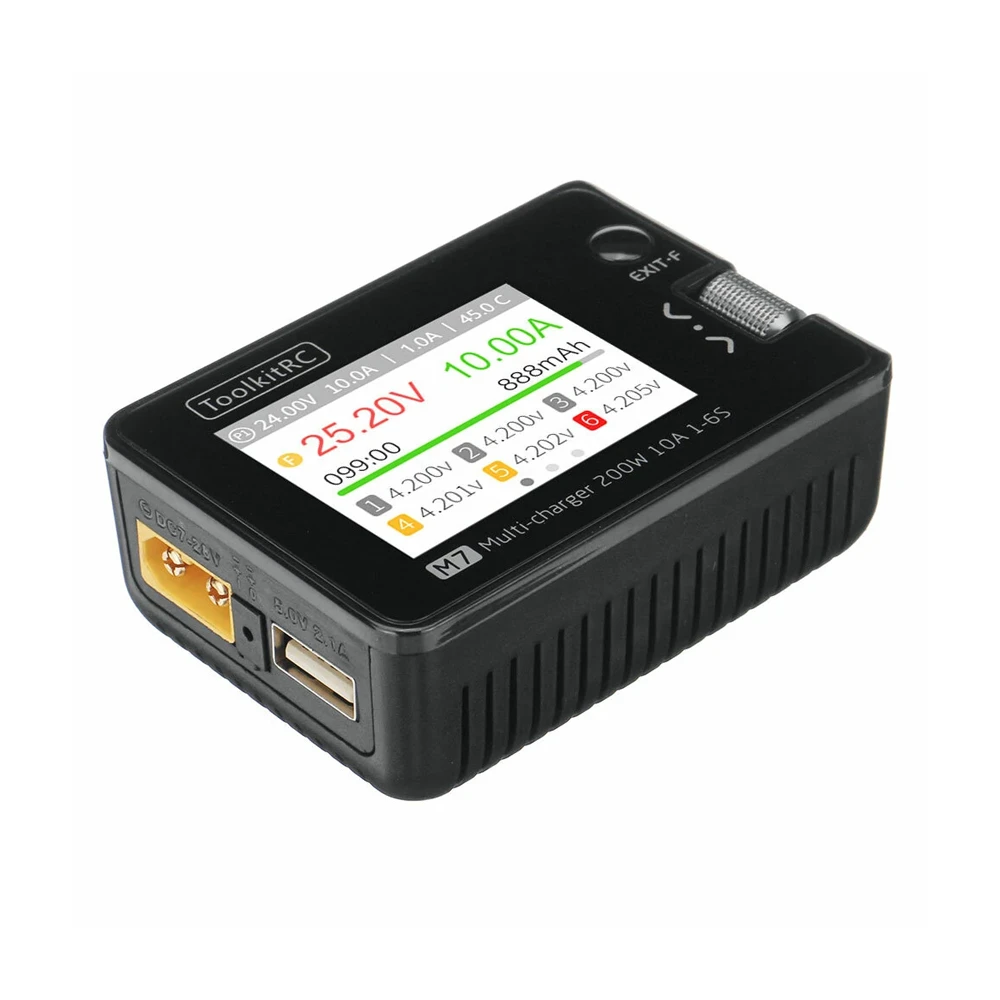

M7 200W 1-6S DC Smart Charger

All the multi-functionality you’ve come to expect from a ToolkitRC charger, in a more compact package!

Works great with

ADP-100

or

ADP-180

power supplies.

Features

• Same size as M6 with 33.3% more power
• Bright 2″ 32×240 IPS wide angle display
• Long life scroll wheel sensor
• New simplified interface
• Small size, many functions:
• Balance charge
• Electrical measurement
• Signal source
• Drone charge
• Signal testing

Specifications

Charger

• Input Voltage: 7.0-28.0V @MAX 12A
• Battery Type: Lipo LiHV LiFe Lion@1-6S , NiMh @1-16S Pb @1-10S
• Balance current: 400mA @2-6S
• Charger power: 200W @MAX 10A
• Discharge power: 200W @MAX 10A Recycle mode, 10W@3A Normal mode
• USB: 2.1A @5.0V

Measurement

• PWM: 880-2200us @20-400Hz
• PPM: 880-2200us*8CH @20-50Hz
• SBUS: 880-2200us*16CH @20-100Hz
• Voltage: 1.0-5.0V @1-6S
• Internal resistance: 1-99mR @1-6S
• ESC: 200W@10A PWM Output

Output

• PWM: 500-2500us @20-1000Hz
• PPM: 880-2200us*8CH @20-50Hz
• SBUS: 880-2200us*16CH @20-100Hz
• Power supply: 1.0-28.0V @1.0-10A mode:CC+CV
• OverCurrent Cutoff time: <5ms

Includes

• 1x M7 200W DC Smart Charger
