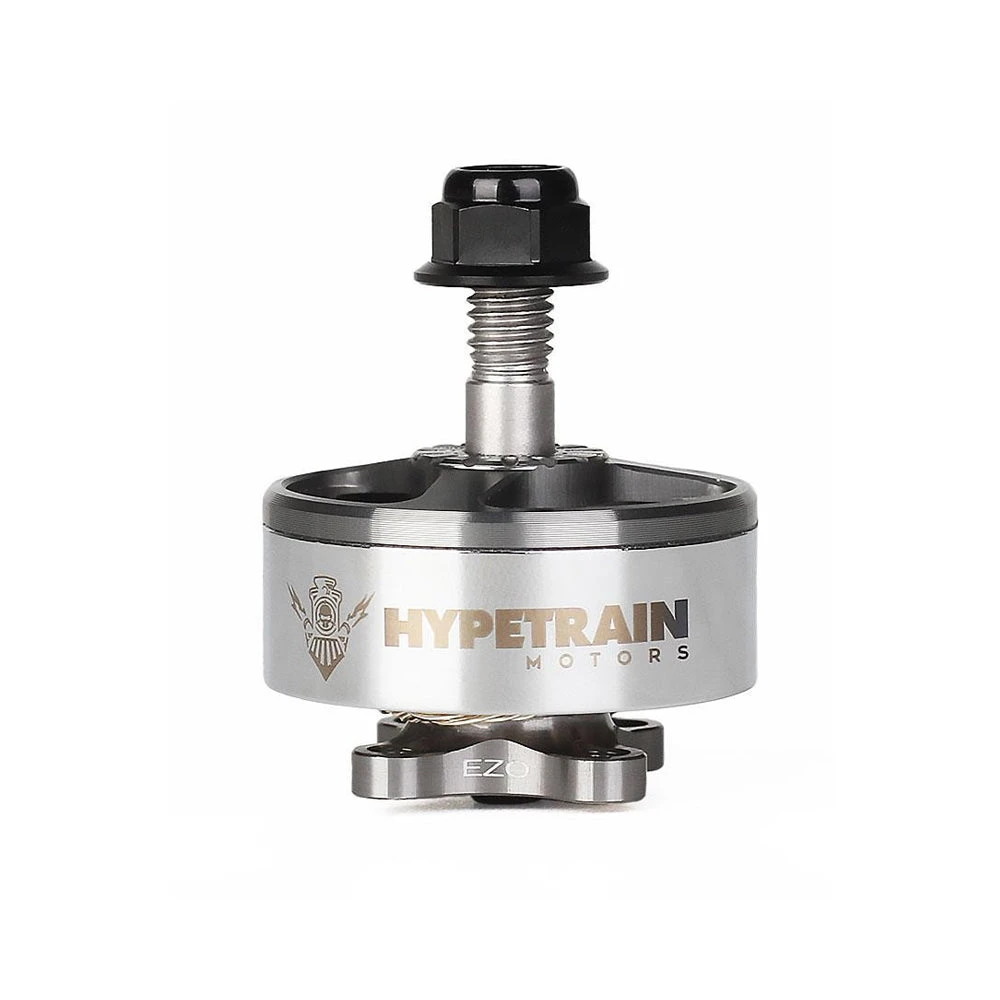

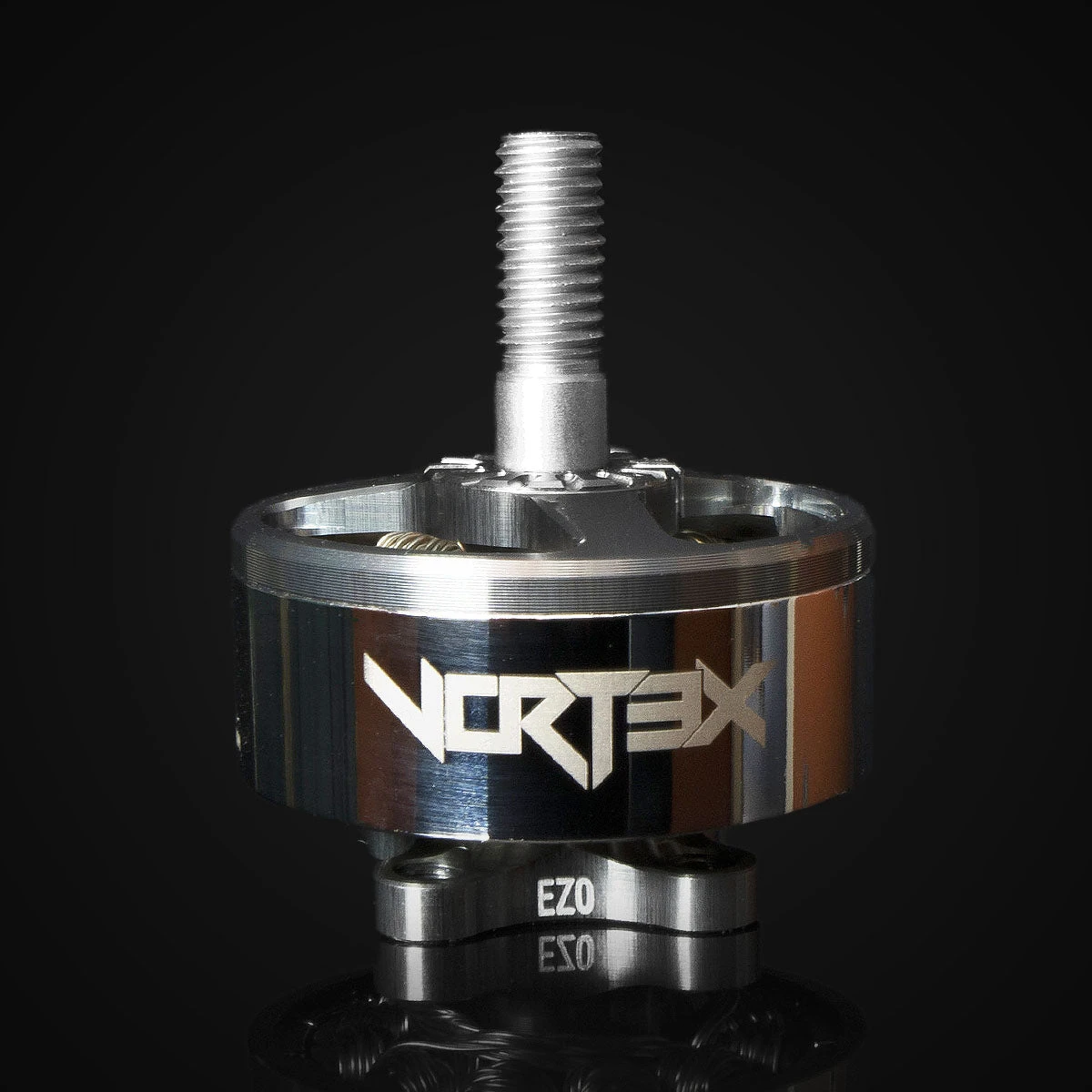

Hypetrain VORT3X 2207 2650KV Motor

The Hypetrain Vort3x Motor (also spelled as Hypetrain Vortex) finally brings a high-KV option to 2207 fans. At 2650KV, this motor can provide an extremely responsive high end with great throttle resolution!

The Hypetrain Vort3x has been designed in cooperation with popular FPV Pilot Jeff Orta, aka “Vort3x”, who has been testing several prototypes of the motor and putting them through their paces in countless bandos!

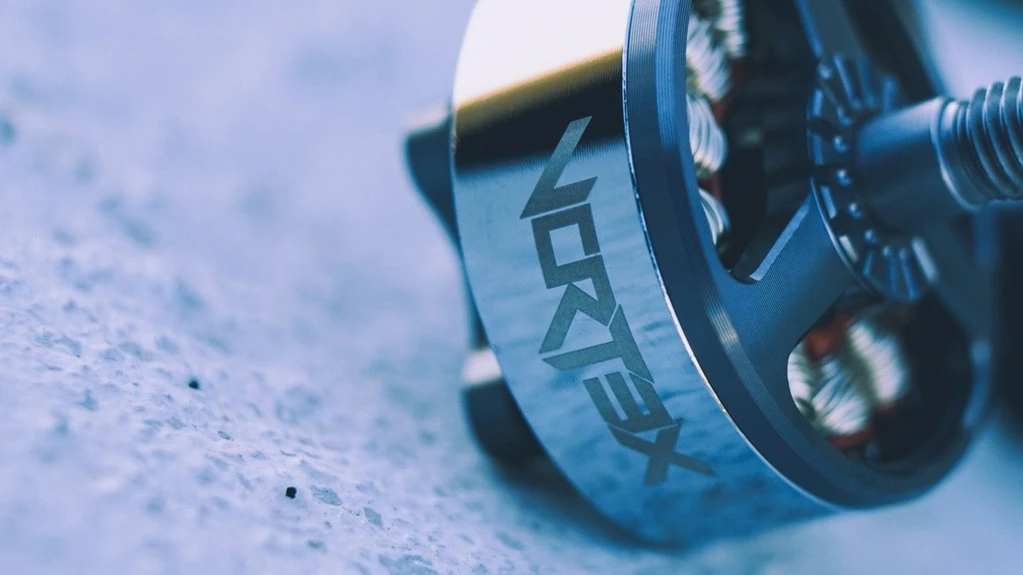

The new Hypetrain Line adopts the reinforced bell design introduced with the Hypetrain Acro Motor, which maintains the iconic tri-spoke design inspired by the Rotor Riot logo. The outer lip of the bell has been thickened to reinforce the bell ring against denting during crash impact. This durable design will help ensure smooth rotation even after crazy freestyle and bando bashing!

Like all Hypetrain motors, the Hypetrain Vort3x adopts an “open bottom” style base allows for considerable weight reduction and improved cooling. The 16×16 mm mounting screw pattern opens up new design possibilities while still maintaining backwards compatibility with legacy frames.

Model: Hypetrain VORT3X

Specifications

• Weight: 32 grams
• KV: 2650KV
• Stator Diameter: 22 mm
• Stator Height: 7 mm
• Propeller Shaft Size: M5
• Wires: 118 mm 20AWG Silicone Sheath
• Bell Material: 7075 Aluminum
• Magnets: N50 Curved Magnets
• Mounting Screw Pattern: 16×16 mm
• Input Voltage: 3-4S
• Bearings: EZO 4x9x4mm 684ZZ

Includes

• 1x Hypetrain VORT3X 2207 2650KV Motor
• 1x M5 Nylock Propeller Nut
• 4x M3 x 6mm Mounting Screws
• 1x Sticker
