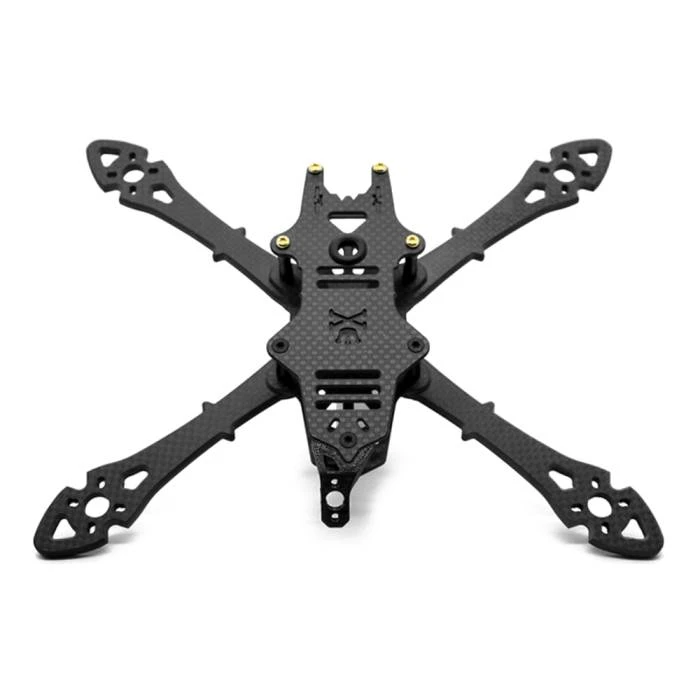

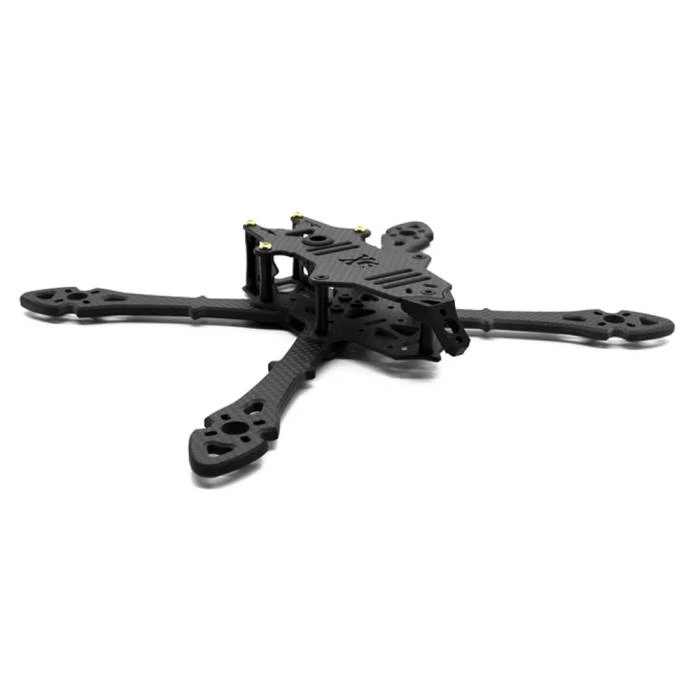

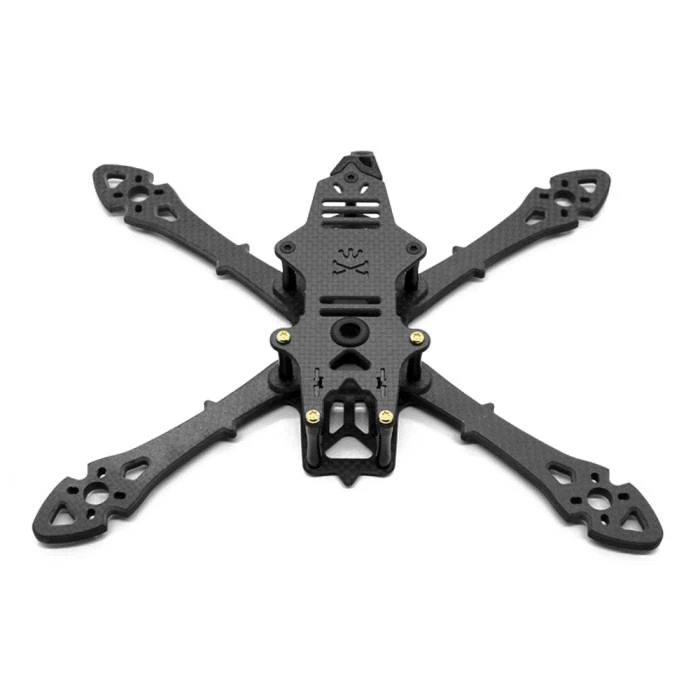

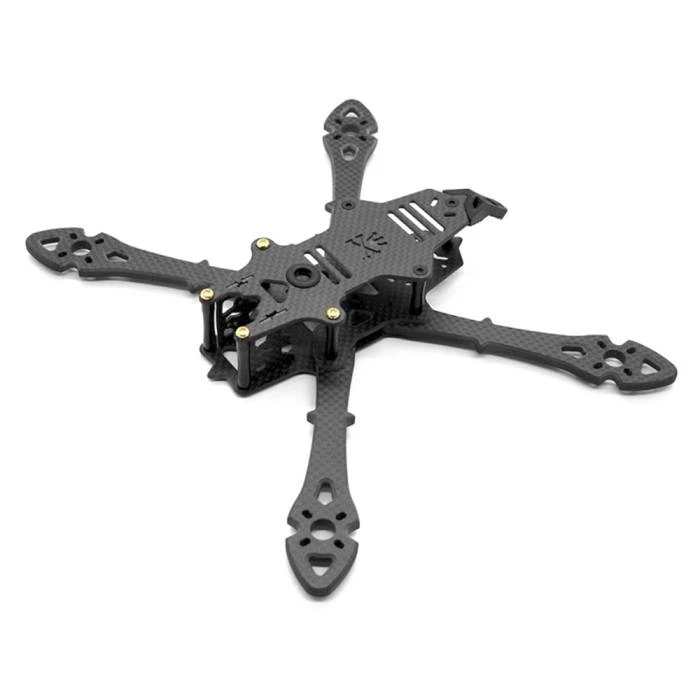

Hook V2 5″ Frame

Get a precise flying experience with the new PIRAT Hook V2 Frame! The V2 frame now features more durability (even in reverse), Caddx Vista integration, and adaptivity to all camera sizes. Developed in collaboration with PDEVX FPV pilot.
Crafted with high-quality carbon fiber and aluminum parts, the Hook V2 is a tough frame that focuses on excellent CG balance to give a smooth, super-tunable flight. Custom made with 235mm motor distance to give you enough space for clean air and flight stability.

Features

• Choose between True-X and Squished geometries with the same set of arms
• 5mm Ams and 2.5mm Bottom/top Plate thickness
• Works with most camera sizes – 22 or 20mm
• Allows 21mm Maximum Stack Height
• 7075 T6 Aluminum Custom Standoff
• Full T10 Torx 12.9 Steel Screw Set
• Chamfered Full 3K T300 Carbon
• Toilet Tank LiPo Positioning
• 30×30 Mounting Pattern

Specifications

• Carbon Material: Chamfered Full 3K T300
• Camera Size Compatibility: 22 or 20mm
• Bottom/top Plate thickness: 2.5mm
• Maximum Stack Height: 21mm
• Arm Size: Choose 5″ or 6″
• Mounting Pattern: 30×30
• Model: Pirat Hook V2
• Arm thickness: 5mm

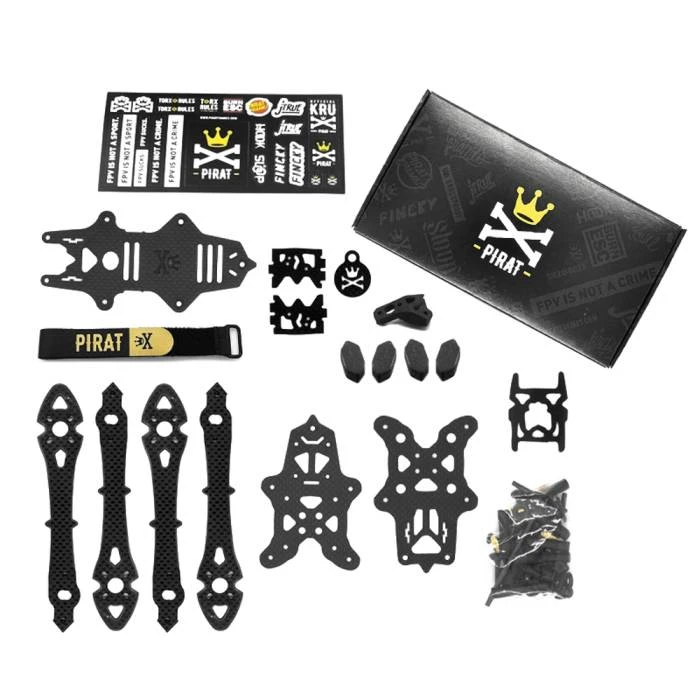

Includes

• 2x 28mm Custom spacers in 7075 aluminum
• 5x 21mm Custom spacers in 7075 aluminum
• 16 x M3 / 8mm Black pan motor screws
• 1x VTX Antenna support in 3D printing
• 8x 6061 Aluminum Custom washers
• 4x M3 / 12mm T10 Torx countersunk screws
• 4x M3 / 16mm T10 Torx countersunk screws
• 6x M3 / 8mm T10 Torx countersunk screws
• 4x M3 / 10mm T10 Torx gold pan screws
• 1x 20mm / 230mm lipos straps
• 4x

  5mm Arm

  (Choose 5″ or 6″)

• 4x Black self-locking nuts
• 4x Foam landing pad
• 1x Silicone lipo pad
• 1x Silicone eyelet
• 2x Camera plate
• 1x Bottom plate
• 1x Middle plate
• 1x Top plate
• Does not include video or receiver antenna mounts
