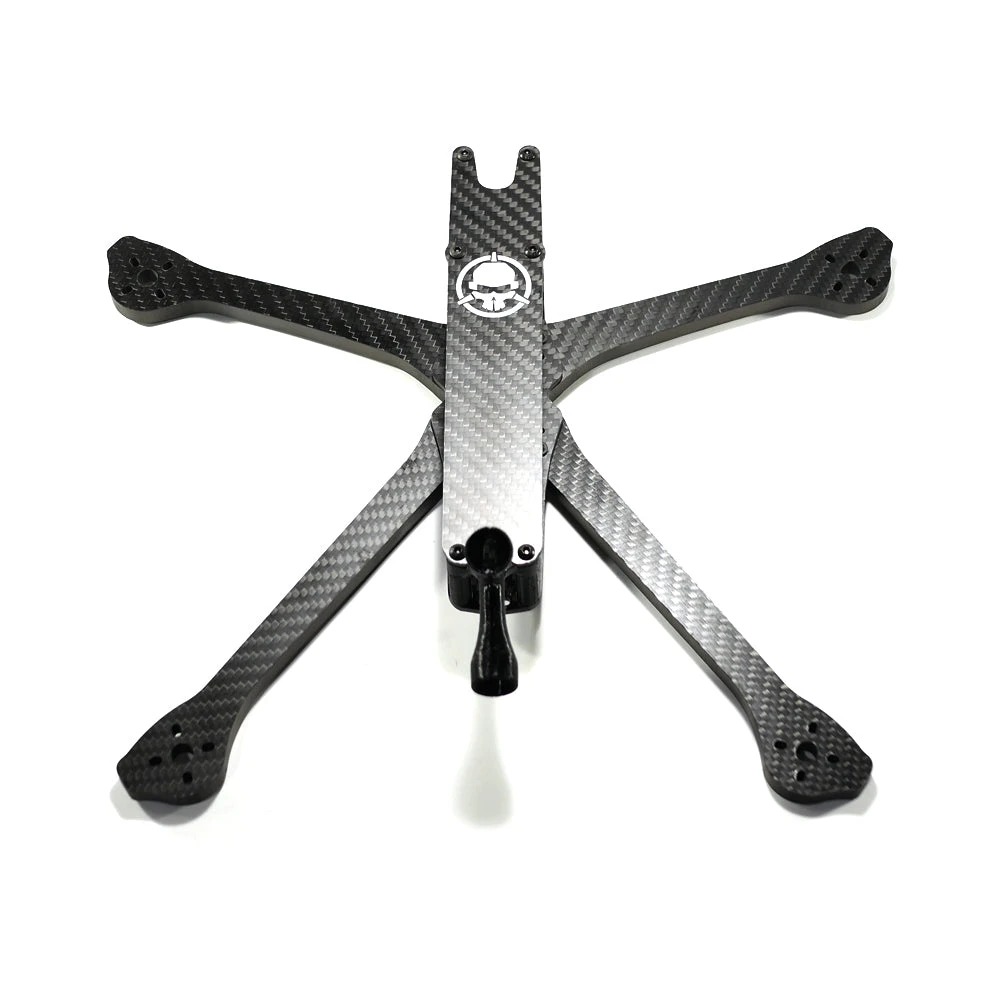

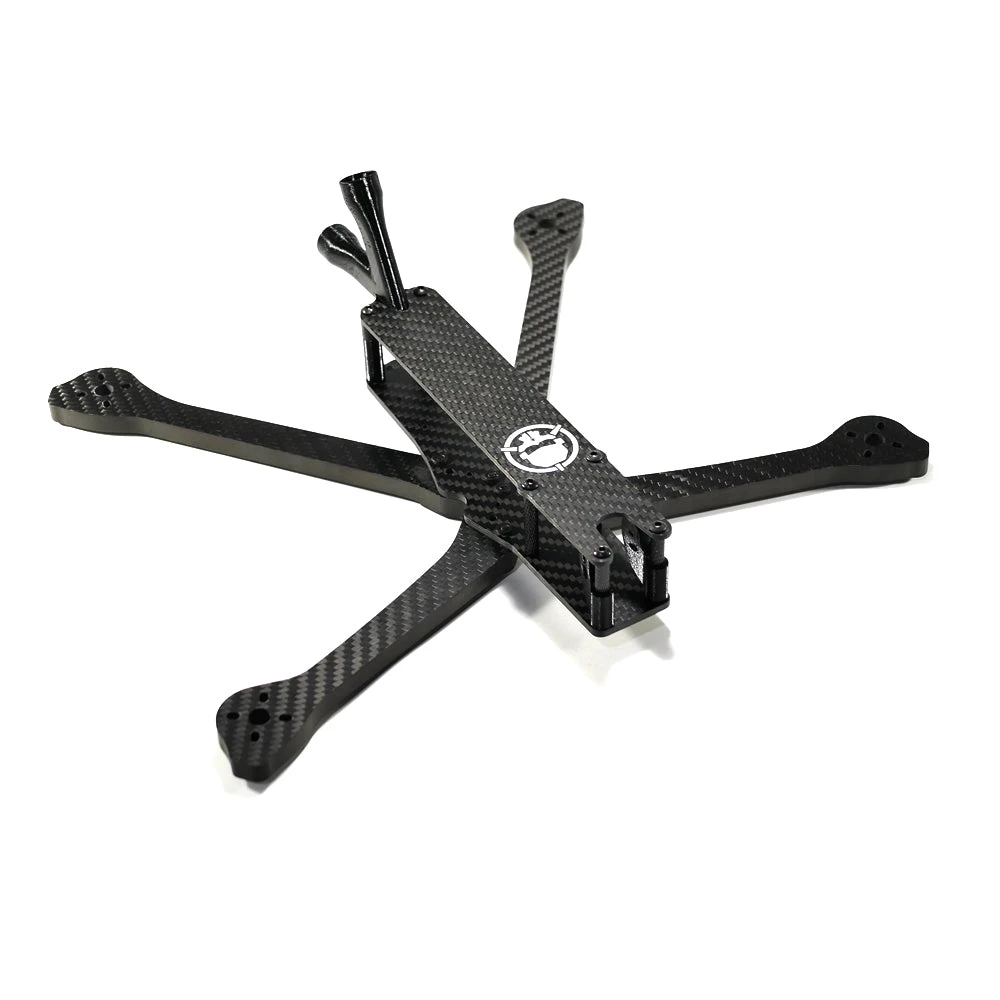

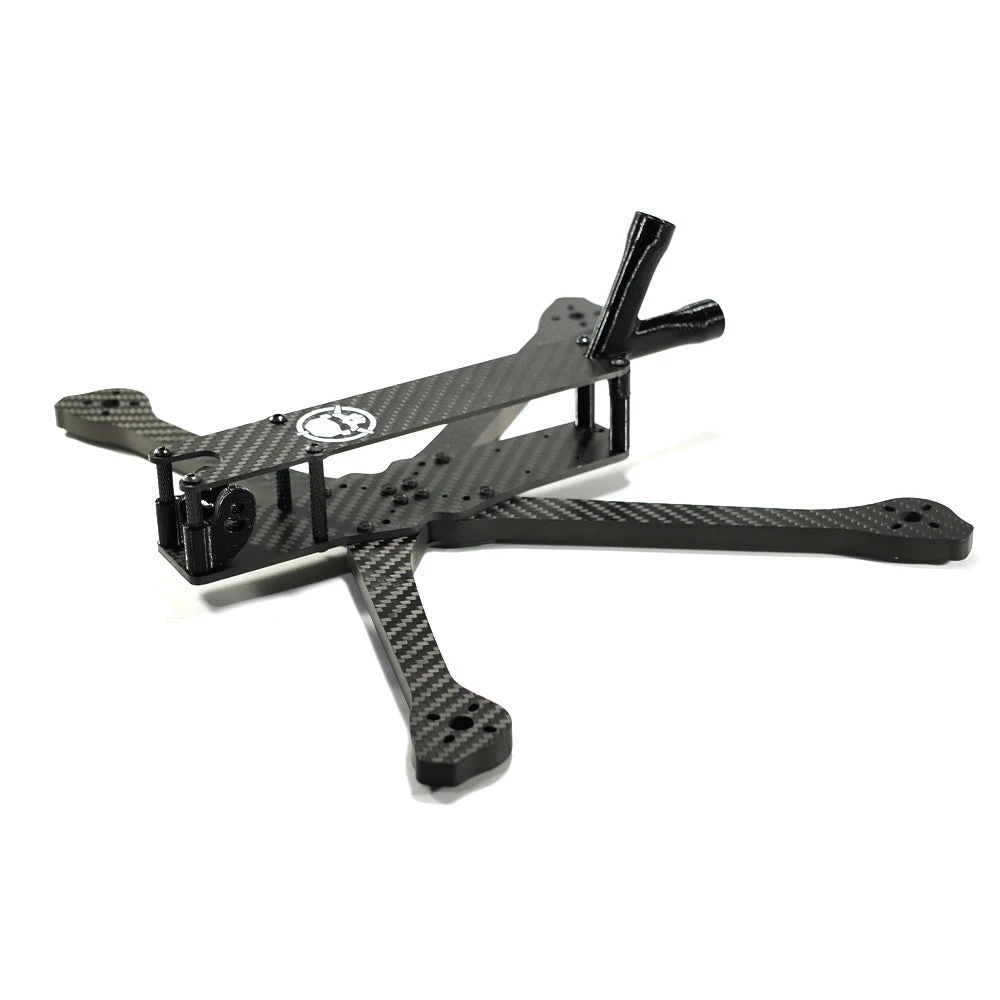

HD1-XR 7″ Deadcat Frame

An affordable, durable, DJI HD compatible 7″ frame. We took the design of the HD1, and updated the arms to create this Xtended Range beast. Flying in HD is expensive. Save some cash by pairing it with a solid, affordable frame.

Check out the full collection of

Spares and 3D Prints for the HD1

Get 3D Printed Accessories, or print your own from STL’s!

For detailed instructions, links to spare parts, and other resources, check out the

HD1 Frame resources page!

Flight time is dependent on motor, propeller and battery selection.

Features

• DJI HD Compatible
• No props in GoPro Superview with 20 & 30 deg mounts
• Printed camera mount for DJI camera
• Printed antenna mount for DJI antennas
• 3mm bottom plate for extra strength
• High strength carbon fiber pieces
• 6 & 7 inch prop support
• Asymmetrical motor protection
• Mounting holes for both 30.5×30.5 and 20×20 boards
• Additional 20×20 mounting in rear section
• Slots for accessory mounting
• 16mm to 19mm motor mount layout
• Weight: ~214g

Includes

• 1x

  2mm Thick Top Plate

• 1x

  3mm Thick Bottom Plate

• 1x

  1.5mm Thick X Brace

• 4x 8mm Thick 7″ Arms

• Front Arms

• Back Arms

• 1x Hardware Set
• 2x

  3D Printed TPU DJI Camera Mounts

• 1x

  3D Printed TPU DJI Antenna Mounts

• 4x Landing Skidz
• Does not include video or receiver antenna mounts

Recommended Accessories

• HD1 3D Prints

• Tool Set
