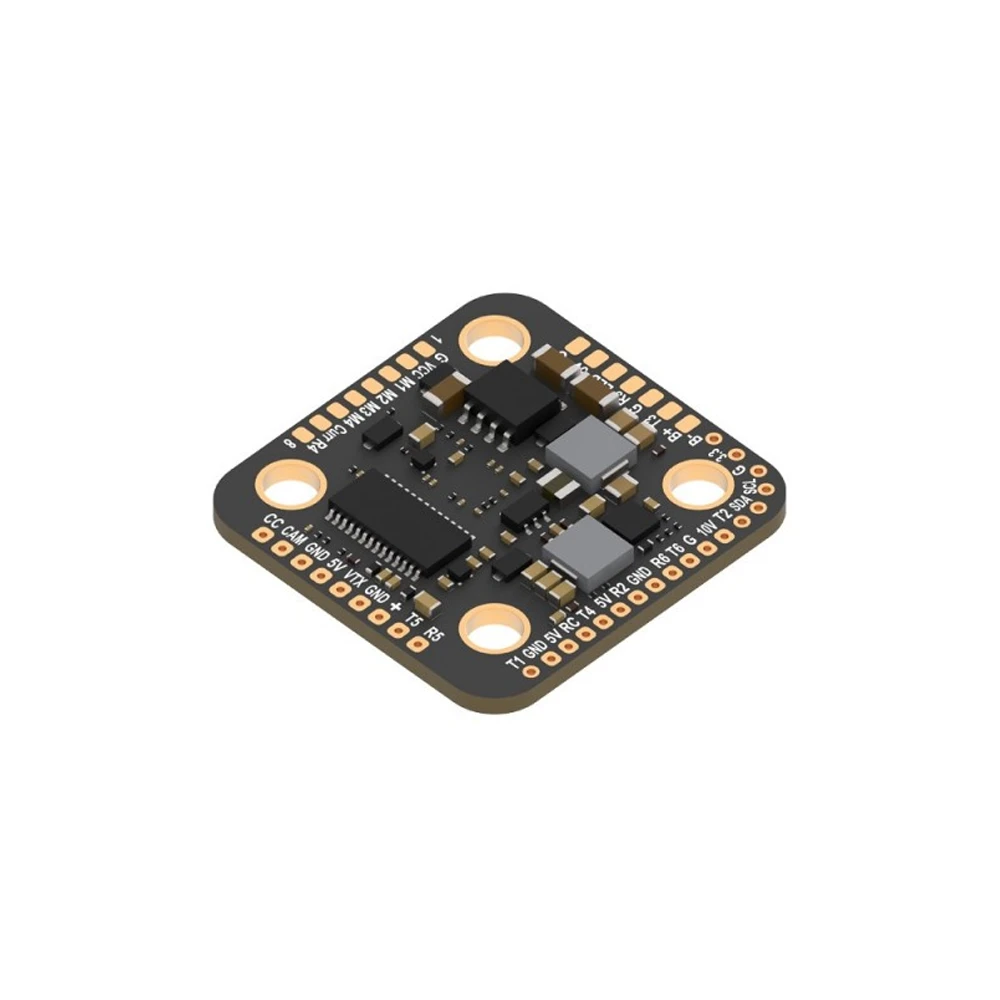

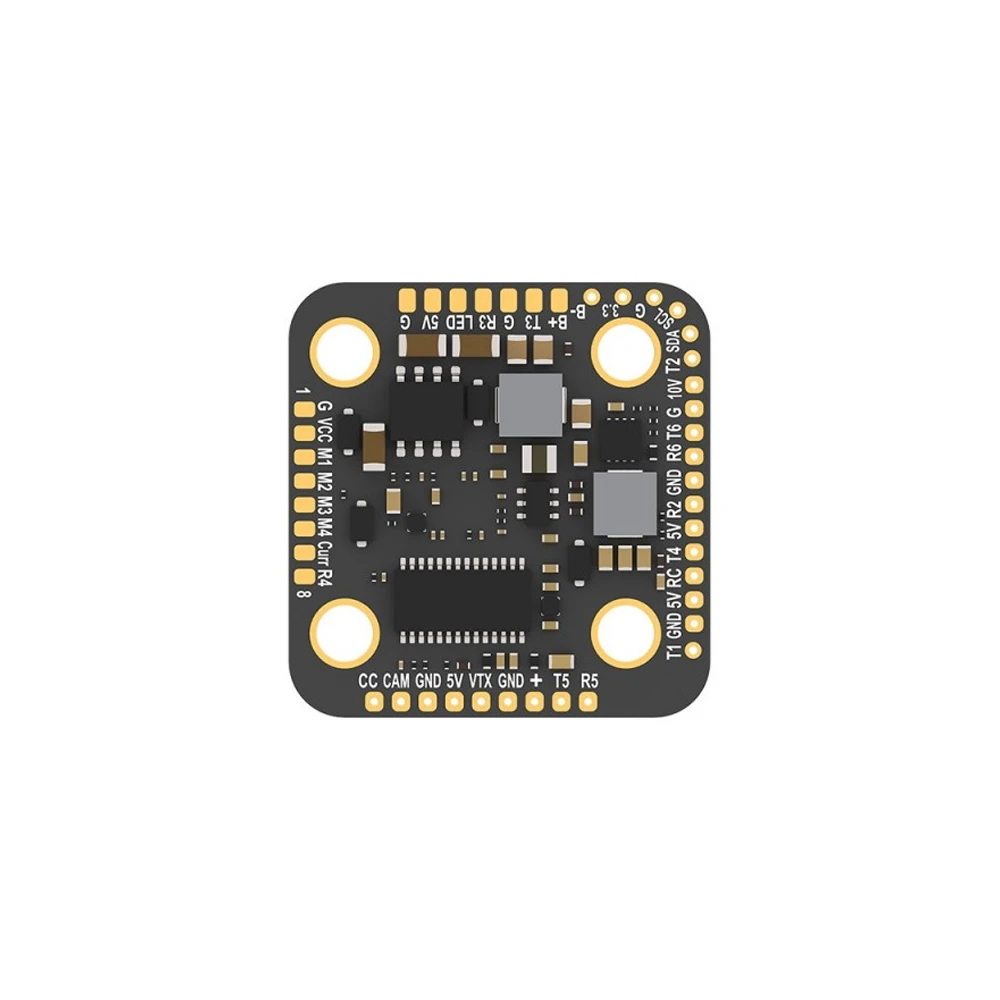

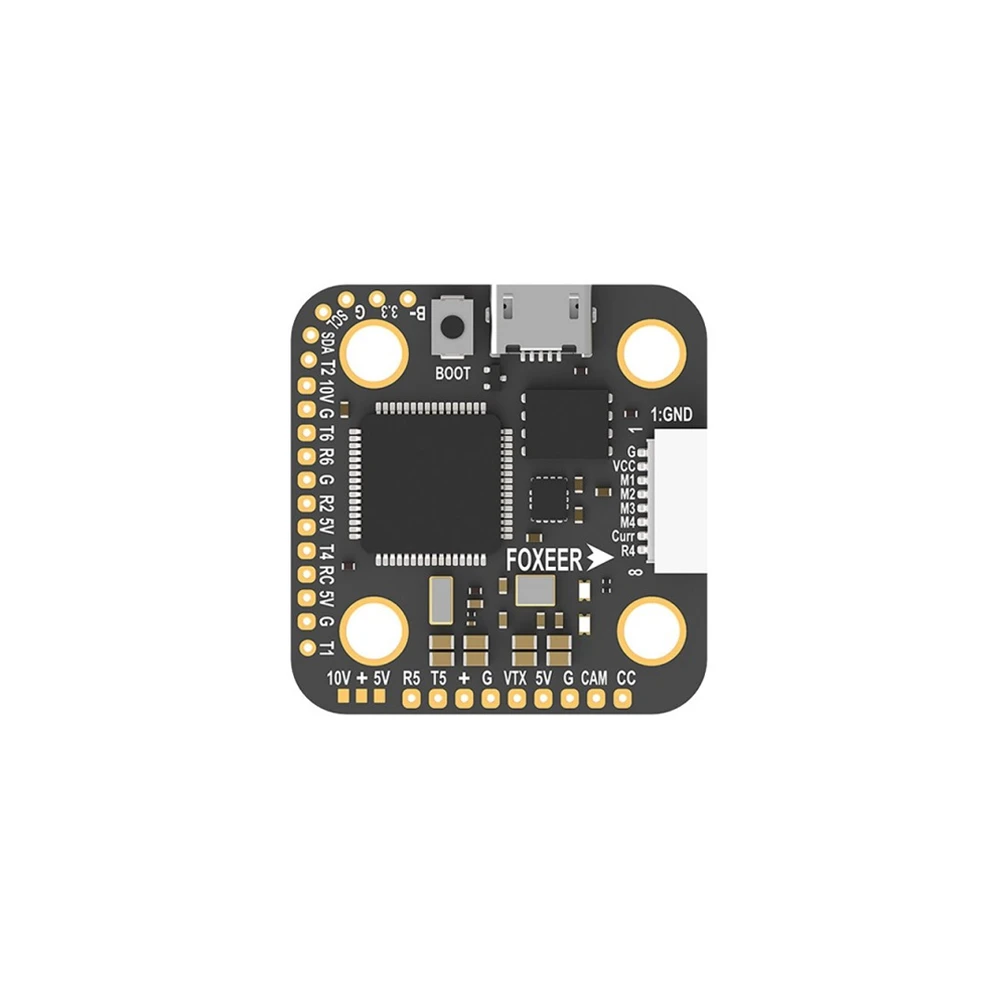

F722 V4 Mini 4-8S 20×20 Flight Controller

The perfect FC for 8S 20×20 builds! Dual BEC, 6 UARTS and ICM42688 gyro. Pairs well with the

F60A 8S 20×20 4in1

.

Specifications

• Model: Mini F722 V4 8S Dual BEC
• Gyro: ICM 42688-P
• CPU: STM32F722RET6
• Power Supply: 4~8S Lipo
• BEC Output: DC5V/3A; 10V/2A
• OSD: BF OSD
• Black Box: 16M Flash Memory
• UART: 6 Sets
• ESC Telemetry: RX4
• Buzzer: YES
• Smart Audio: YES
• LED: 1 Set 2812 LED
• USB: Micro USB
• Firmware: FOXEERF722V4
• Size: 30*31mm
• Mounting Hole: 20X20mm,Φ4mm
• Weight(g): 5.6g
• Working Temperature: -20℃ ~ +55℃
• Working Humidity: 20～95%
• Storage Temperature: -20℃ ~ +70℃

Includes

• 1x Foxeer F722 V4 Mini 4-8S 20×20 Flight Controller

Wiring Diagram
