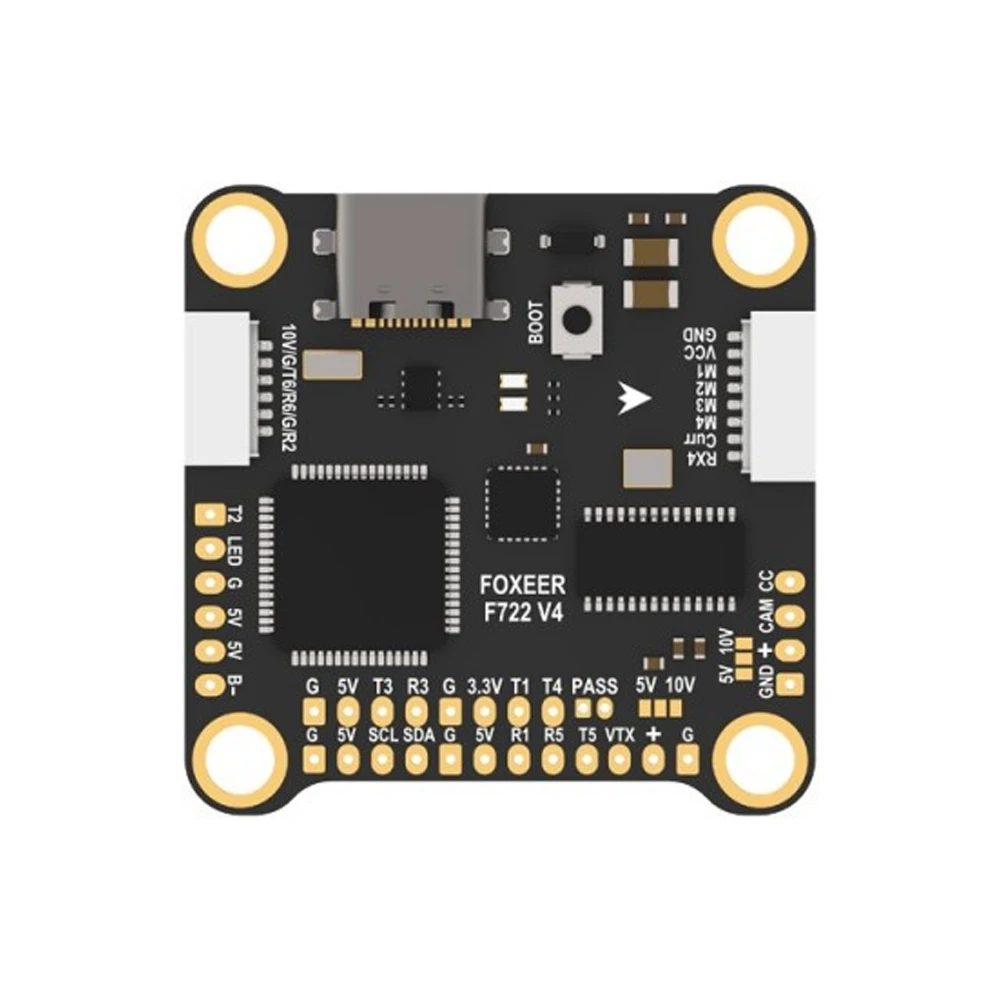

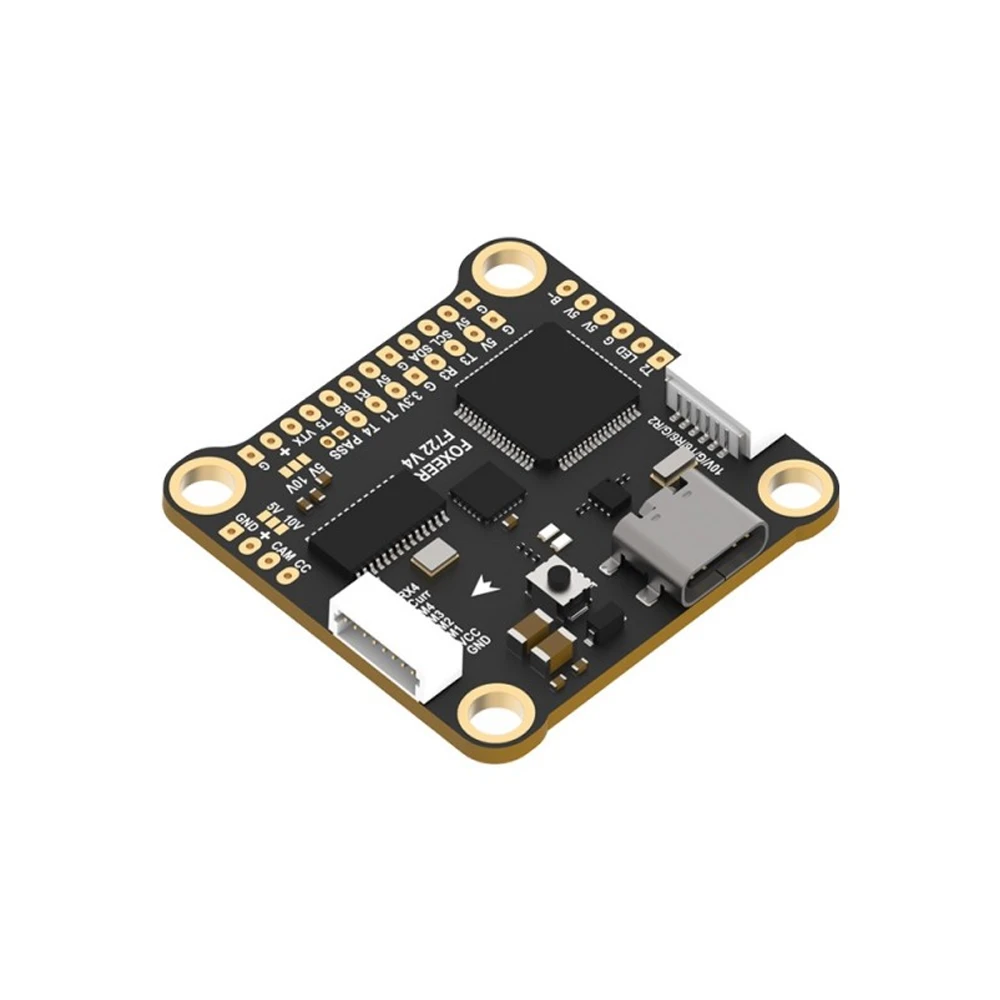

F722 V4 4-8S 30×30 Flight Controller With MPU6000 And Barometer

Foxeer has upgraded their top-shelf FC even further! Now, this absolute beast of a flight controller comes with dual BEDs for even more peripheral usage, as well as a barometer built in!

Specifications

• Processor: STM32F722RET6
• Gyro: MPU6000
• Barometer: DPS310
• Input Voltage: 4~8S Lipo
• Onboard BEC: DC5V/2A; DC10V/2A
• OSD: BF OSD
• Black Box: 16M Flash Memory
• UART: 5 Sets
• ESC Telemetry: Yes
• Buzzer: Yes
• HD Video Connector: Yes
• Smart Audio: Yes
• LEDs: 1 Set 2812 LED
• USB: Type-C
• Firmware: BetaFlight – FOXEERF722V4
• Dimensions: 37x37mm
• Mounting Pattern: 30x30mm
• Weight: 7.7g
• Working temperature: -20℃ ~ +55℃
• Working Humidity: 20～95%

Includes

• 1x F722 V4 F7 4-8S 30×30 FC with Dual BEC and Barometer
• 4X Rubber Spacers
• 1x Cable

Wiring Diagram
