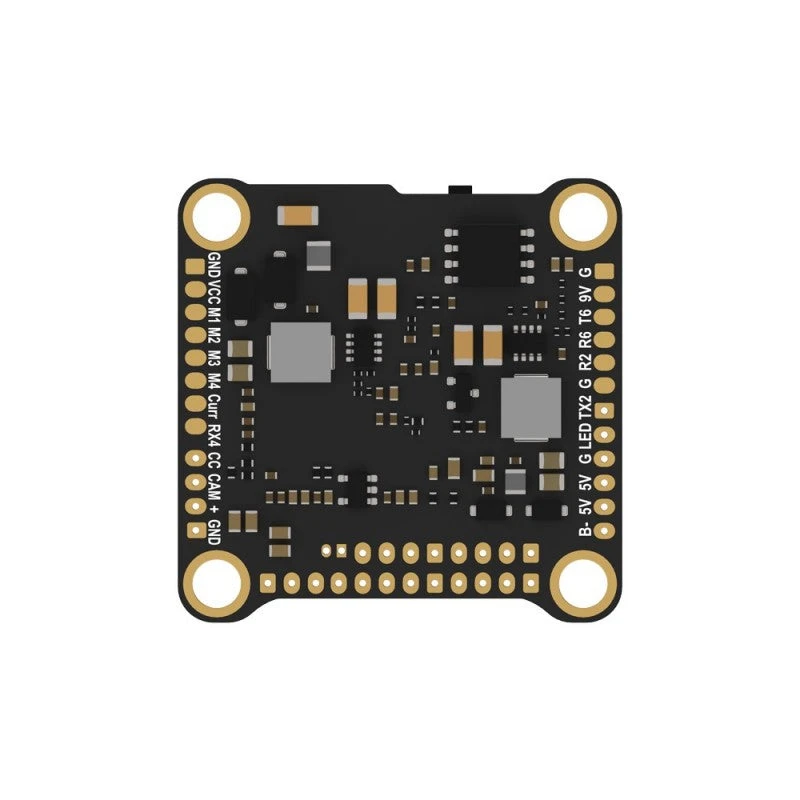

F722 V4 3-6S 30×30 Flight Controller

Foxeers’s V4 F7 FC has a clean layout with some quality components. No more worrying about lifting pads during crashes, this FC has through holes for every solder point.

This is a replacement Flight Controller for The Moxy Pro-Spec Built & Tuned.

Pairs best with the

Foxeer Reaper 128K 65A ESC.

Specifications

• Model: F722 V4
• CPU: STM32F722RET6
• Gyro: ICM-42688
• Power Supply: 3~6S Lipo (11V~30V)
• BEC Output: DC5V/3A; DC9V/3A
• OSD: BF OSD
• Black Box: 16M Flash Memory
• UART: 6 Set
• ESC Telemetry: RX4
• Buzzer: YES
• Smart Audio: YES
• LED: 1 Set 2812 LED
• USB: Type-C
• X8: Supported Need CLI
• Firmware: FOXEERF722V4
• Size: 37X37mm
• Mounting Hole: 30.5X30.5mm,Φ4mm
• Weight: 8g
• Working Temperature: -20℃ ~ +55℃
• Working Humidity: 20～95%
• Storage Temperature: -20℃ ~ +70℃

Includes

• 1x Foxeer F722 V4 Flight Controller
• 4x Silicone Grommets
