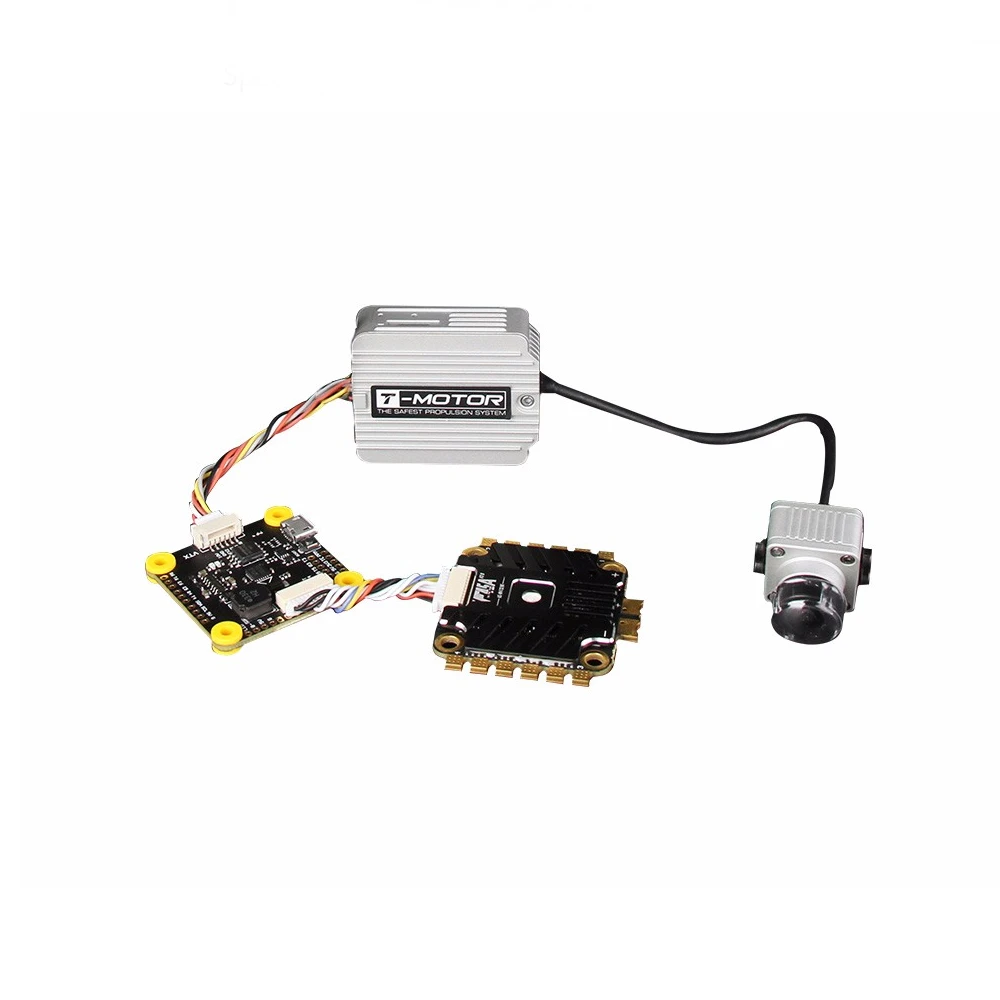

F7 HD+F55A PROII 3-6S 30×30 Stack With F7 FC And 32Bit 55A ESC

Same reliable 55A ESC from T-motor combined with an updated version of F7 Flight controller with 10V output BEC that’s plug and play with the DJI Air Unit!

Specifications

FC

• MCU: STMF722RET6
• Gyro: BMI270
• Memory: 16M
• Input Voltage: 12v-25-2v (3-6S)
• BEC: 5V/2A, 10V 2A
• Dimensions: 37mm x 37mm
• Mounting Holes: 30.5mm x 30.5mm
• Weight: 8.4g
• Firmware Target: TMOTORF7 (Betaflight)

ESC

• Continuous current: 4*55A
• BLHeli_32 32bit
• Burst current: 4*75A
• BEC Output: 10V @2.0A
• Size: 45x41x7.3mm
• Weight: 17.3g (Including Heatsink)
• Support DSHOT150/300/600/1200

Includes

• T-Motor F55A PRO II + F7 HD STACK × 1
• M3×30 Screw × 4
• M3 Non-Slip Nut × 4
• M3×3 White Hollow Isolation Column × 4
• M3×3 White Hollow Isolation Column × 12
• Insulation Sheet × 1
• Electrolytic Capacitor × 1
• Power Cord × 1
• Link Board × 4 (racewire)
• Graph Connection Line × 2
• ESC Cable × 2
