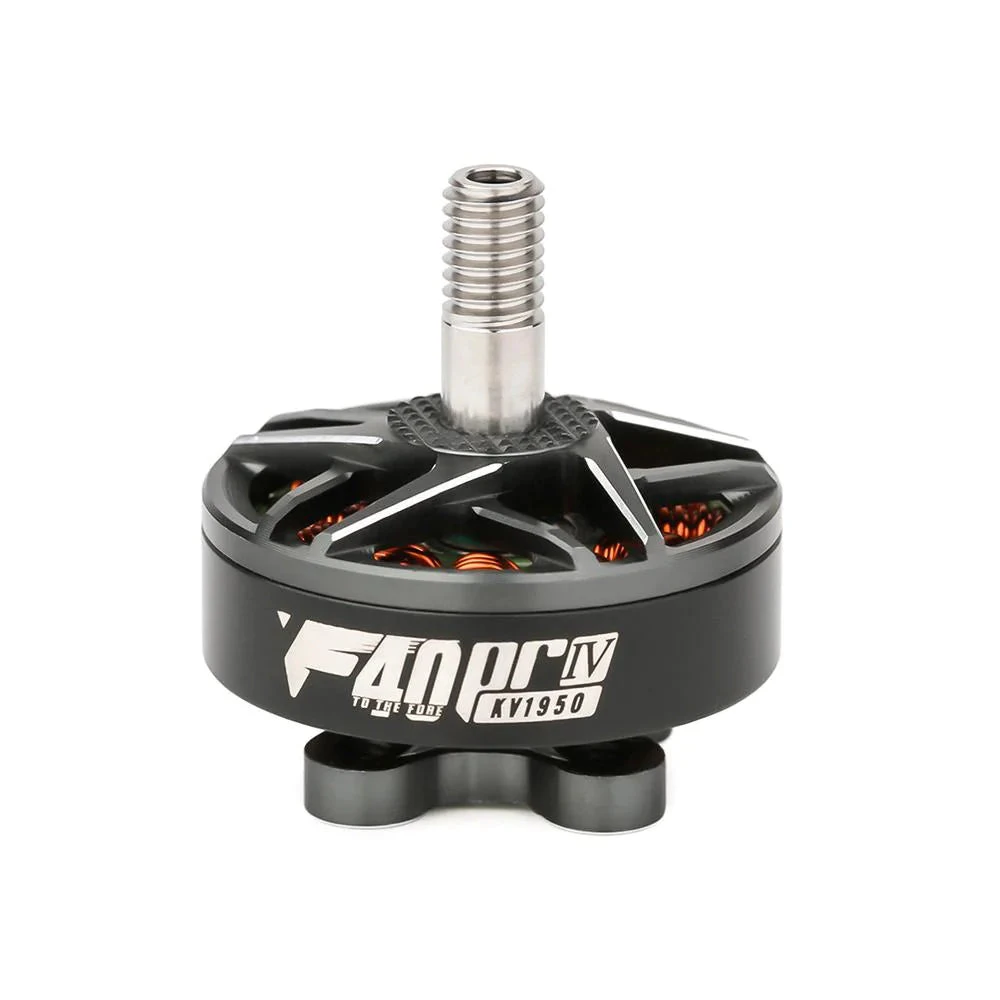

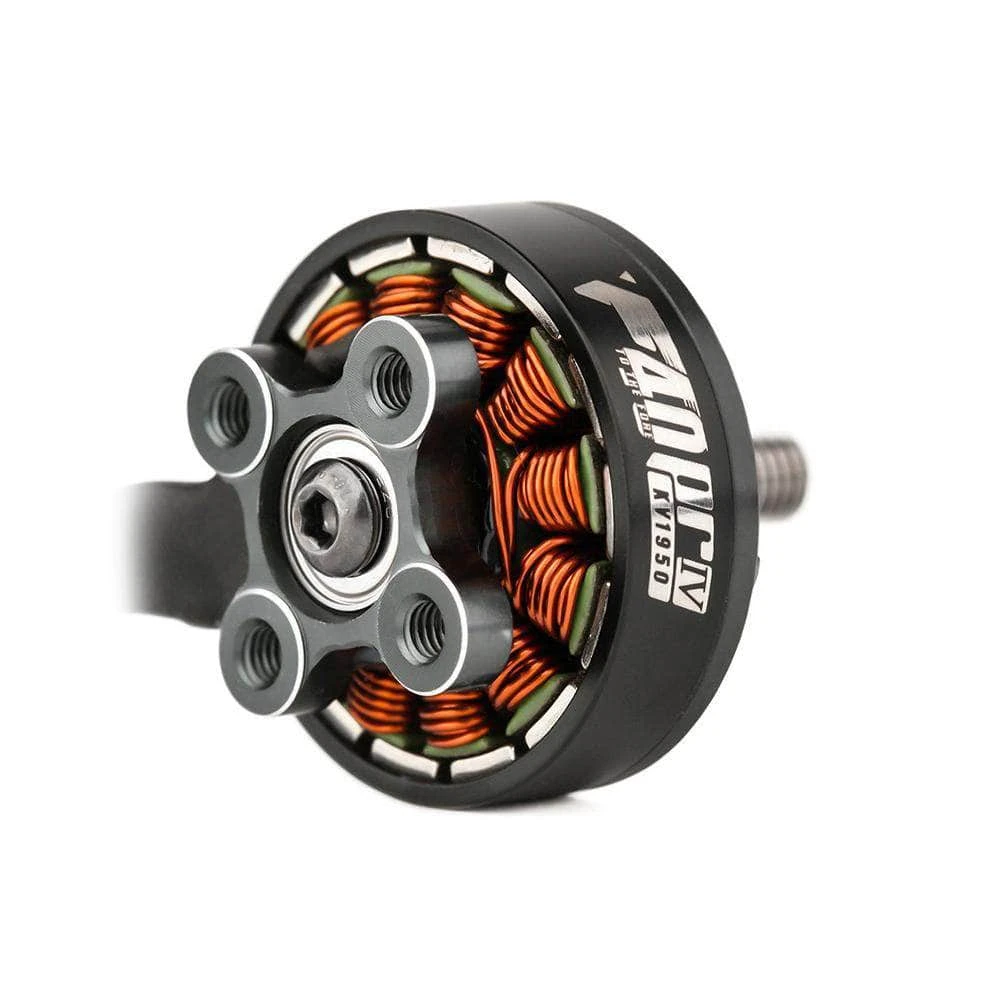

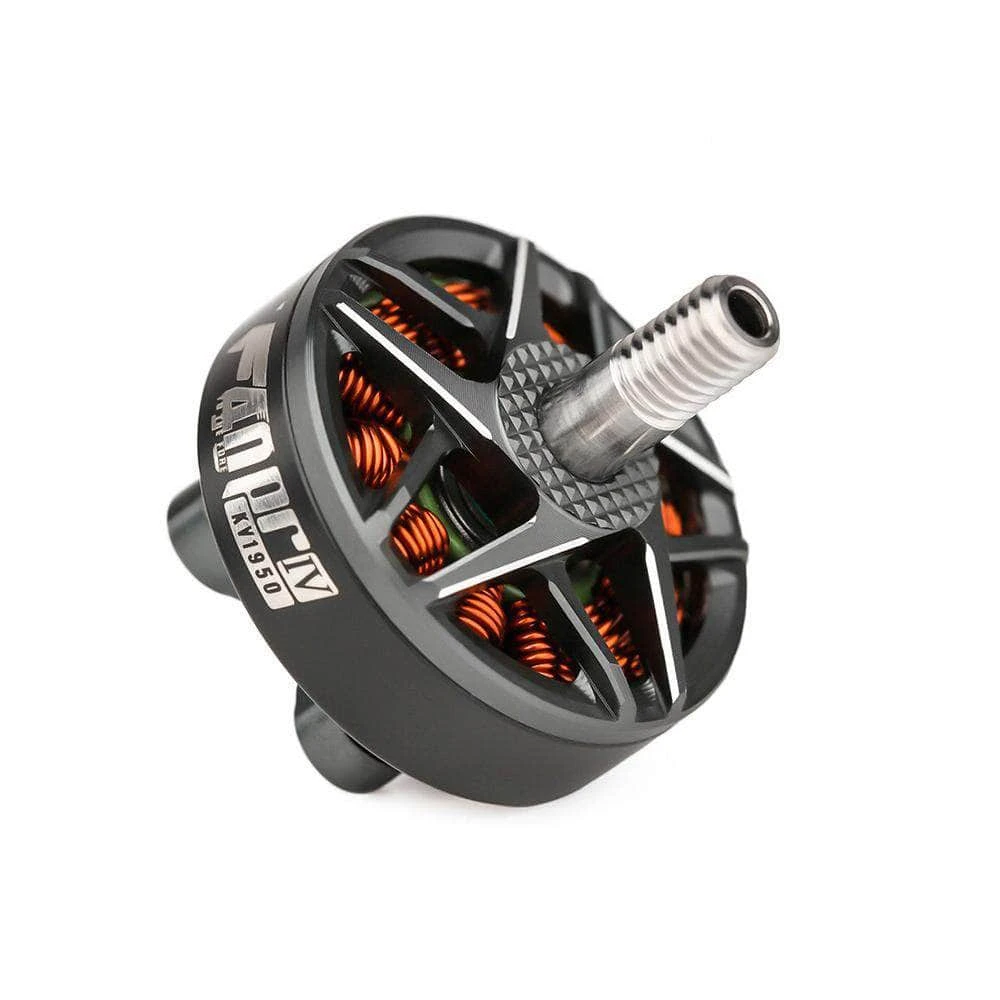

F40 Pro IV 2306 1950KV Motor

The F40 Pro IV continues the lineage of great FPV racing motors by T-Motor. The Pro IV provides more thrust, 9% less weight, and increased durability compared to its predecessor.

Features

• 9% lighter than F40Pro III
• Interlaced rib bell design
• Reduced shaft height
• Customized prop nuts to protect the motor shaft

Specifications

• Kv Rating: 1950Kv
• Motor Dimensions: ɸ27.9×2.98mm
• Wire: 20AWG 150mm length
• Shaft Diameter: 4mm
• Idle Current: 1.3A at 10V
• Max. Power: 1012W (60s maximum)
• Weight: 30.8g (Including cable)
• Internal Resistance: 65Ω
• Configuration: 12N14P
• Rated Voltage: 4-6S LiPo
• Peak Current: 42A (60s maximum)

Includes

• 1x F40 Pro IV 2306 1950KV Motor
