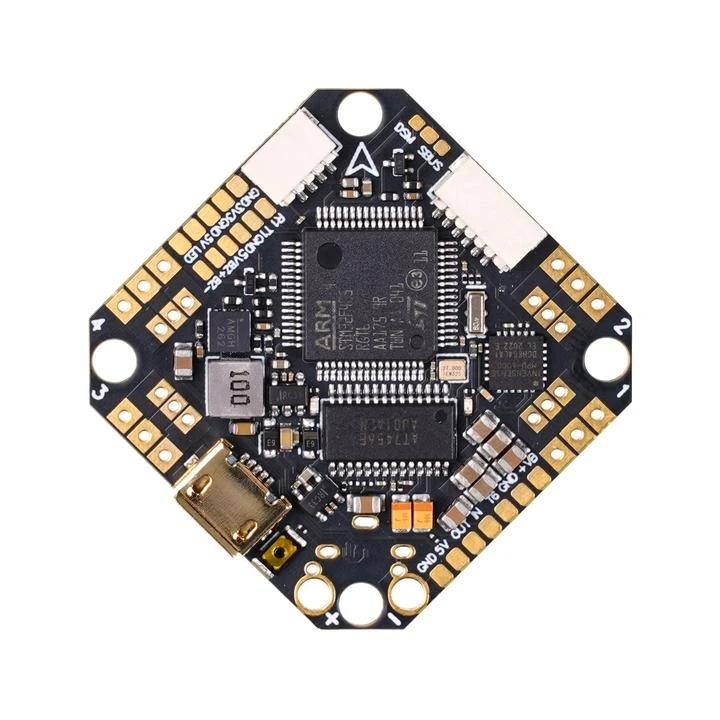

F4 V4 (BMI270) 2-4S 25×25 AIO Flight Controller With 32Bit 20A ESC

The new ultralight Toothpick F405 2-4S AIO 20A FC is finally released! Compared with the V3 version, the new V4 board updates the F411 chip to F405. It can handle 20A of continuous current and up to 4S! Strong performance lets you break through the limits of your quad and explore more possibilities in the flight. Gyro updated to BMI270.



Bullet Point

• Updated the F411 chip to F405, this new 20A AIO board handles a continuous current of 20A and a burst current of 22A, bringing pilots a more stable flight.
• BETAFPV 12A/20A AIO flight controller reserves the same UART ports layout, UART3 for Rx, UART4 for DJI, UART6 for SmartAudio and the Spare UART1, more convenient for pilots to solder.
• Come with 2 integrated Plug & Play Ports for both digital VTX and Rx, less solder work needed, easy to install.

Comparison of Toothpick 12A AIO FC, Toothpick 20A AIO FC and Toothpick F405 20A AIO FC V4

Specifications of FC

• CPU: STM32F405RGT6
• Six-Axis: BMI270
• Size: 26mm x 26mm, whoop mounting pattern
• Firmware version: Batefight-BETAFPV405-4.2.X
• OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)

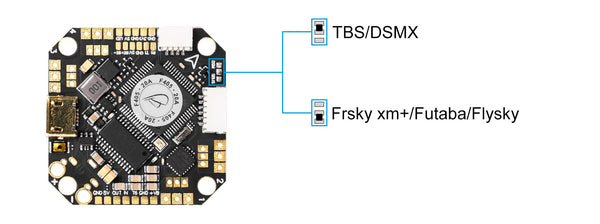

• Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver/DSMX Receiver
• Connecter: XT30, it also can be changed to XT60 if pilots needs.

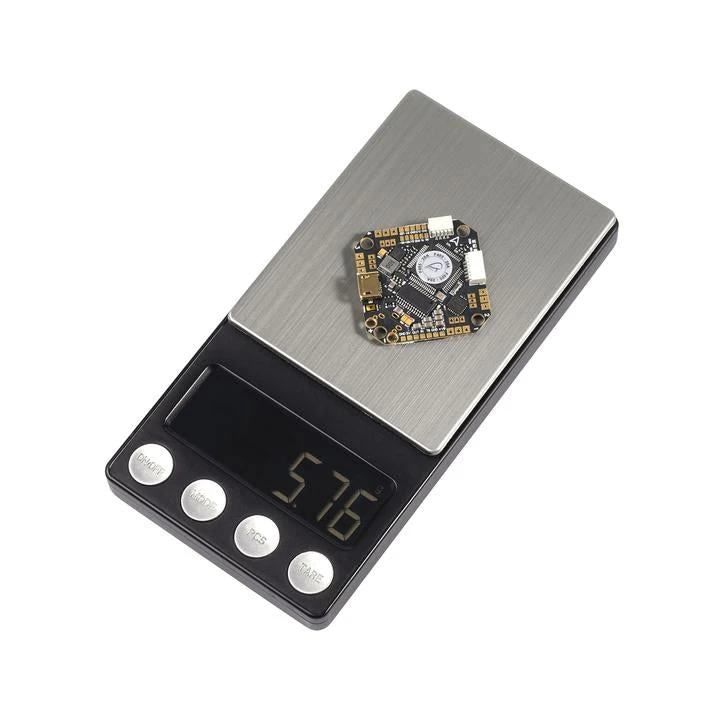

• Weight: 5.76g

Specifications of ESC

• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300，Dshot600
• Input voltage: 2S-4S Lipo
• Continuous current: 20A
• Peak current: 22A
• Firmware: BLHELI-32

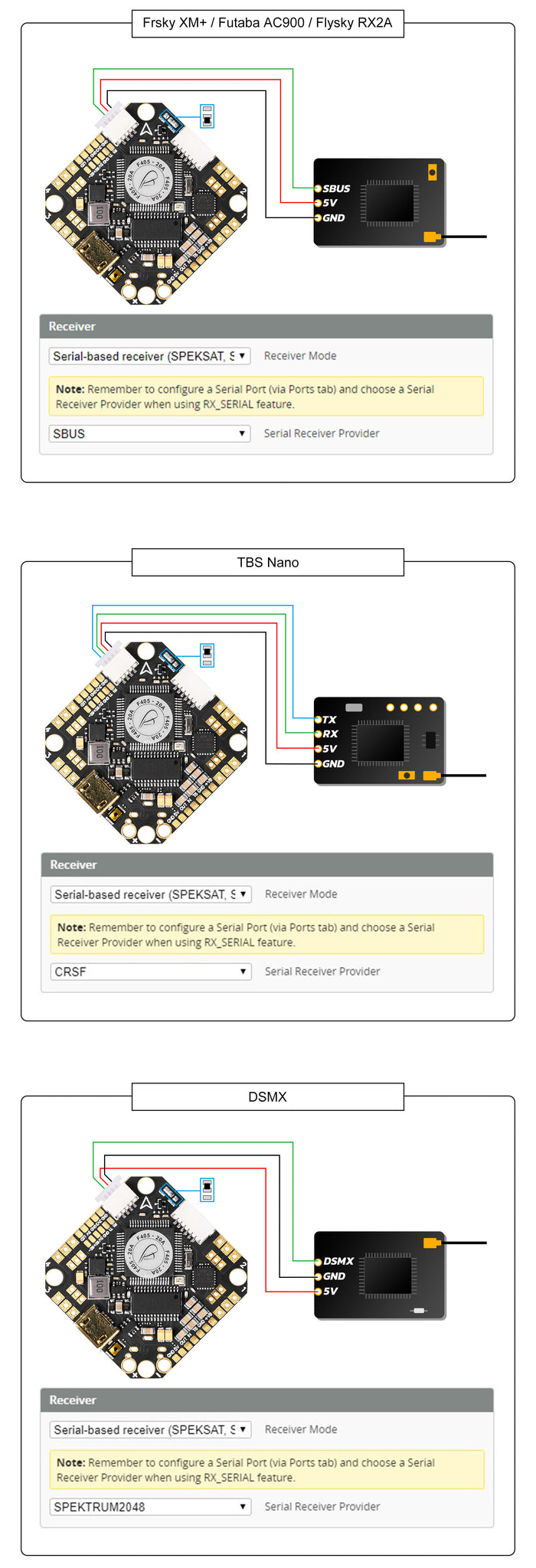

Wiring diagram

Package

• 1 * Toothpick F405 20A AIO FC V4
• 1 * Cable Pigtail (XT30)
• 4 * M2x10mm screws
• 4 * M2 nuts
• 4 * Anti-vibration rubber dampers
• 4 * Motor Pluggable Pins
• 1 * 6-Pin Connector for Digital VTX
• 1 * 4-Pin Connector for Rx

Wiring Diagram
