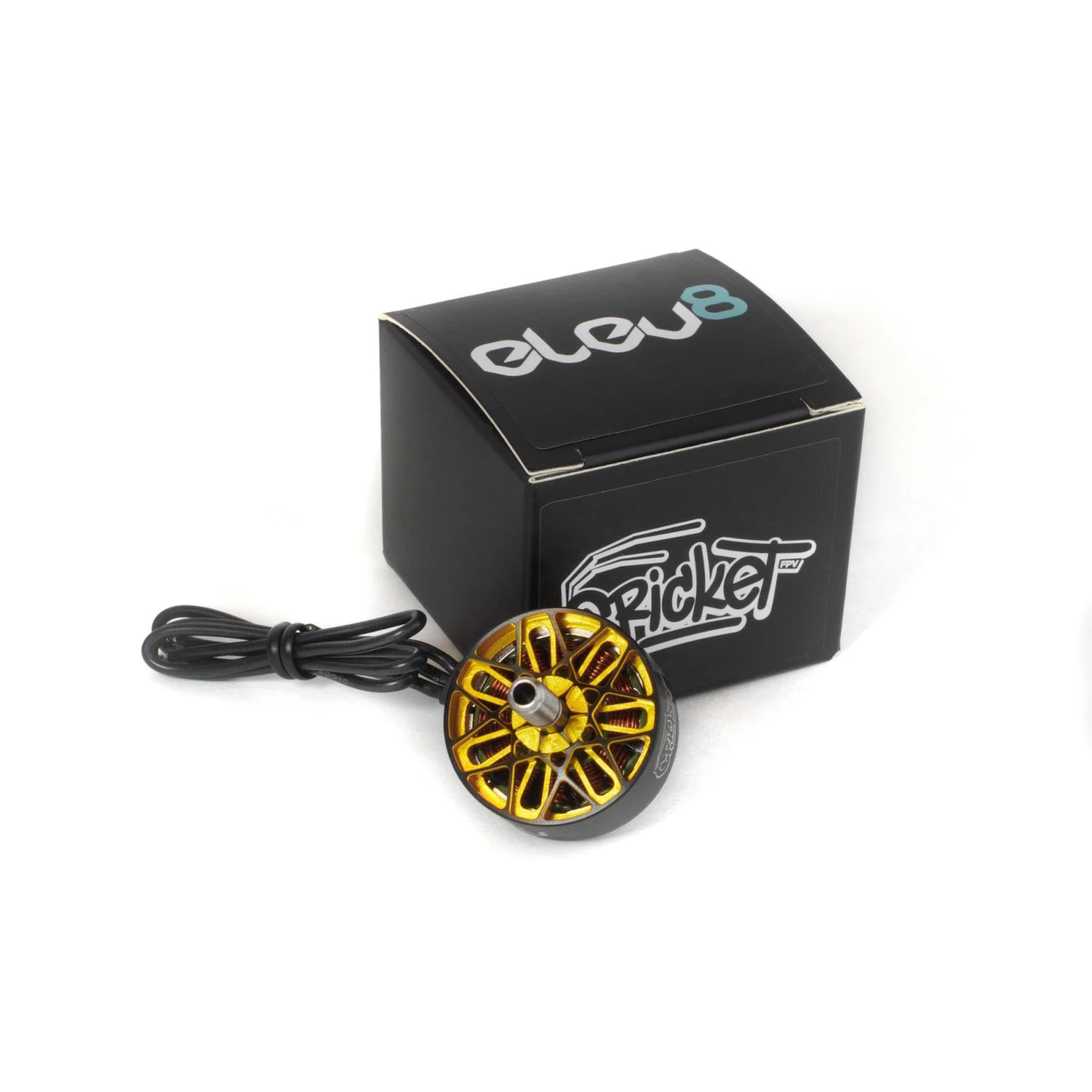

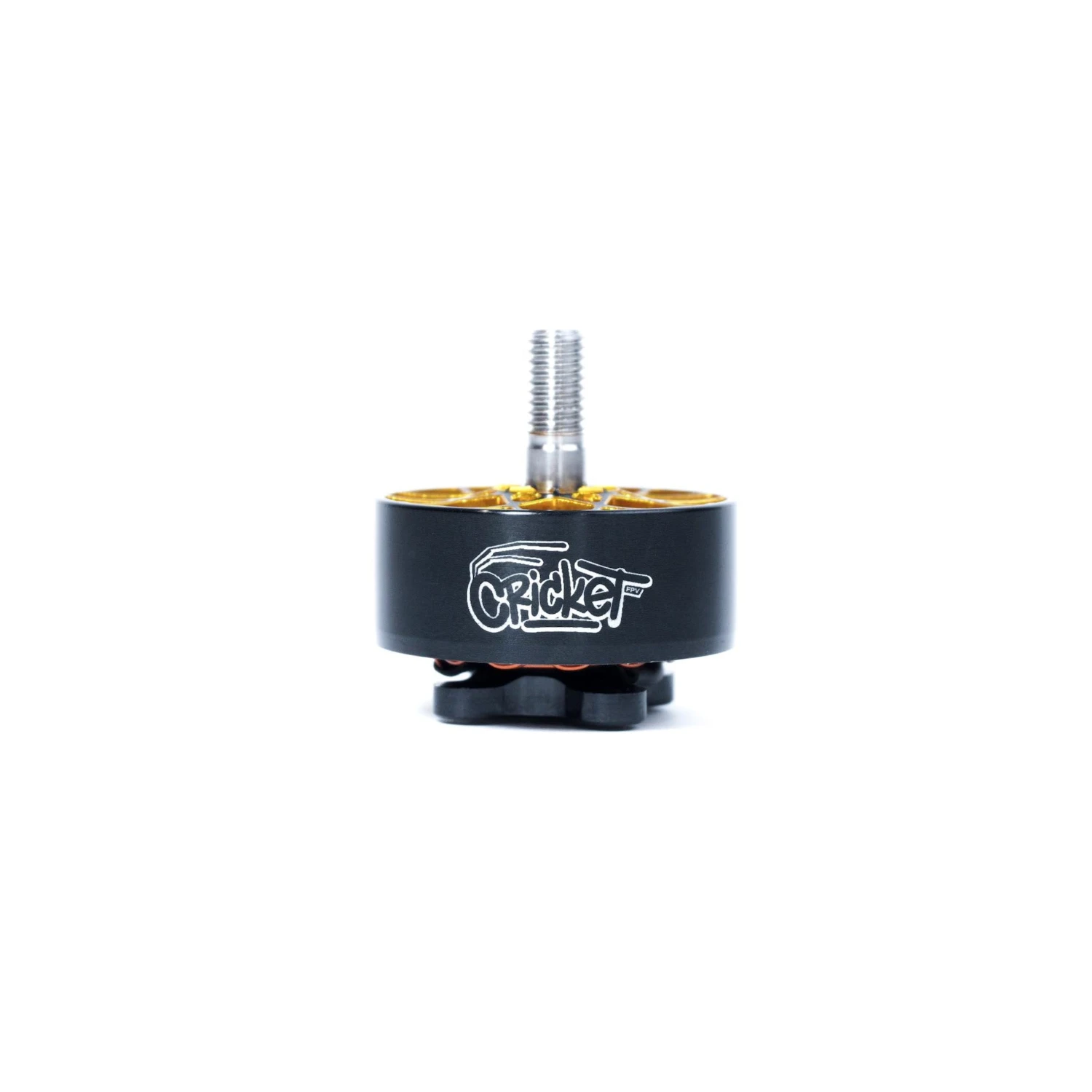

Cricket 2306.5 1750kv Motor

They’re finally here! We’re proud to introduce you to this absolutely stunning creation. Designed by Rotor Riot Pilot, Corey Tapp aka “CricketFPV”

What catches the eye first is the beautiful craftsmanship and design of the motor’s bell. The beautiful gold and black bell stand out from the crowd, giving your quads a luxurious feel to them. Besides, the bell is made from 7075-T6 aluminum alloy, which offers a great balance between weight savings and durability. Plus, the stellar performance of the premium grade ISC bearings helps ensure vibration-free footage of your epic flights!

Now let’s talk performance. At 1750KV, the low and mid throttle control on these motors is just nuts, with heaps of steady and responsive power. And the upper end will leave you pleasantly surprised, as they still have plenty of pop and a fairly quick response when you crank the throttle! The 2306.5 stator is of course becoming the standard for the industry, as it offers a good balance between smoothness and power. However, where some manufacturers stick to cheaper flat magnets, we went with N52H curved magnets. This means that the air gap between the magnets and stator is smaller, squeezing out every last drop of power that the motors can give! And thanks to the thicker than usual windings on these new motors you can enjoy that extra oomph for longer, and your motors will stay cool!

You’ll be pleased to learn that this motor can take anything from 4S to 6S voltages, which means that YOU get to choose whether you want a slow, chill flight or a blow-your-socks-off experience! This isn’t one of those super lightweight motors that sacrifice all the durability just to shave off a couple grams. But at 34.8 grams, it’s not a heavy motor either. And that’s the weight with the wires – cause you kinda need the wires, you know? And by the way, the shaft is another place where some manufacturers sacrifice durability for weight savings. But not here – the Cricket motor shaft is now made from TC4 titanium alloy, which is the perfect compromise between weight savings and crash resistance!

Specifications

• Model: ELEV8 CRICKET
• Weight: 34.8 grams including full-length wire
• KV: 1750KV
• Stator Diameter: 23 mm
• Stator Height: 6.5 mm
• Propeller Shaft Material: TC4 titanium alloy
• Wires: 150 mm 20AWG Silicone Sheath
• Bell Material: 7075-T6 Aluminum
• Magnets: N52H ARC Curved Magnets
• Mounting Screw Pattern: 16 x 16 mm
• Input Voltage: 3-6S
• Bearings: ISC 4x9x4mm 684ZZ

Includes

• 1x Elev8 Cricket 2306.5 1750kv Motor
• 4x M3 8mm Screws
• 4x M3 10mm Screws
