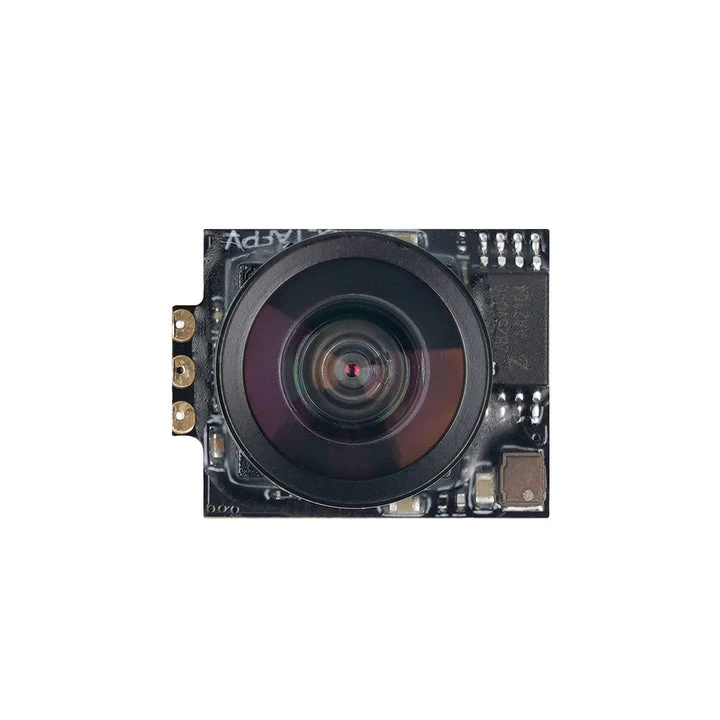

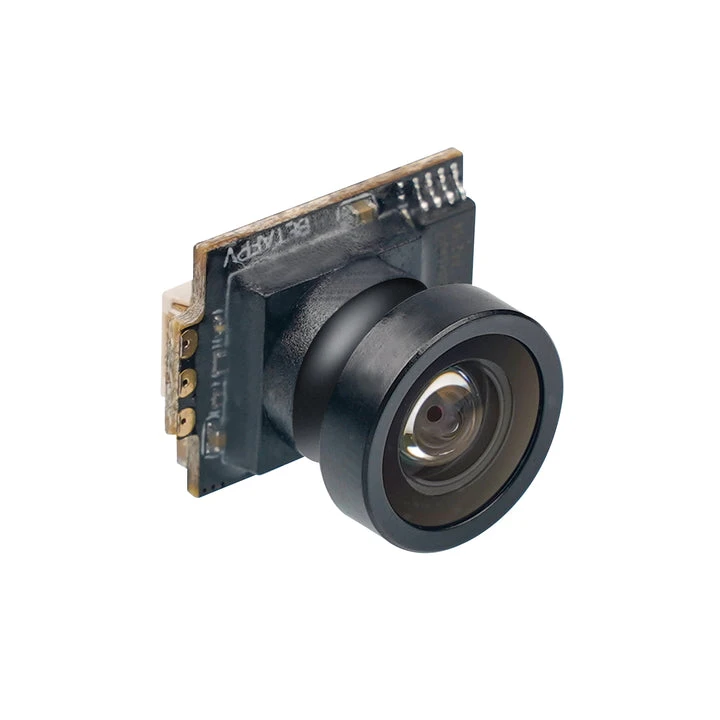

C02 FPV Micro Camera With Canopy

Replacement camera for

Cetus

and

Cetus Pro

. Featuring a 1/4” CMOS sensor, 2.1mm lens for 1200TVL resolution and excellent latency while minimizing the weight to 1.4g. Includes a molded canopy for use with Meteor65, Beta65S, Beta85 Pro2, HX100SE and DIY builds.

Features

• Miniature, and lightweight design, weight at only 1.4g. Best match with 5.8G A01 VTX on micro whoop drone.
• 1200TVL resolution and 1/4″ CMOS sensor ensure a high-quality and clear image
• Global WDR camera, 16:9 aspect ratio, shoot clear dynamic image even in low light condition
• 2.1mm lens, FOV 160° beyond the wide-angle for recording more wide and beautiful scenes

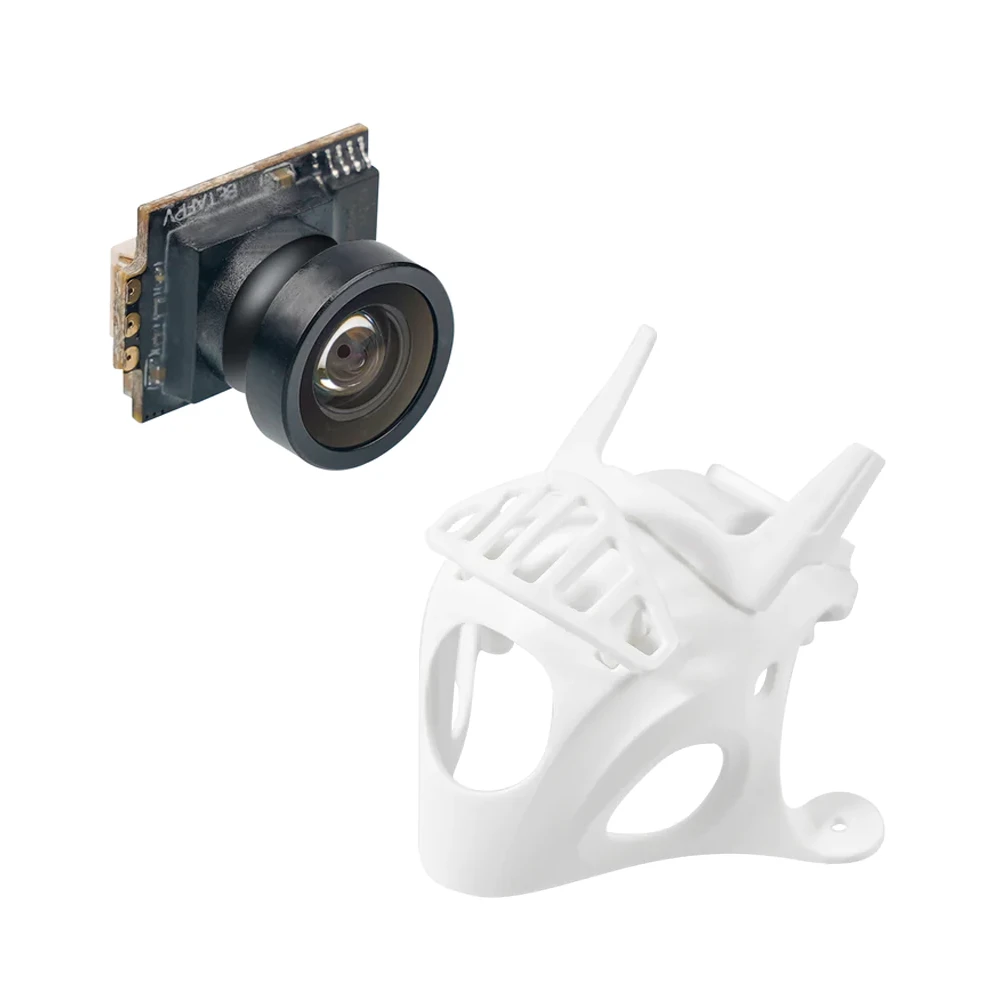

• The package comes with an injection molding canopy, more durable, which is the best combo with C02 camera

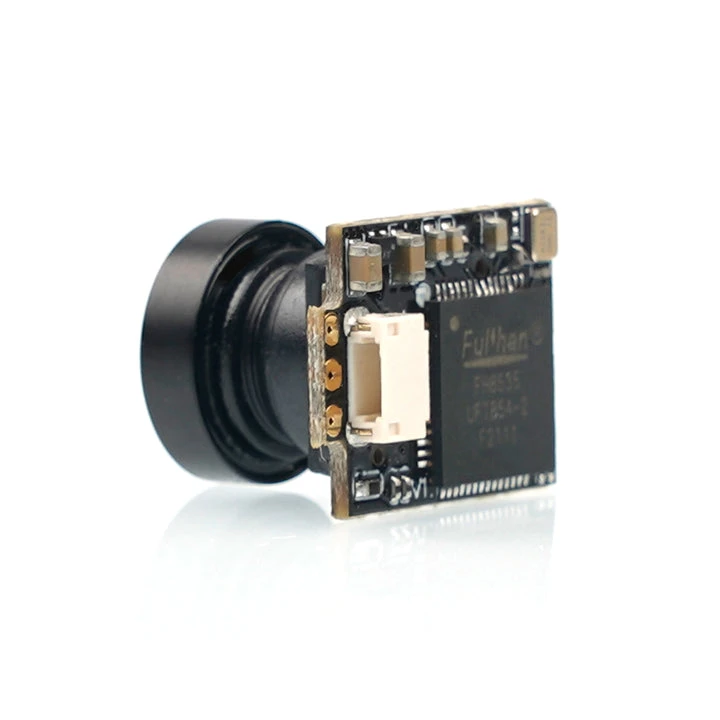

• C02 camera features a JST-0.8 connector, special design in plug-and-play, makes it easy to install without soldering. Suitable for Cetus seris drones, BETAFPV F4 1S AIO FC, BETAFPV M03 VTX, and NBD BeeBrain flight controllers.

Specification

• Item: C02 Camera
• Image Sensor: 1/4″ CMOS Sensor
• Horizontal: 1200TVL with Global WDR
• Signal System: NTSC
• Lens : 2.1mm(M8) FOV 160°
• S/N Ratio: >50db
• Electronic Shutter Speed: Auto
• Auto Gain Control (AGC): Auto
• Min. Illumination: [email protected]
• D-WDR: Auto
• Day/Night: Color
• Power: DC 3-5.5V
• Current: 110mA@5V / [email protected]
• Housing Material: ABS

• Dimension: 13*11mm

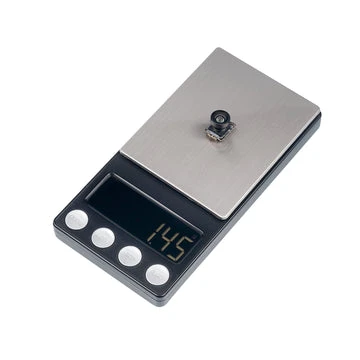

• Net weight: 1.4g

Includes

• 1x C02 FPV Micro Camera
• 1x Injection Molded Canopy
• 1x 1/4” Camera Mounting hardware
