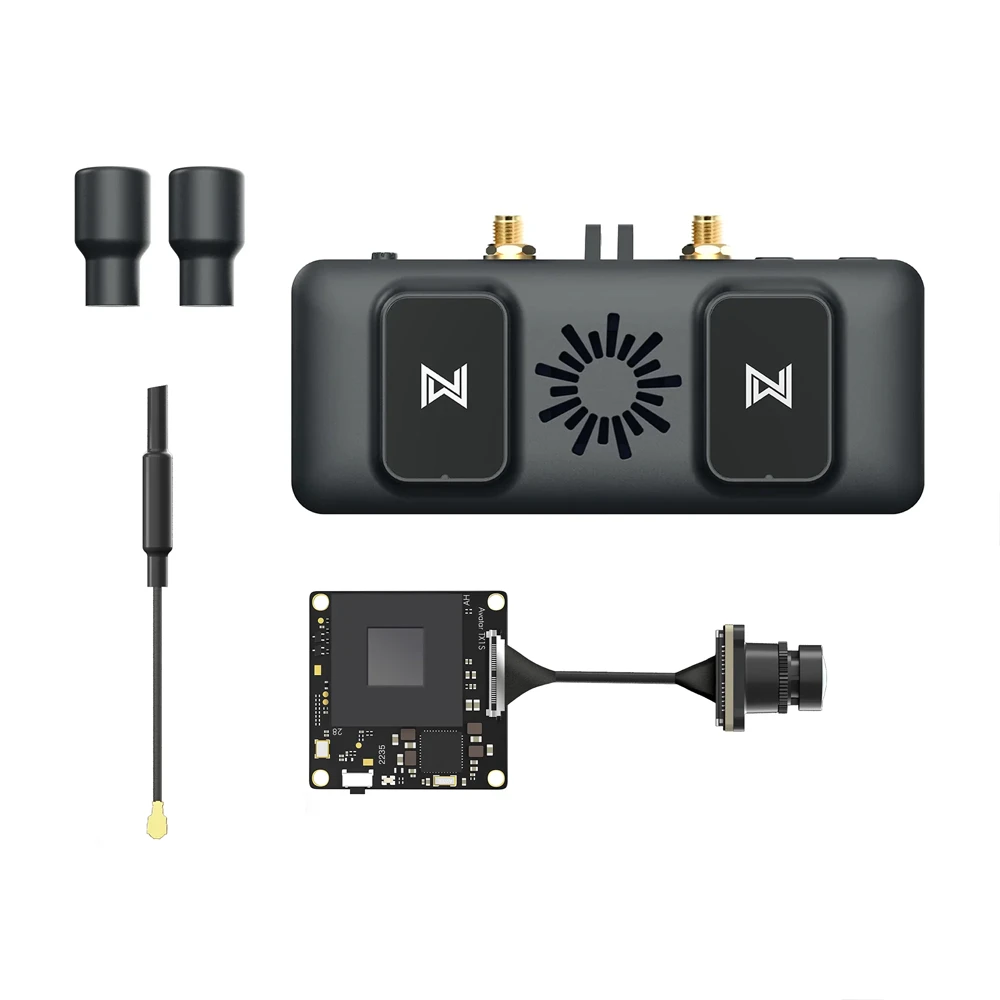

Avatar HD VRX Kit For Avatar HD Video System – Choose Version

HDMI output ensures you enjoy uncompressed audio and video signals from the Walksnail HD system

Canvas Mode
Supports Betaflight, INAV, and KISS with full OSD.
You can easily adjust the parameters you want by remote control.

Specification

Camera:

Model Avatar nano/Avatar camera
Image Sensor: 1/2.7”1nch
Resolution: 1080P/60fps,720P/120fps,720P/60fps
Ratio: 16/9 4/3
Lens: 2.1mm
FOV: 170°
Aperture: F2.0
Shutter: Rolling shutter
Min.Illumination: 0.001Lux
Weight: 3.5g/6g
Dimensions: 14x14x17mm/19x19x22mm
Coaxial Cable: 90mm/140mm

VTX:

Model Avatar module
Communication Frequency: 5.725-5.850GHz
Transmitter Power: (EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;
MIC: <25dBm
I/O Interface: JST1.0x6 (Power in) JST1.0x4(USB)
Mounting Holes: 25.5×25.5mm
Dimensions 33x33x9.5mm
Storage: 8GB
Recording: 1080p/720p
Weight: 16g
Operating Temperature: -20-40℃
Channels: 8
Wide Power Input: 6V-25.2V
Supported FC System Betaflight
OSD Canvas mode
Latency Average Delay: 22ms
Antenna: 2x (IPEX)
Goggles Antenna
Model: Red bird
Polarization: LHCP
Bandwidth: 5.6GHz-6.0GHZ
Average Gain: 1.9dBi
Radiation Efficiency: ≥97%
VSWR: ≤1.3
Cross-Polar Rejection: -15to-30dB
Connector: RP-SMA
Dimension: H24.8mm x R15.3mm
Weight: 4.2g

Avatar HD VRX

Model Avatar HD VRX
CommunicationFrequency: 5.725-5.850GHz
TransmitterPower: (EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm
I/O Interface: HDMI, micro SD card slot, DC5.5×2.1mm
HDMI output: 1080p/60fps, 720p/100fps, 720p/60fps
Power Input: 7-21V(2S-5S)
SD Card Support:256G
System: Avatar HD system

Includes:

Avatar VRX:
RedBirdAntenna x2
HDMI cable x1
2-in-1 DCPowerCable x1

Avatar HD KIT:
4 Pin USB Cable x1
6 Pin Power Cable x1
M2x3/4/5mm Screws x4
M1.2×1.5mm Screws x2

Avatar HD Nano KIT:
4 Pin USB Cable x1
6 Pin Power Cable x1
M2x3/4/5mm Screws x2
M1.2×1.5mm Screws x2
14-19mm Bracket x1

Avatar Mini 1S KIT:
4 Pin USB Cable x1
6 Pin Power Cable x1
M2x3/4mm Screws x2
M2x16mm Screws x4
M2 Screw nut x4
2.1×3.4x1mm Gasket x5
