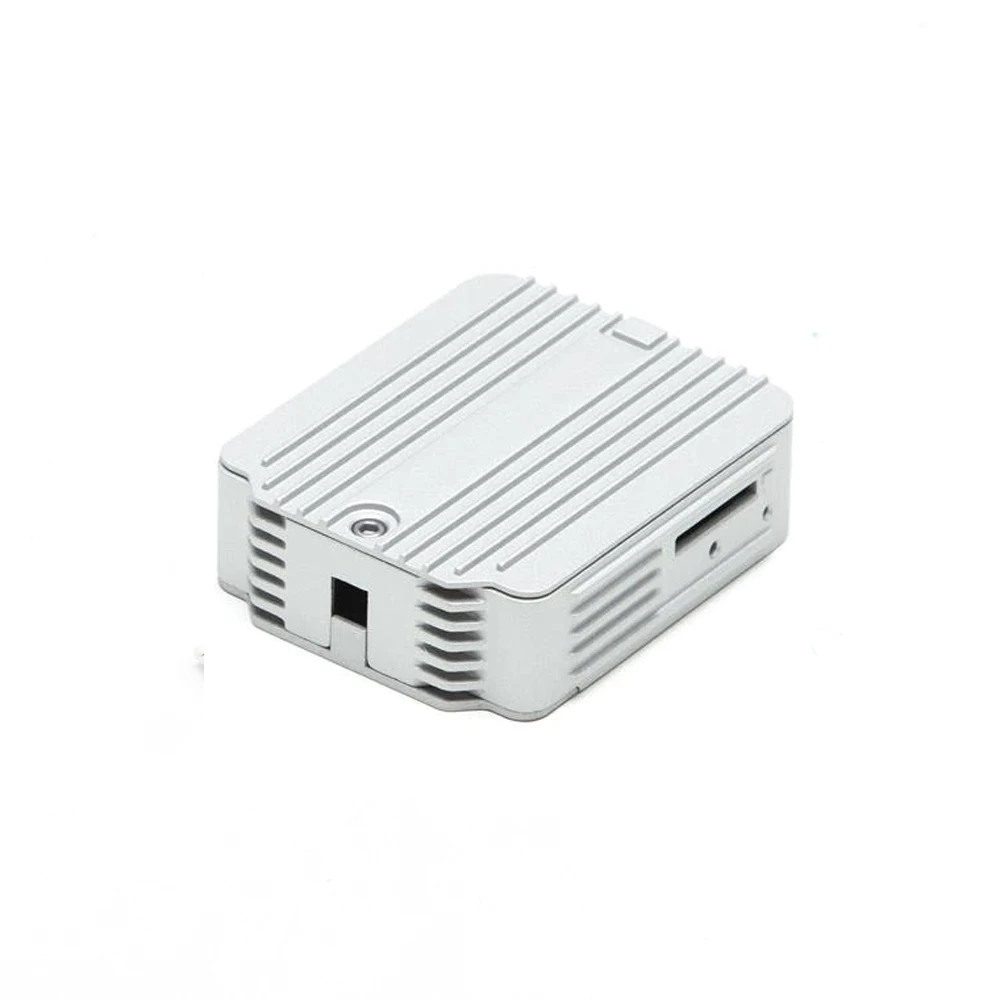

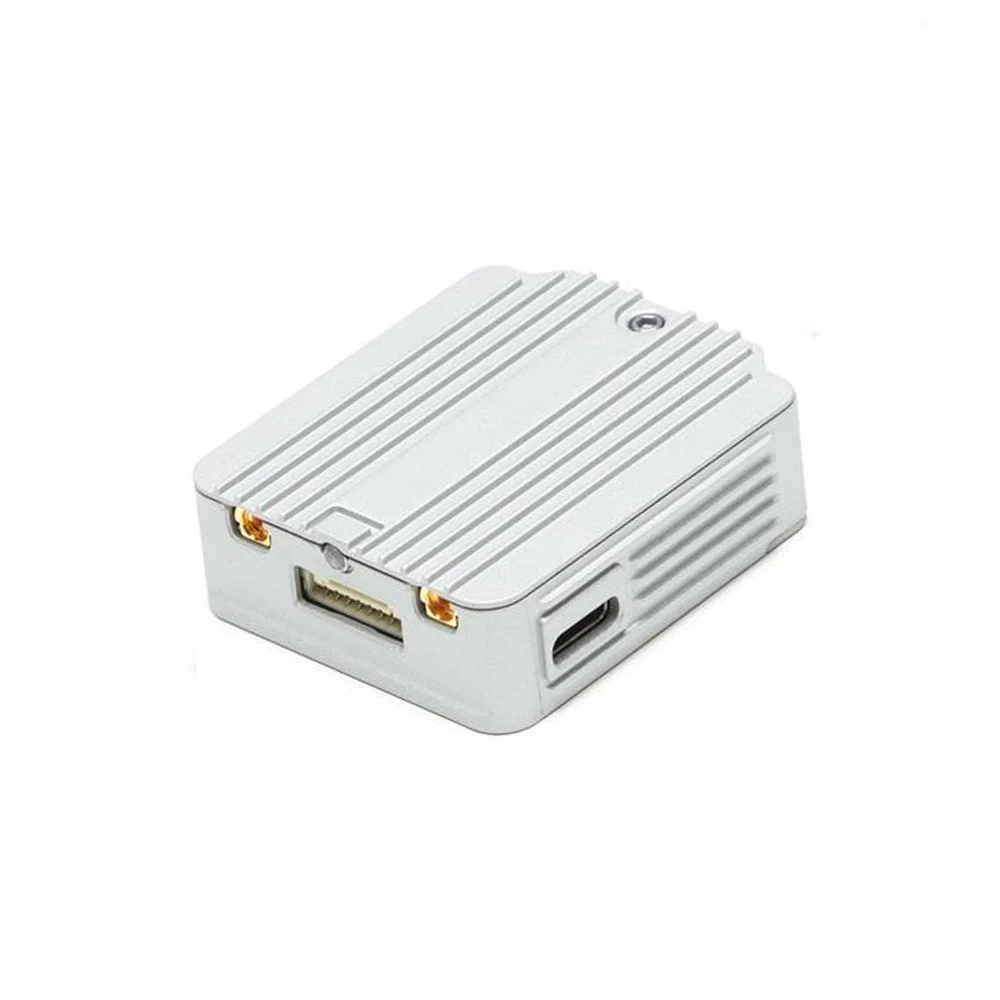

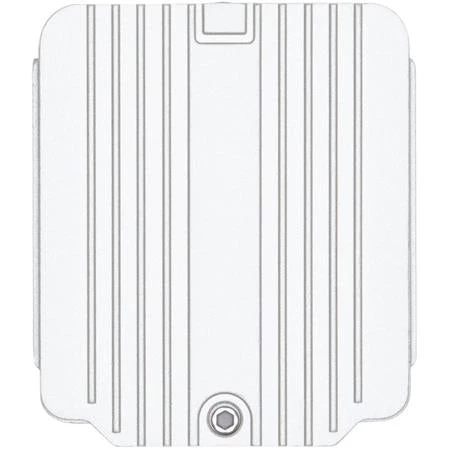

Air Unit VTX Without Camera For DJI HD Video System

This is a replacement VTX module for the

DJI air unit system

. If your camera is in good working condition but you have connection issues this is the perfect item for you.

Check out all our DJI FPV gear!

Features

Air Unit

• 1080p 60fps / 720p 120fps DVR
• Powerful DJI HDL FPV Transmission System
• Embedded RC Receiver
• Multi-Antenna Technology
• Durable Aluminum Housing
• Maximum 8 Channels

Specifications

• Input Power 7.4-17.6 V, about 4-9 W
• Operating Frequency: 5.725-5.850 GHz
• Transmitter Power (EIRP) FCC/SRRC: <30 dBm;
• CE: <14 dBm
• Min. Latency (end-to-end) Low Latency Mode (720p/120fps): <28 ms
• High Quality Mode (720p/60fps): <40 ms
• Max. Transmission Distance FCC/SRRC: <4 km; CE: <0.7 km
• Video Format MP4 (Video format: H.264; Audio format: ACC-LC)
• I/O Interface USB-C, MMCX, 3-in-1 port, microSD card slot
• Supported Flight Control System F3, F4, F7
• Operating Temperature Range 32°to 104°F (0° to 40°C)
• Weight: Air Unit (Camera included): 45.8 g
• Air Unit Dimensions: 44×37.8×14.4mm

Channels Info FCC

• Channels: 8
• Channel 1: 5660
• Channel 2: 5695
• Channel 3: 5735
• Channel 4: 5770
• Channel 5: 5805
• Channel 6: 5878
• Channel 7: 5914
• Channel 8: 5839

CE/SRRC

• Channel 1: 5735
• Channel 2: 5770
• Channel 3: 5805
• Channel 8: 5839

MIC

• Channel 1: 5660
• Channel 2: 5700
• Channel 8: 5745

Includes

• 1x Air Unit Module
• 1x Air Unit 3in1 Cable

This camera system requires DJI FPV Goggles. It does not require the DJI FPV Remote Controller.

The airborne side of the DJI FPV System is no less incredible than

the goggles it’s designed for

. There is an impressive amount of technology crammed into this rugged aluminum housing. This unit is not only your FPV/HD Camera, 1080p 60fps / 720p 120fps DVR and Digital VTX in one, but if you combine it with the

DJI FPV Remote Controller

, it’s also your RC receiver, with a 4 KM range! You’re still welcome to use your trusy old RC Transmitter and RX with the DJI FPV System, but the DJI FPV Remote Controller ties the whole system together very perfectly, allowing users to remotely set parameters of the DJI FPV Goggles, the DJI Air Unit, and the DJI FPV Camera.

Check out our

Support Center

 for tutorials, instant answers to your questions, and more useful articles!

Make sure you fully understand and abide by local laws and regulations before using this product.

An amateur radio license is needed in FCC regions when using channels 1, 2, 6, or 7, as they are amateur frequency bands. Users who use the amateur frequency bands with a modified or cracked version or without a license may be punished for breaking local laws or regulations.

DOWNLOAD THE LATEST FIRMWARE HERE

We carry the entire

DJI FPV System product line

, as well as spare replacement parts!
